Turn Signal Switch: Testing and Inspection





LIGHT SWITCH INSPECTION

Vehicles Without Auto Light System

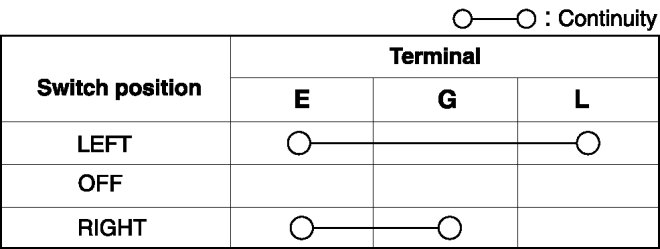

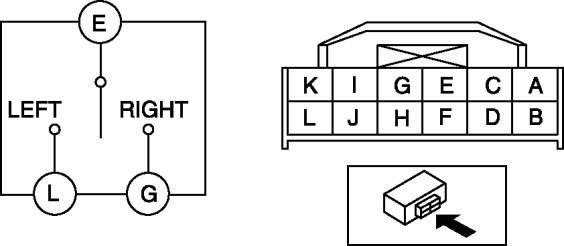

Turn Switch











Vehicles With Auto Light System

Turn Switch
