Driver-side Air Bag Module

WARNING:
  • The driver-side air bag module is a dual inflator type. If one inflator is forced to operate (deploy), the other may operate (deploy) accidentally. To prevent injury while disposing of the air bag module, make sure to operate (deploy) both driver-side air bag module inflators simultaneously, following the procedure below.
  1. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
  2. Install the bolts to the driver-side air bag module as shown in the figure, and connect the SST (Adapter harness)  .

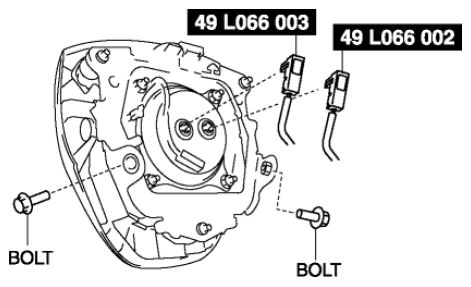

    Fig 1: Connecting SST (Adapter Harness) To Driver-Side Air Bag Module
    G08152465
  3. Place the driver-side air bag module on the center of the tire wheel with the padded surface facing up. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm 2  {0.002 in 2  } or more  ) through the wheel and the bolt installation holes of the air bag module at least 4 times  .

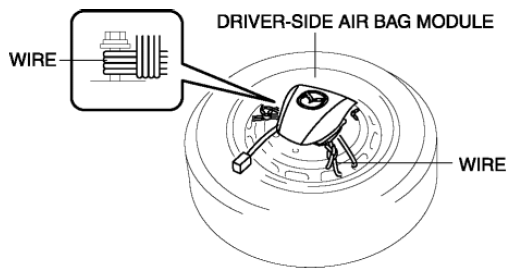

    Fig 2: Placing Driver-Side Air Bag Module On Center Of Tire Wheel With Padded Surface Facing Up
    G08152466
    WARNING:
    • If the air bag module is not properly installed to the tire wheel, serious injury may occur when the module is operated (deployed). When installing the air bag module to the tire wheel, make sure the padded surface is facing up.
  4. Stack three tires without wheels on top of the tire with the driver-side air bag module, and then stack another tire with a wheel on the very top.

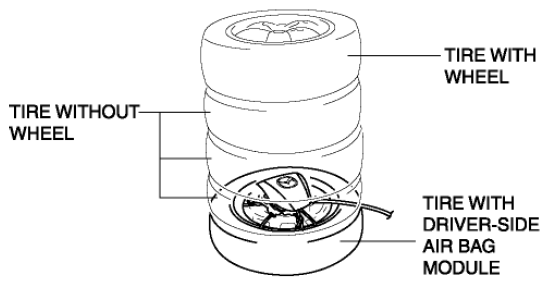

    Fig 3: Identifying Tire With Driver-Side Air Bag Module, Tire With And Without Wheel
    G08152467
  5. Secure the tires with wire.
    Fig 4: Securing Tires With Wire
    G08152468
  6. Connect the SST (Deployment tool)  to the SST (Adapter harness)  .
    Fig 5: Connecting SST (Deployment Tool) To SST (Adapter Harness)
    G08152469
  7. Connect the SST (Deployment tool)  to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  8. Verify that the red lamp on the SST (Deployment tool)  is illuminated.
  9. Verify that all persons are standing at least 6 m {20 ft}  away from the vehicle.
  10. Press the activation switch on the SST (Deployment tool)  to operate (deploy) the air bag module.
    Fig 6: Identifying Activation Switch On SST (Deployment Tool)
    G08152470
    WARNING:
    • Verify that air bag module operation (explosive) sound occurs twice. If no operation (explosive) sound was heard or a single operation (explosive) sound was heard, both inflators would not have operated (deployed) properly. This may cause serious injury if the air bag module operates (deploy) unexpectedly. If the two operation (explosive) sounds are not heard, perform Step 10 again. If a total of two operation (explosive) sounds cannot be verified even though Step 10 is performed again, leave the air bag module alone for 30 min or more before approaching it again.
    • The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.
  11. Disconnect the SST (Deployment tool)  from the SST (Adapter harness)  .
