Steering Gear And Linkage Assembly: Notes

CAUTION:
  • To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.
  1. Assemble in the order indicated in the table.

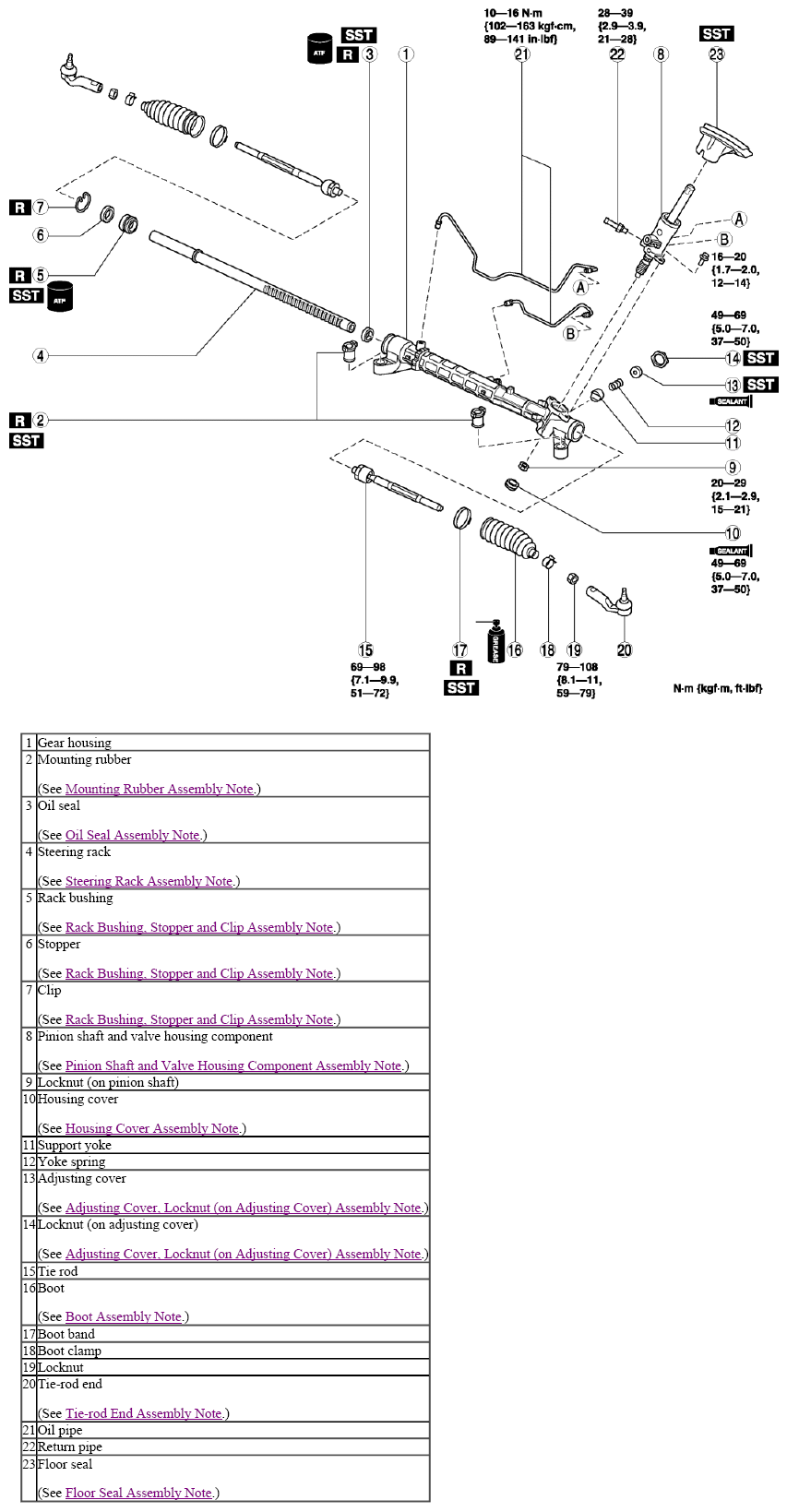

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
G08152214
