Front Door Trim Disassembly/Assembly: Driver-side

  1. Disassemble in the order shown in the figure.

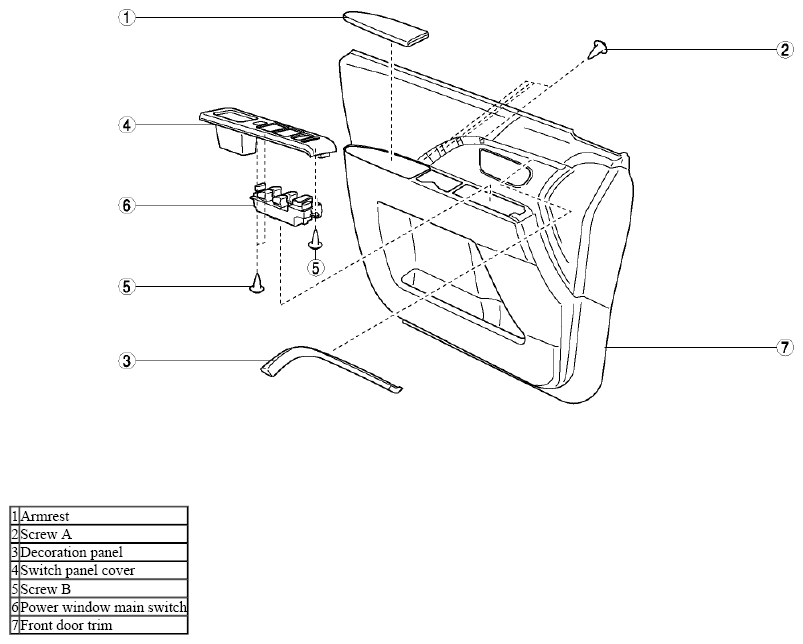

    Fig 1: Identifying Front Door Trim Related Components (Driver-Side)
    G08153234
  2. Assemble in the reverse order of disassembly.
