Airflow Mode Actuator And Climate Control Unit Connector End View

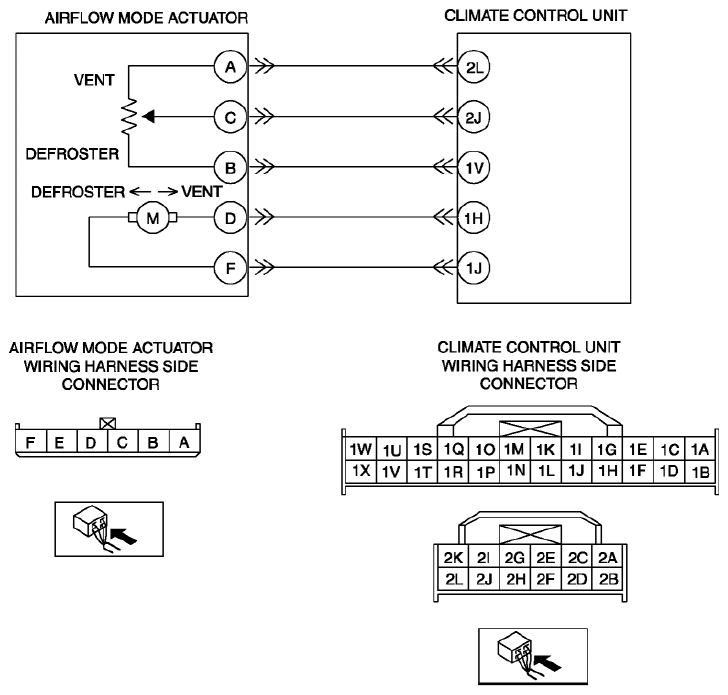

Fig 1: Airflow Mode Actuator And Climate Control Unit Connector End View
G08150853Courtesy of MAZDA MOTORS CORP.
