Front Lower Arm Removal/Installation
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Front Lower Arm Removal/Installation: Notes
Remove in the order indicated in the table.
Install in the reverse order of removal.
Inspect the wheel alignment and adjust it if necessary. (See
FRONT WHEEL ALIGNMENT
.)

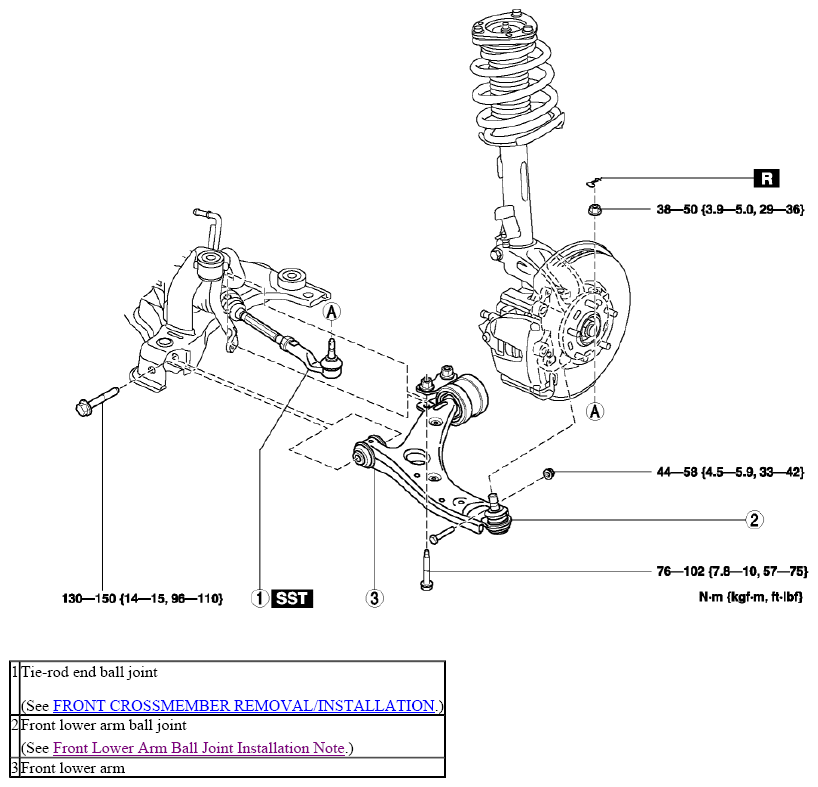

Fig 1: Front Lower Arm Replacement Components With Torque Specifications
