Splash Guard: Service and Repair

SPLASH SHIELD REMOVAL/INSTALLATION

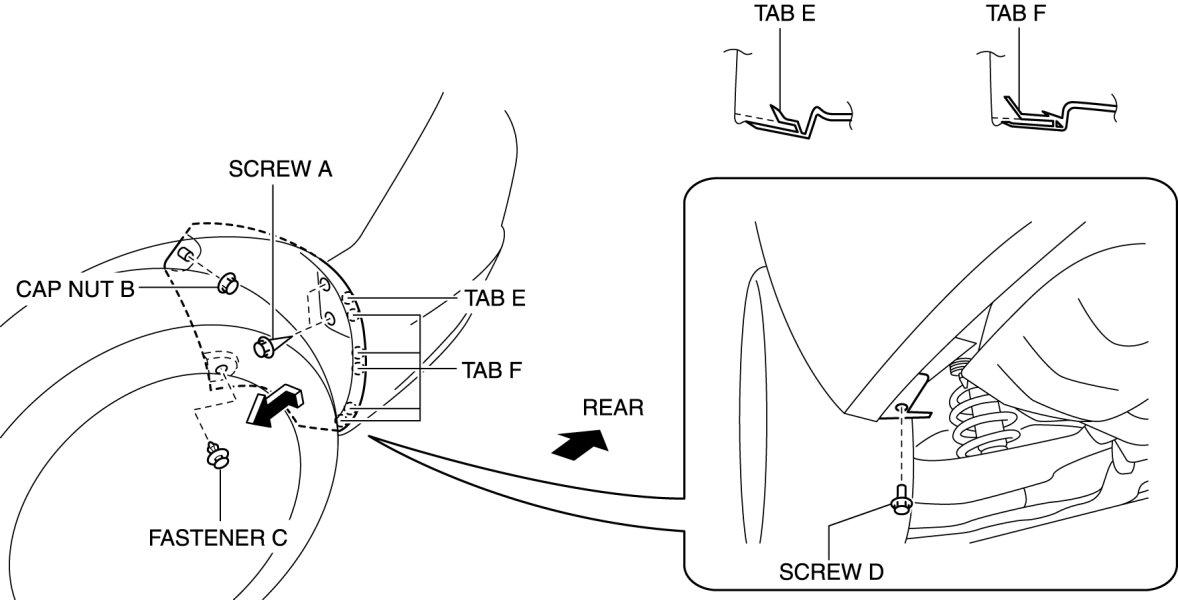

1. Remove the screw A, D, cap nut B and fastener C.

2. Pull the splash shield in the direction of the arrow shown in the figure then remove the tab E and F.

3. Install in the reverse order of removal.
