Diagram 0940-m

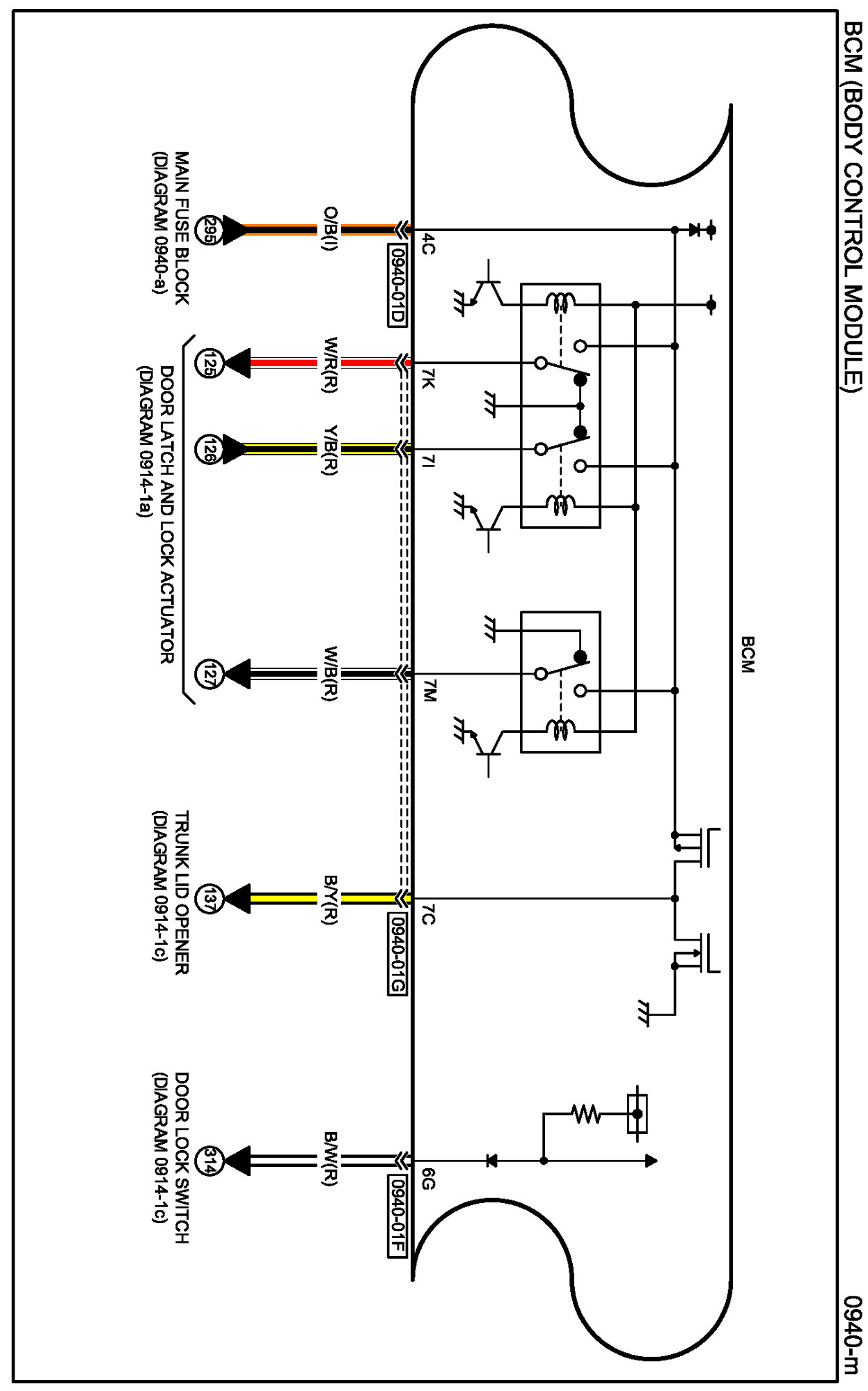

Diagram 0940-m:

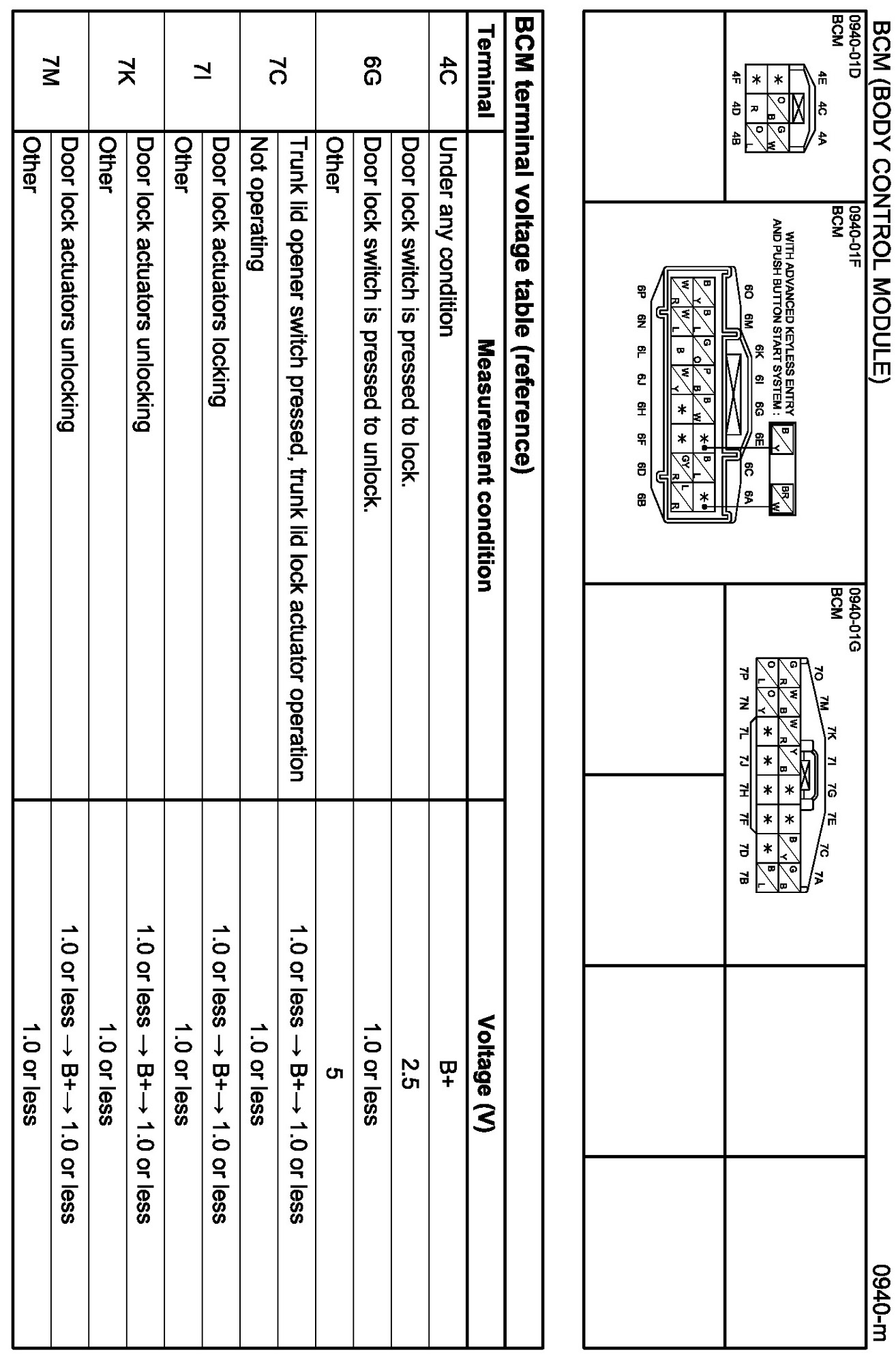

Connectors 0940-m:

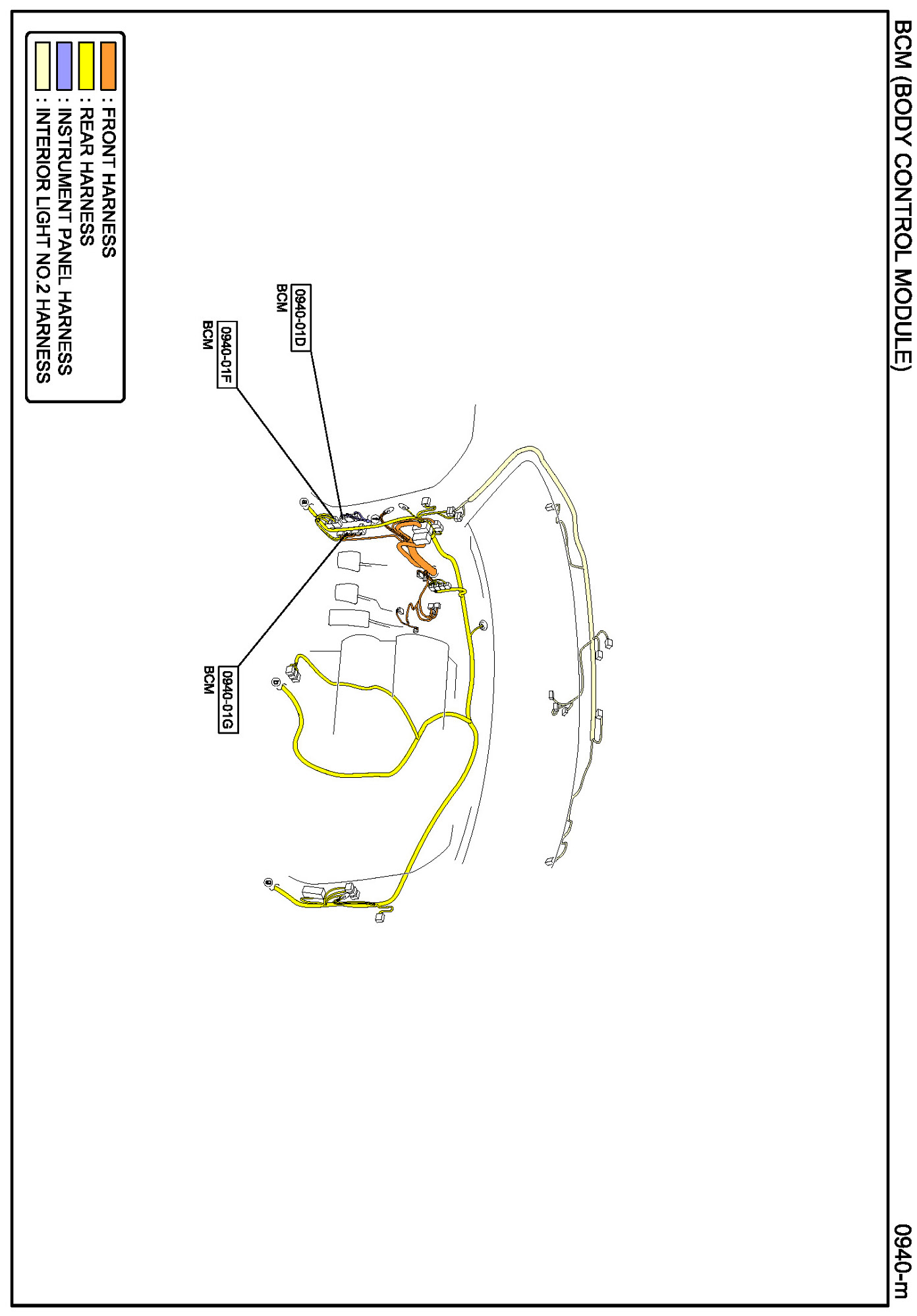

Routing View 0940-m:

Next Diagram Diagram 0940-n

Previous Diagram Diagram 0940-l


Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
