Front Blower Motor

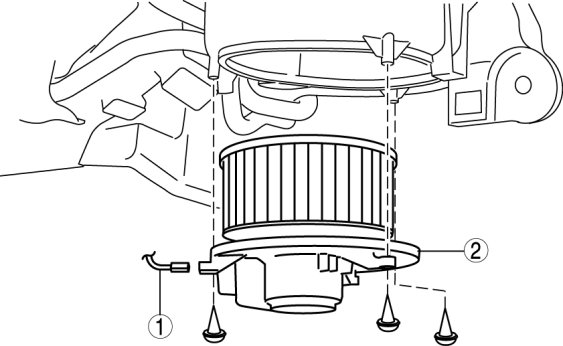

FRONT BLOWER MOTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.
