Instrument Panel, Gauges and Warning Indicators: Locations

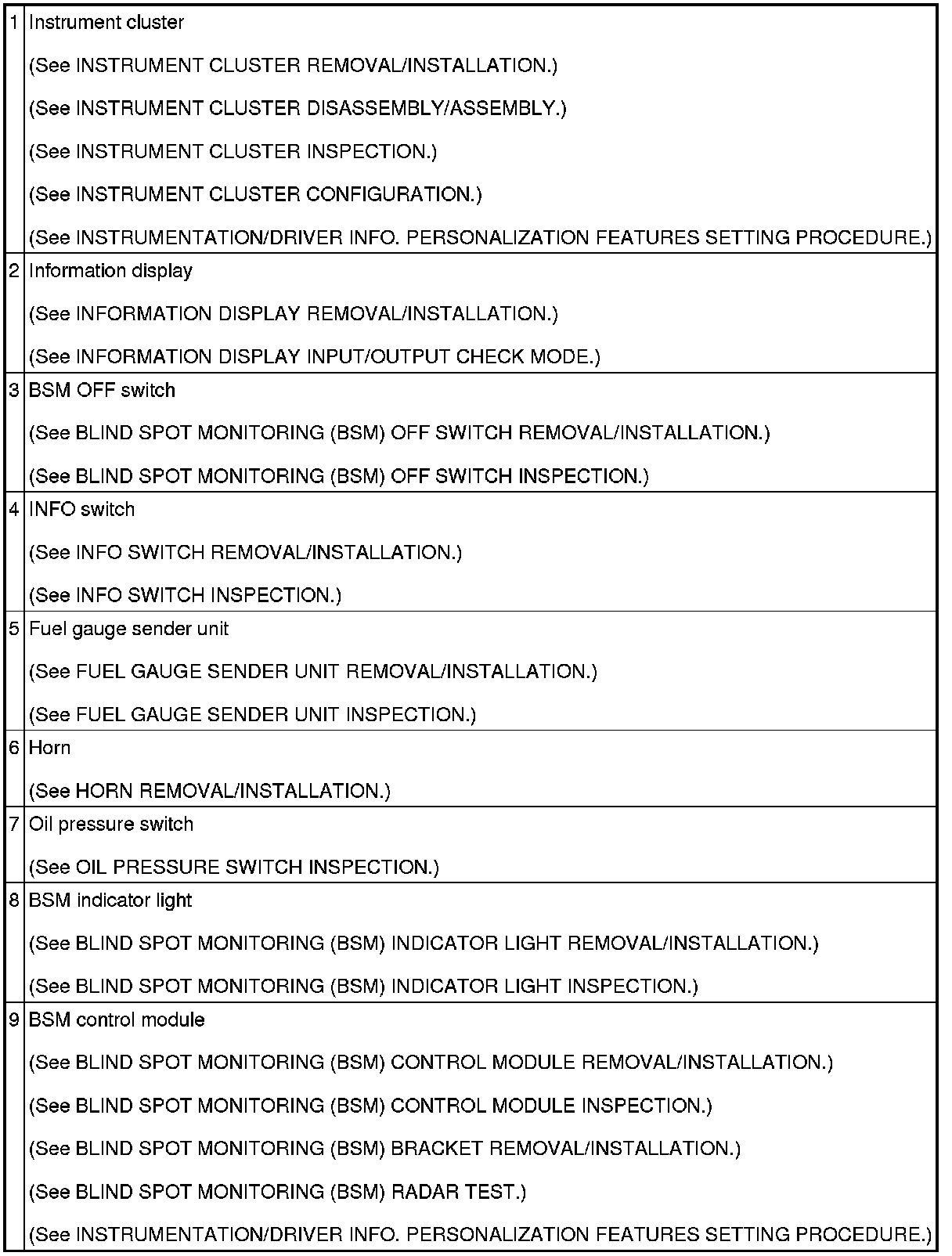

INSTRUMENTATION/DRIVER INFO. LOCATION INDEX

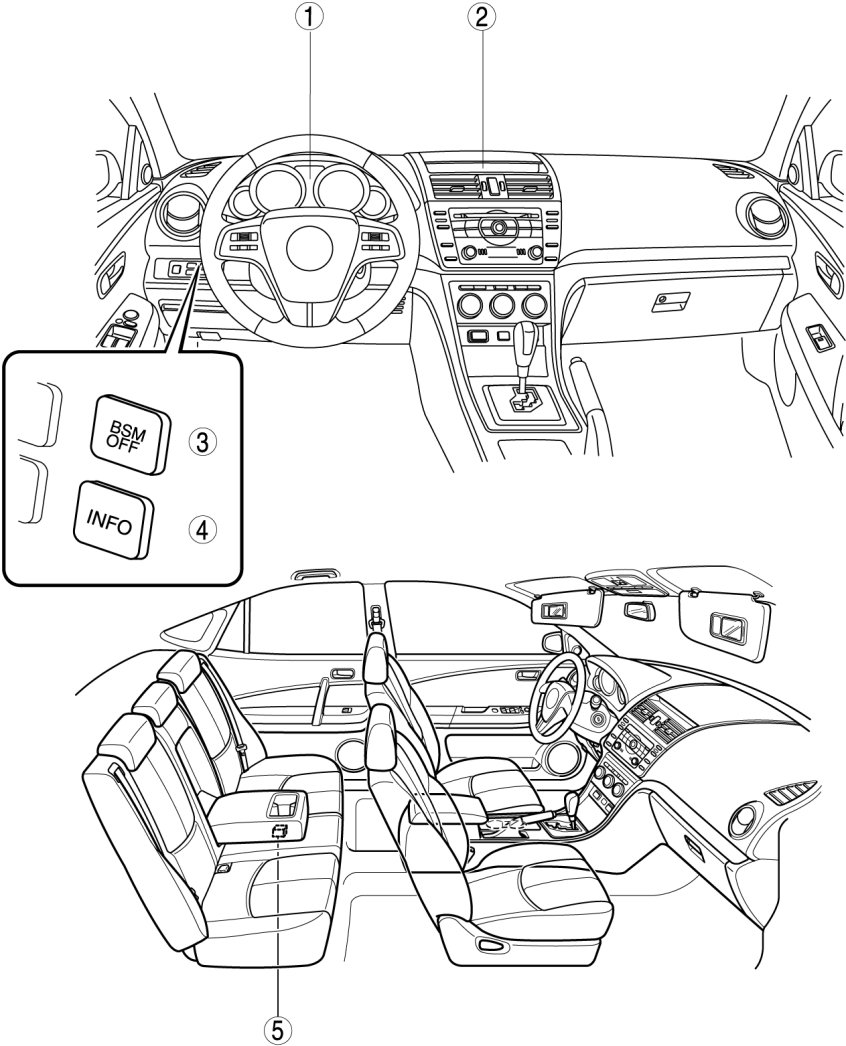

Interior

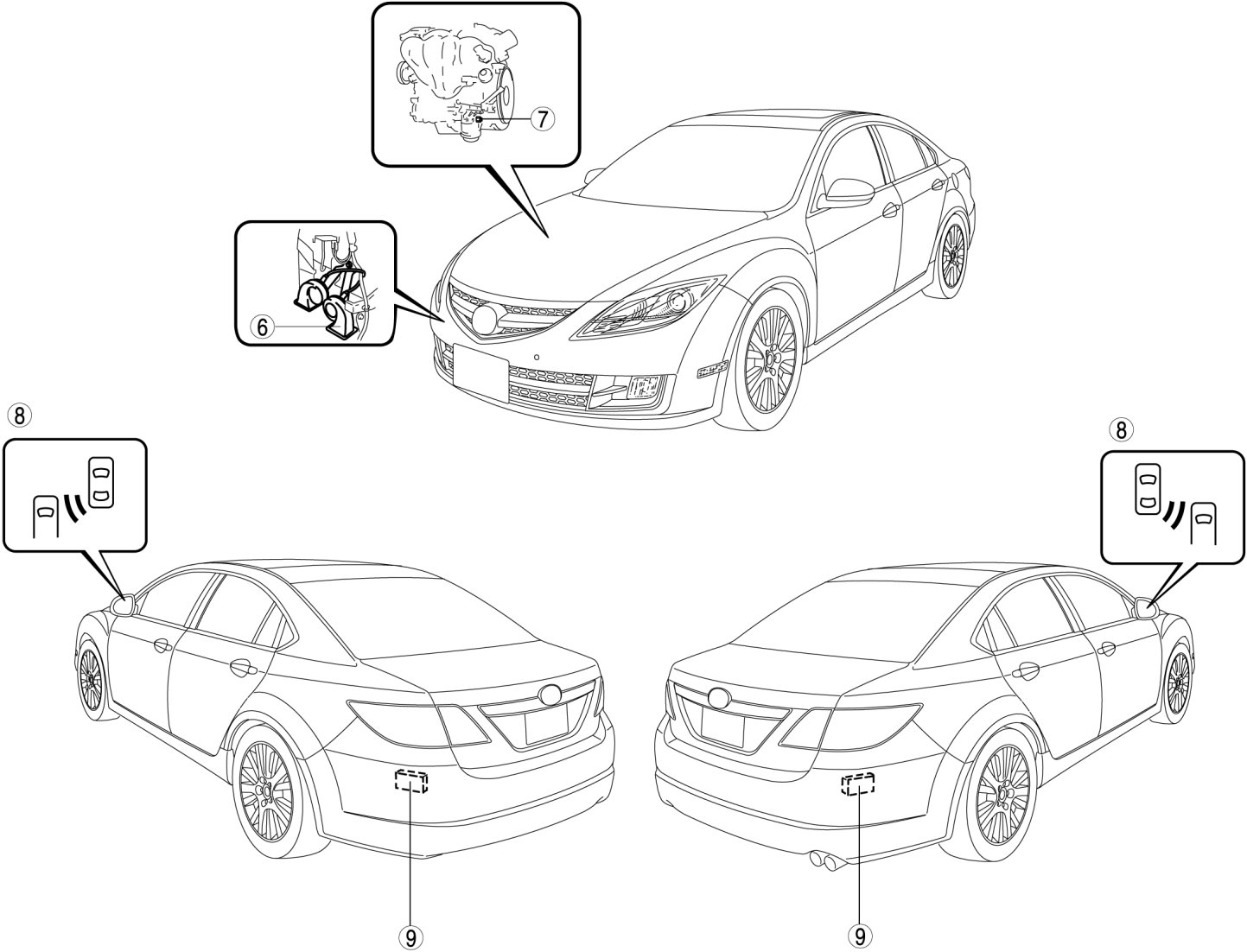

Exterior
