Brake Lamp: Service and Repair

REAR COMBINATION LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the trunk end trim. Service and Repair

3. Partially peel back the trunk side trim.

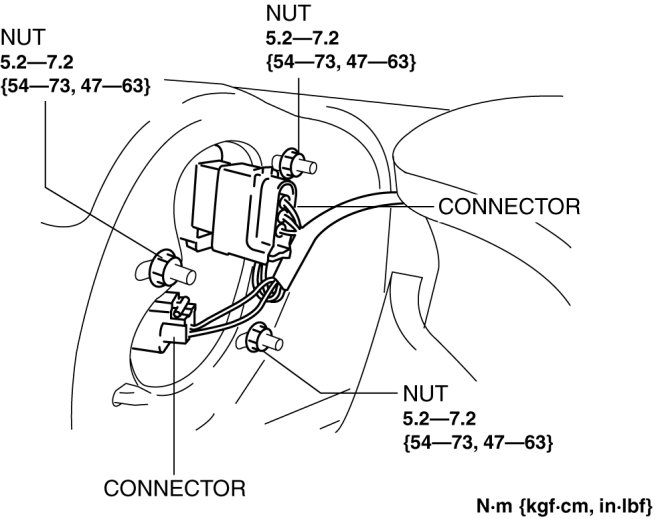

4. Disconnect the connectors shown in the figure and remove the nuts.

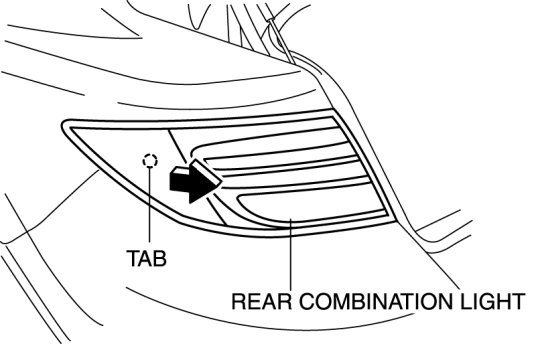

5. Pull the rear combination light in the direction of the arrow to detach it from the tab.






6. Remove the rear combination light.

7. Install in the reverse order of removal.
