License Plate Lamp: Service and Repair

LICENSE PLATE LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Recess Recess Removal/Installation

b. Trunk rid trim

c. Rear finisher

d. License plate light bulb Service and Repair

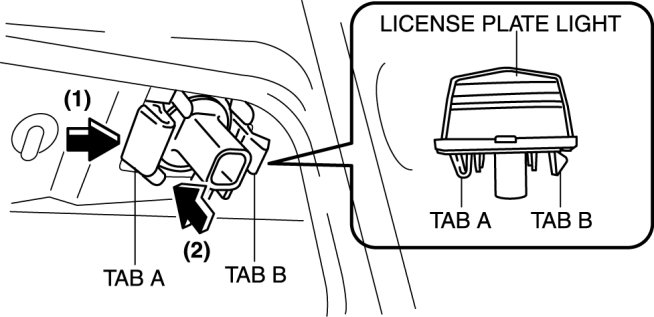

3. Press tab A in the direction of the arrow (1) shown in the figure, press the license plate light in the direction of the arrow (2), and detach tab B.






4. Remove the license plate light.

5. Install in the reverse order of removal.
