Turn Signal Switch: Testing and Inspection

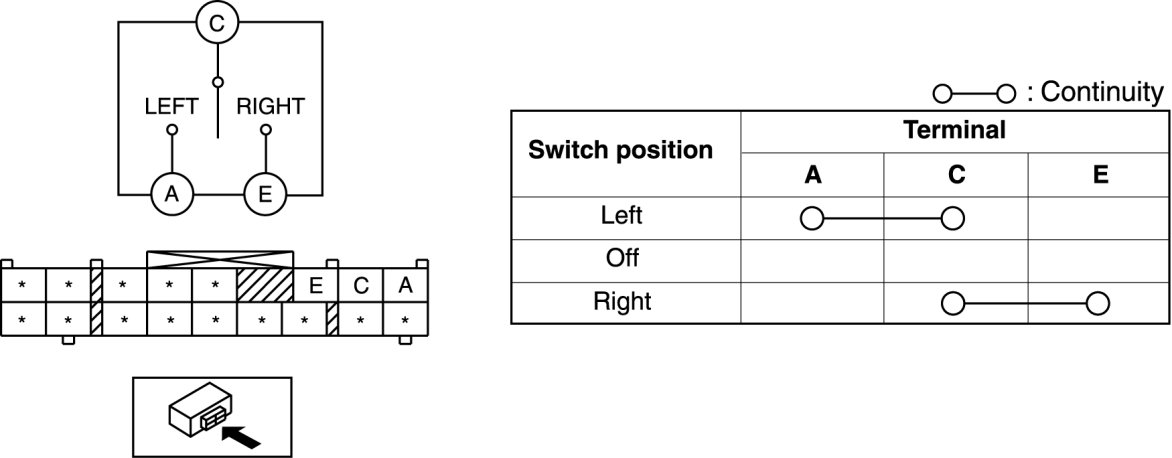

LIGHT SWITCH INSPECTION

Vehicles Without Auto Light System

Turn switch






Vehicles With Auto Light System

Turn switch
