Blind Spot Module: Testing and Inspection

BLIND SPOT MONITORING (BSM) CONTROL MODULE INSPECTION

1. Remove the trunk end trim. Service and Repair

2. Remove the rear seat cushion. Rear Seat Cushion Removal/Installation

3. Remove the rear side seat back. Rear Side Seat Back Removal/Installation

4. Remove the trunk side trim.

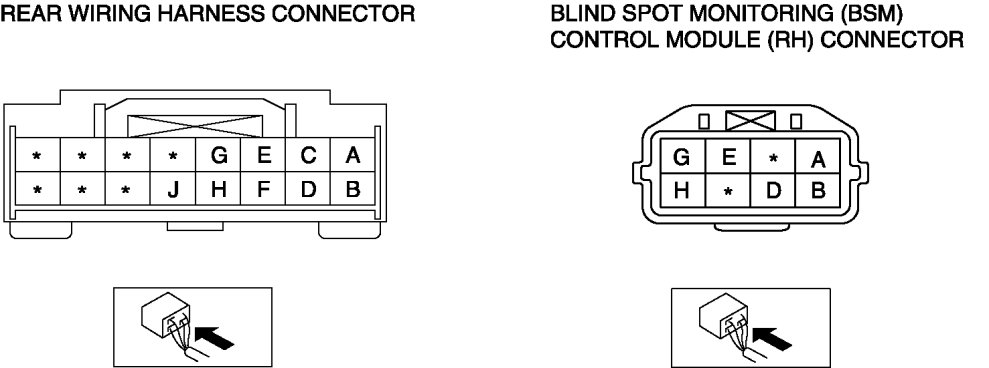

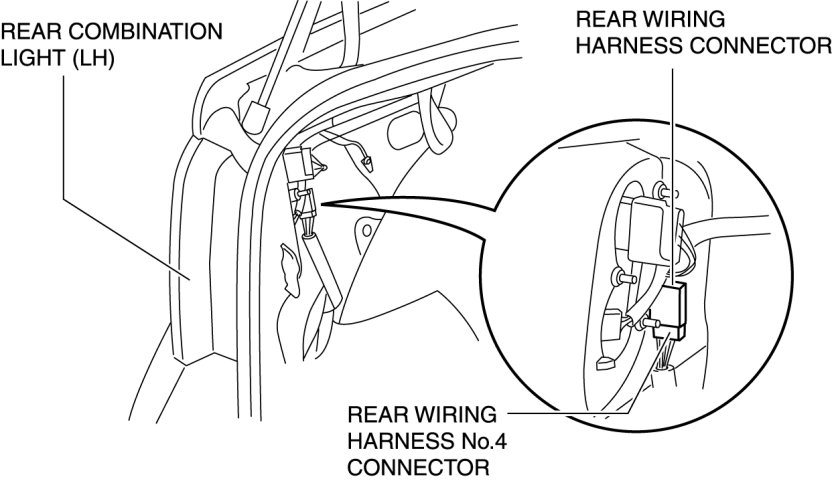

5. Measure the BSM control module terminal voltage using the rear wiring harness connector in the position shown in the figure.

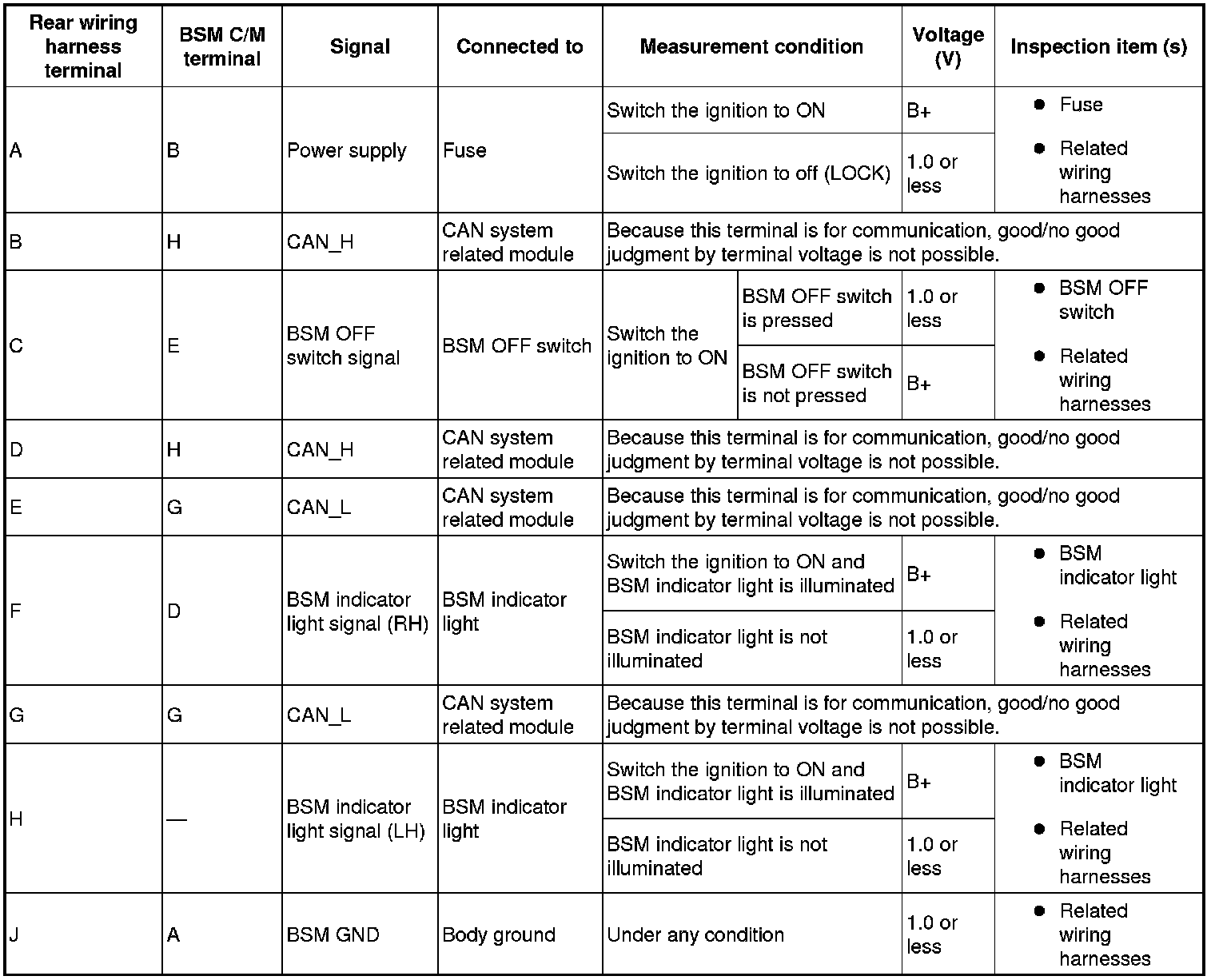

Terminal Voltage Table (Reference)

NOTE:
- The BSM control module connector cannot be connected to a tester due to its water-resistance processing, therefore the rear wiring harness connector is used for measuring the terminal voltage.

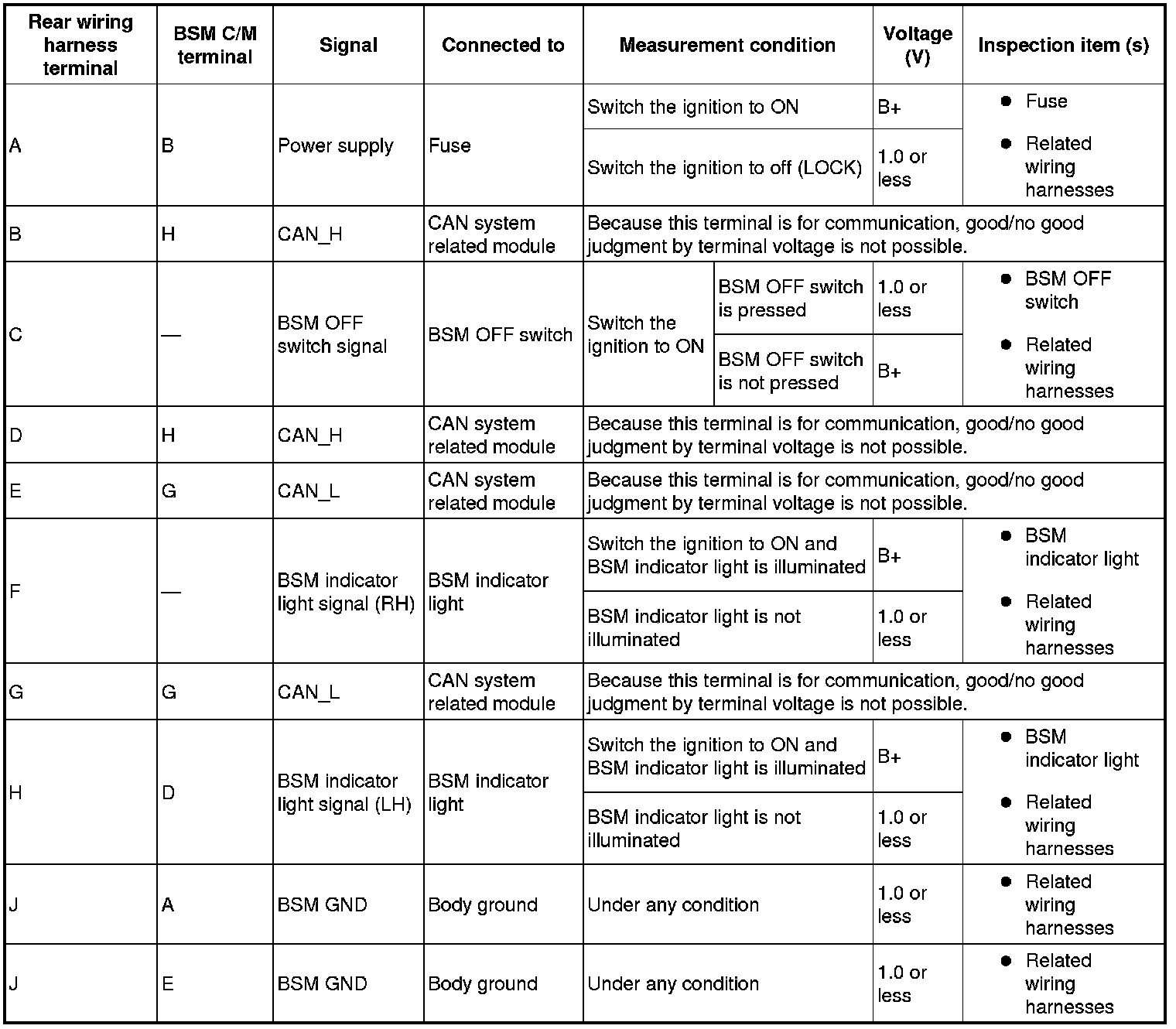

BSM control module (LH)
