Flywheel

Flywheel

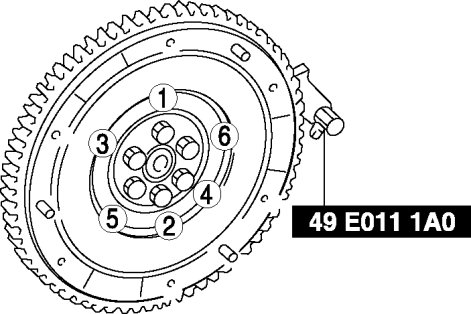

Temporarily tighten the lock bolts uniformly in the order of the numbers shown in the figure and install the flywheel.

Tighten the lock bolts in three steps in the order shown in the figure.

Tightening torque
1st 46-54 Nm {4.7-5.5 kgf-m, 34-39 ft-lbf}
2nd 76-84 Nm {7.8-8.5 kgf-m, 57-61 ft-lbf}
3rd 108-116 Nm {11.1-11.8 kgf-m, 80-85 ft-lbf}
