Flywheel: Testing and Inspection

FLYWHEEL INSPECTION [G66M-R]

1. Refer to CLUTCH UNIT REMOVAL/INSTALLATION to remove the flywheel. Service and Repair

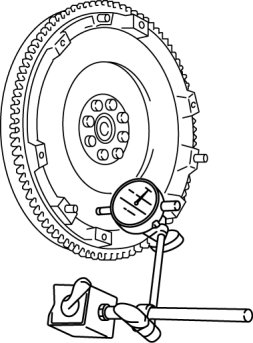

2. Install a dial gauge on the cylinder block.

3. Measure the runout of the surface that contacts the clutch disc using a dial gauge.






- If it exceeds the maximum specification, replace the flywheel. Service and Repair

Flywheel maximum runout
- 0.1 mm {0.004 in}
