Windshield Washer Spray Nozzle: Service and Repair

WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION

1. Remove the windshield wiper arm and blade. Service and Repair

2. Remove the cowl grille. Cowl Grille Removal/Installation

3. Remove the windshield washer hose from the windshield washer nozzle.

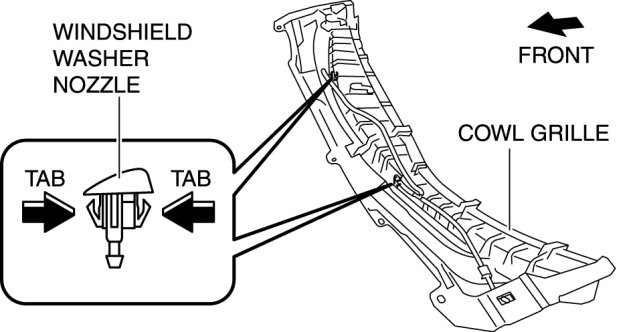

4. Squeeze the tabs of the windshield washer nozzle.

5. Pull the windshield washer nozzle out to remove it.






6. Install in the reverse order of removal.
