Ignition Coil Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

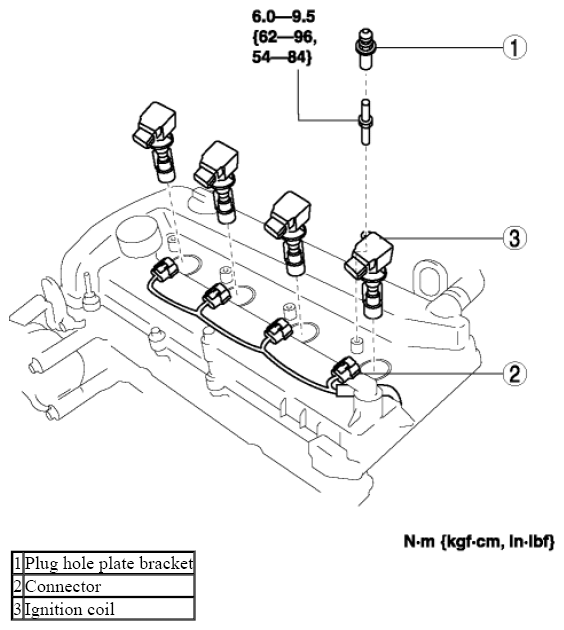

    Fig 1: Plug Hole Plate Bracket, Coil And Ignition Coil With Torque Specification
    G08140699
