Freeze Frame PID Data Access Procedure: Notes

  1. Connect the M-MDS (IDS) to the DLC-2.

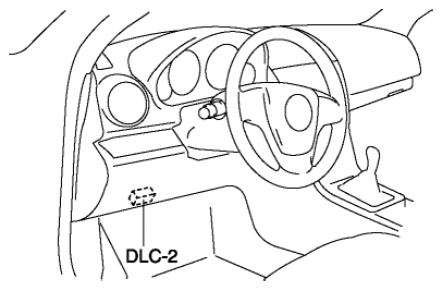

    Fig 1: Identifying DLC-2
    G08140090Courtesy of MAZDA MOTORS CORP.
  2. After the vehicle is identified, select the following items from the initialization screen of the IDS.
    1. Select "Self Test".
    2. Select "Modules".
    3. Select "PCM".
  3. Then, select the "Retrieve CMDTCs" and perform procedures according to directions on the IDS screen.
  4. Retrieve the freeze frame PID data according to the directions on the IDS screen.
    NOTE:
    • Freeze frame data appears at the top of the help screen when the displayed DTC is selected.

      Freeze frame data

    • The freeze frame data consists of data for vehicle and engine control system operation conditions when malfunctions in the engine control system are detected and stored in the PCM.
    • Freeze frame data is stored at the instant the malfunction indicator lamp illuminates, and only a part of the DTC data is stored.
    • For the freeze frame data, if there are several malfunctions in the engine control system, the data for the malfunction which occurred initially is stored. Thereafter, if a misfire or fuel injection control malfunction occurs, data from the misfire or fuel injection control malfunction is written over the initially stored data. However, if the initially stored freeze frame data is a misfire or fuel injection control malfunction, it is not overwritten.
