Clock Spring And Bluetooth Unit Connector End View

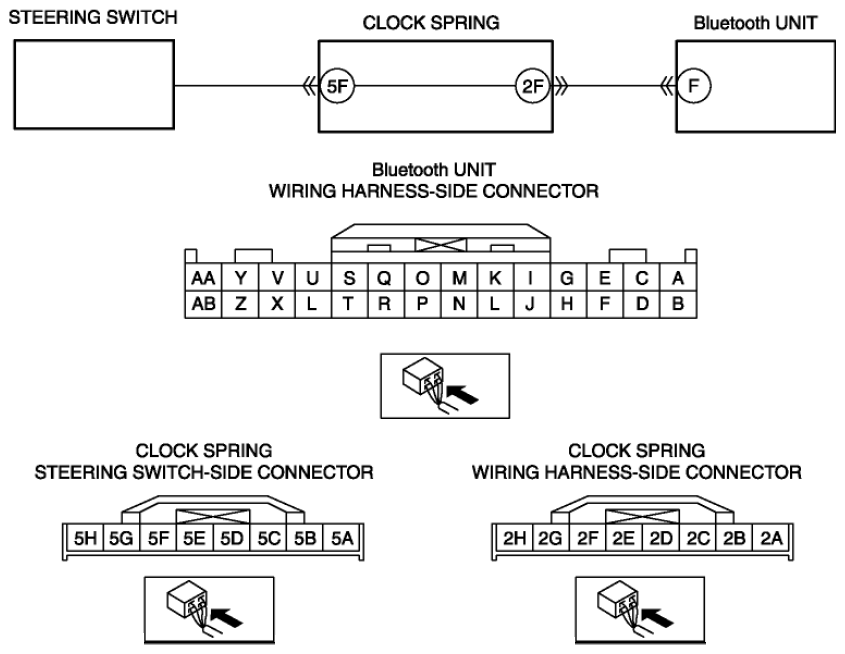

Fig 1: Clock Spring And Bluetooth Unit Connector End View
G08144045Courtesy of MAZDA MOTORS CORP.
