Accessory Socket Removal Note

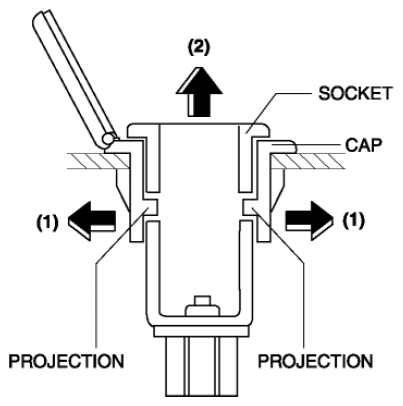

  1. Remove the socket in the direction of the arrow (2) shown in the figure while opening the caps in the direction of the arrow (1) using a tape-wrapped fastener remover.
    Fig 1: Accessory Socket
    G08145018
