Accessory Socket Removal/Installation: Front

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    5. Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

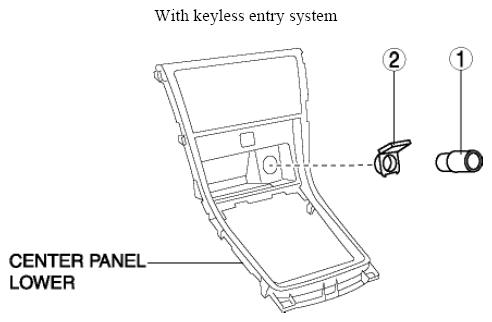

    Fig 1: Identifying Center Lower Panel, Accessory Socket (Front) And Cap (With Keyless Entry System)
    G08145015

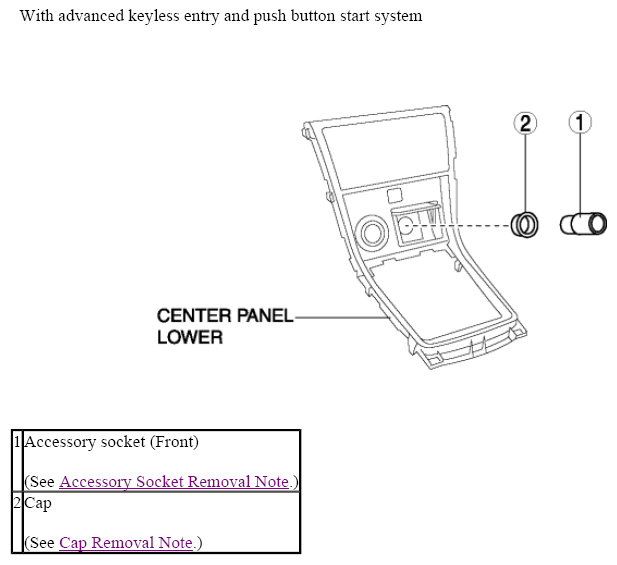

    Fig 2: Identifying Center Lower Panel, Accessory Socket (Front) And Cap (With Advanced Keyless Entry And Push Button Start System)
    G08145016
  4. Install in the reverse order of removal.
