Steering Switch Removal/Installation

  1. Disconnect the negative battery cable and wait for 1 min or more.
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
  3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
  4. Remove the screw.

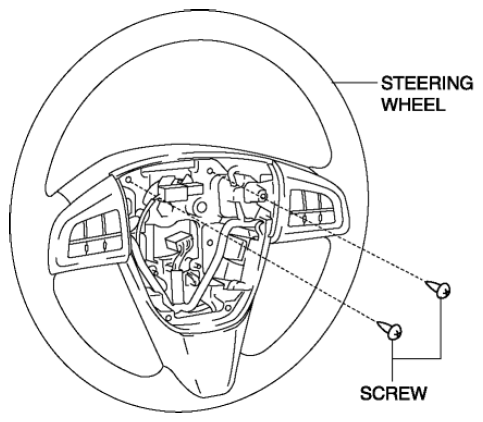

    Fig 1: Identifying Steering Wheel And Screws
    G08145001
  5. Remove the wiring harness from the hook.

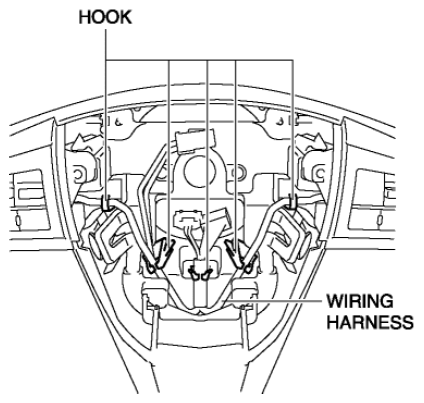

    Fig 2: Identifying Wiring Harness And Hook
    G08145002
  6. Remove the screw.

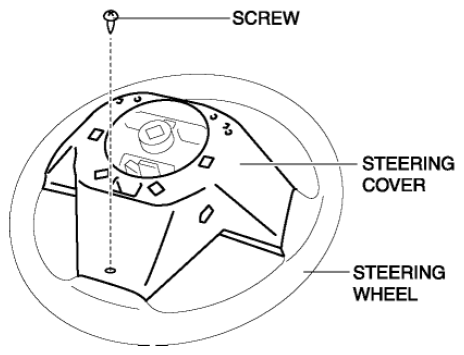

    Fig 3: Identifying Steering Cover, Steering Wheel And Screw
    G08145003
  7. Remove the steering cover.
  8. Remove the screw.

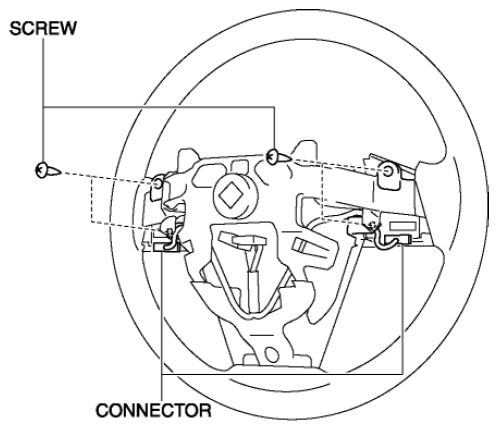

    Fig 4: Identifying Steering Connector And Screw
    G08145004
  9. Disconnect the connector.
  10. Remove the steering switch pins from the steering wheel.

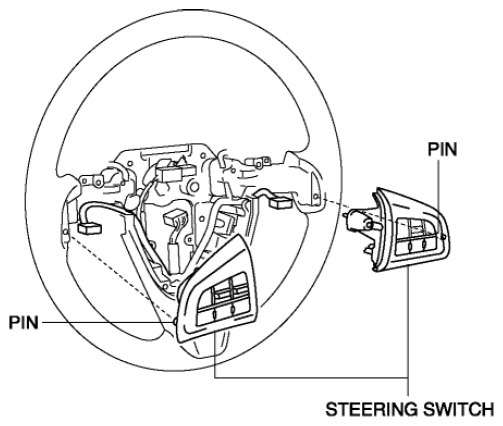

    Fig 5: Identifying Steering Switch And Pins
    G08145005
  11. Remove the steering switch.
  12. Install in the reverse order of removal.
