Accessory Socket Removal/Installation: Front

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the following parts:
1. Upper panel. See UPPER PANEL REMOVAL/INSTALLATION .
2. Decoration panel. See DECORATION PANEL REMOVAL/INSTALLATION .
3. Shift knob (MTX). See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .
4. Shift panel. See SHIFT PANEL REMOVAL/INSTALLATION .
5. Center panel lower. See CENTER PANEL LOWER REMOVAL/INSTALLATION .
Remove in the order indicated in the table.
With keyless entry system

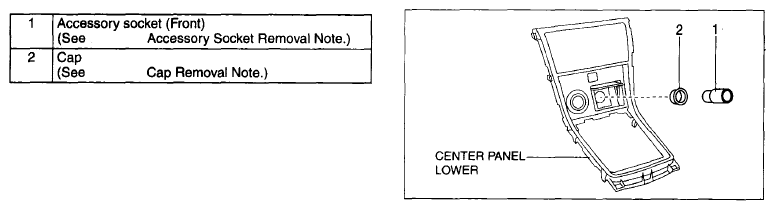

Fig 1: Identifying Center Panel Lower
Courtesy of MAZDA MOTORS CORP.

With advanced keyless entry and push button start system

Fig 2: Identifying Center Panel Lower
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
