SIRIUS Satellite Radio Unit Removal/Installation: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the glove compartment. See GLOVE COMPARTMENT REMOVAL/INSTALLATION .
  3. Remove in the order indicated in the table.

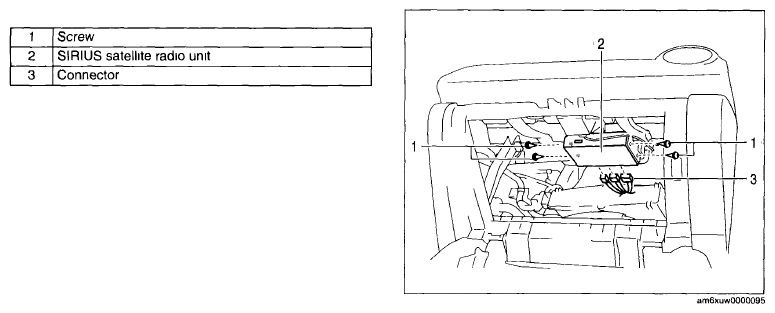

    Fig 1: Identifying SIRIUS Satellite Radio Unit, Screw And Connector
    G06201168Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
