Brake Pedal Removal/Installation: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The clearance between the brake switch and the brake pedal is automatically adjusted to the correct amount when the brake switch connector is connected after the brake switch has been properly installed. If the brake switch is not properly installed or the connector is connected before installation, the clearance may be incorrect, causing a brake light malfunction. Therefore, always verify that the brake switch is properly installed before connecting the connector.
  • Once the brake switch clearance has automatically been adjusted, it cannot be adjusted again. Therefore, replace the switch with a new one when replacing the power brake unit or the pedal, or performing any procedure that changes the pedal stroke.
  1. Remove the following parts
    1. Glove compartment. See GLOVE COMPARTMENT REMOVAL/INSTALLATION .
    2. Dashboard under cover. See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .
    3. Front scuff plates. See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
    4. Front side trims. See FRONT SIDE TRIM REMOVAL/INSTALLATION .
    5. Upper panel. See UPPER PANEL REMOVAL/INSTALLATION .
    6. Decoration panel. See DECORATION PANEL REMOVAL/INSTALLATION .
    7. Shift knob (MTX). See MANUAL TRANSAXLE SHIFT MECHANISM LOCATION INDEX .
    8. Shift panel. See SHIFT PANEL REMOVAL/INSTALLATION .
    9. Center panel lower. See CENTER PANEL LOWER REMOVAL/INSTALLATION .
    10. Climate control unit. See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] . See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .
    11. Rear console. See REAR CONSOLE REMOVAL/INSTALLATION .
    12. Hood release lever. See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .
    13. Lower panel. See LOWER PANEL REMOVAL/INSTALLATION .
    14. Driver-side air bag module. See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .
    15. Steering wheel. See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] . See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .
    16. Column cover. See COLUMN COVER REMOVAL/INSTALLATION .
    17. Combination switch. See COMBINATION SWITCH REMOVAL/INSTALLATION .
    18. Meter hood. See METER HOOD REMOVAL/INSTALLATION .
    19. Instrument cluster. See INSTRUMENT CLUSTER REMOVAL/INSTALLATION )
    20. Center panel upper. See CENTER PANEL UPPER REMOVAL/INSTALLATION .
    21. Audio unit. See AUDIO UNIT REMOVAL/INSTALLATION .
    22. Car-navigation unit (Vehicles car-navigation unit). See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION .
    23. Steering shaft cover. See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] . See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .
    24. Steering shaft. See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] . See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .
    25. Side panel. See SIDE PANEL REMOVAL/INSTALLATION .
    26. Passenger-side air bag module. See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .
    27. A-pillar trims. See A-PILLAR TRIM REMOVAL/INSTALLATION .
    28. Windshield wiper arm and blade. See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION )
    29. Cowl grille. See COWL GRILLE REMOVAL/INSTALLATION .
    30. Dashboard. See DASHBOARD REMOVAL/INSTALLATION .
  2. Disconnect the accelerator pedal connector. See ACCELERATOR PEDAL REMOVAL/INSTALLATION [L5] . See ACCELERATOR PEDAL REMOVAL/INSTALLATION [MZI-3.7] .
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

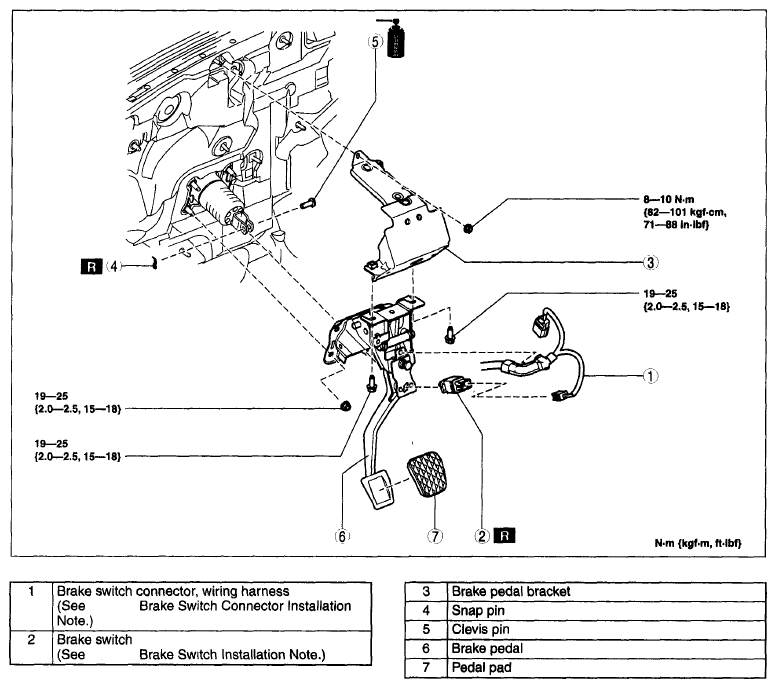

    Fig 1: Brake Pedal Removal/Installation Order With Torque Specifications
    G06200001Courtesy of MAZDA MOTORS CORP.
