Disc Pad (Rear) Replacement: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the rear ABS wheel-speed sensor as shown in the figure. See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .
  2. Remove in the order indicated in the table
  3. Install in the reverse order of removal.
  4. After installation, depress the pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.
    Fig 1: Identifying Rear ABS Wheel-Speed Sensor
    G06200036Courtesy of MAZDA MOTORS CORP.

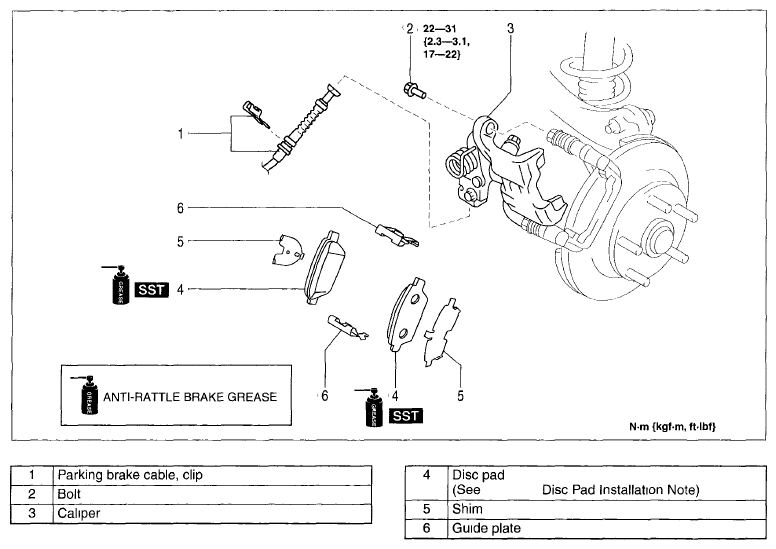

    Fig 2: Disc Pad Removal/Installation Order With Torque Specifications (Rear)
    G06200037Courtesy of MAZDA MOTORS CORP.
