Rear Outer Handle Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Fully close the rear door glass.
Disconnect the negative battery cable.
Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
Remove the hole cover.

Fig 1: Identifying Hole Cover
Courtesy of MAZDA MOTORS CORP.
Remove the service hole cover.

Fig 2: Identifying Service Hole Cover
Courtesy of MAZDA MOTORS CORP.
Remove the screw from the service hole.
NOTE:
- The screw cannot be removed because of the stopper.

Fig 3: Identifying Service Hole Screw

Courtesy of MAZDA MOTORS CORP.

Press the tab on the rear outer handle bracket in the direction of the arrow shown in the figure.

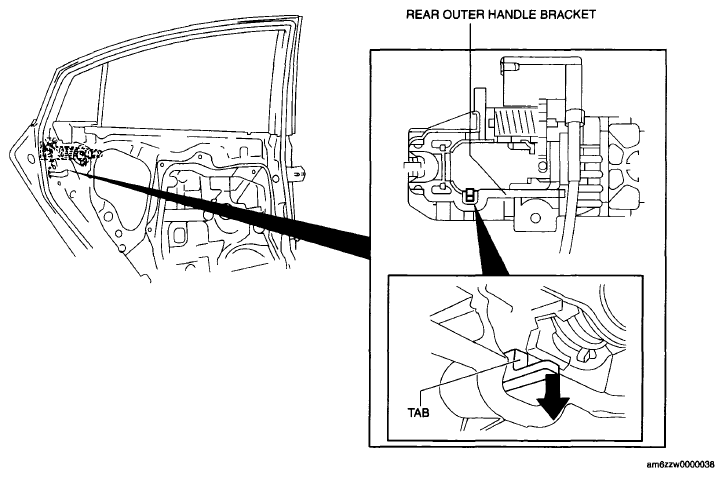

Fig 4: Identifying Tab On Rear Outer Handle Bracket
Courtesy of MAZDA MOTORS CORP.
Maintaining the condition in procedure 7, remove the outer handle garnish.

Fig 5: Removing Outer Handle Garnish
Courtesy of MAZDA MOTORS CORP.
Remove the rear outer handle

Fig 6: Removing Rear Outer Handle
Courtesy of MAZDA MOTORS CORP.
Loosen the screw.

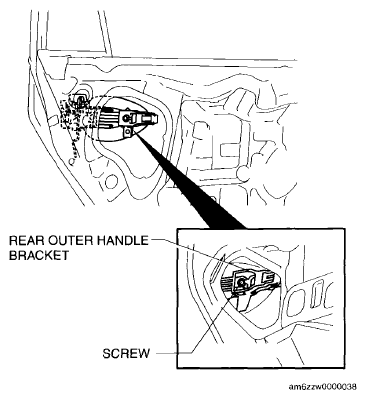

Fig 7: Identifying Rear Outer Handle Bracket Screw
Courtesy of MAZDA MOTORS CORP.
Press down the rod holder in the direction of arrow (1) shown in the figure and remove the rear outer handle bracket in the direction of arrow (2).

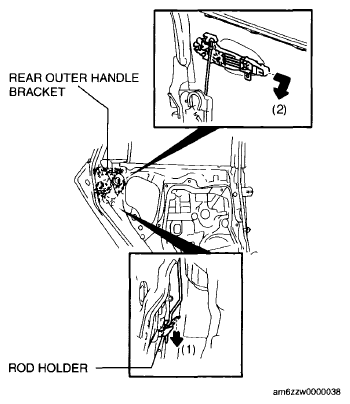

Fig 8: Removing Rear Outer Handle Bracket

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal
