Front Door Module Panel Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 80 mm {3.1 in}  .
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Inner garnish. See INNER GARNISH REMOVAL/INSTALLATION .
    2. Front door trim. See FRONT DOOR TRIM REMOVAL/INSTALLATION .
    3. Front door speaker. See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .
    4. Front door glass. See FRONT DOOR GLASS REMOVAL/INSTALLATION .
    Fig 1: Identifying Distance From Top Of Front Door Glass To Upper Part Of Front Beltline Molding
    G06205688Courtesy of MAZDA MOTORS CORP.
  4. Remove the clips securing the front door wiring harness from the front door module panel.

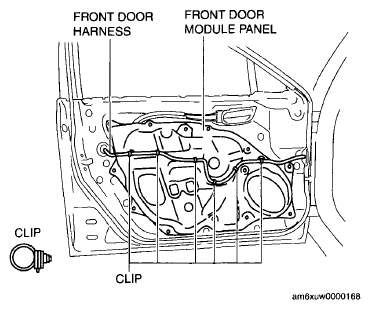

    Fig 2: Identifying Front Door Harness, Front Door Module Panel And Clip
    G06205689Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts
  6. Remove the fastener.
  7. Remove the front door module panel
  8. Remove the front power window motor. See POWER WINDOW MOTOR REMOVAL/INSTALLATION .
  9. Remove the front power window regulator. See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .
  10. Install in the reverse order of removal.

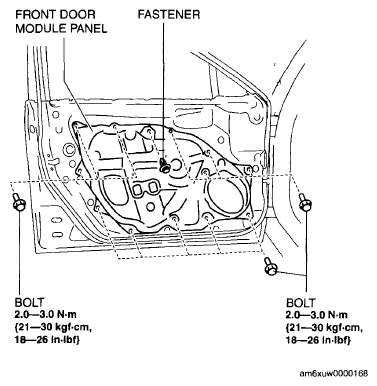

Fig 3: Front Door Module Panel With Mounting Bolts Torque Specifications
G06205690Courtesy of MAZDA MOTORS CORP.
