Steering Location Index

MZR 2.5

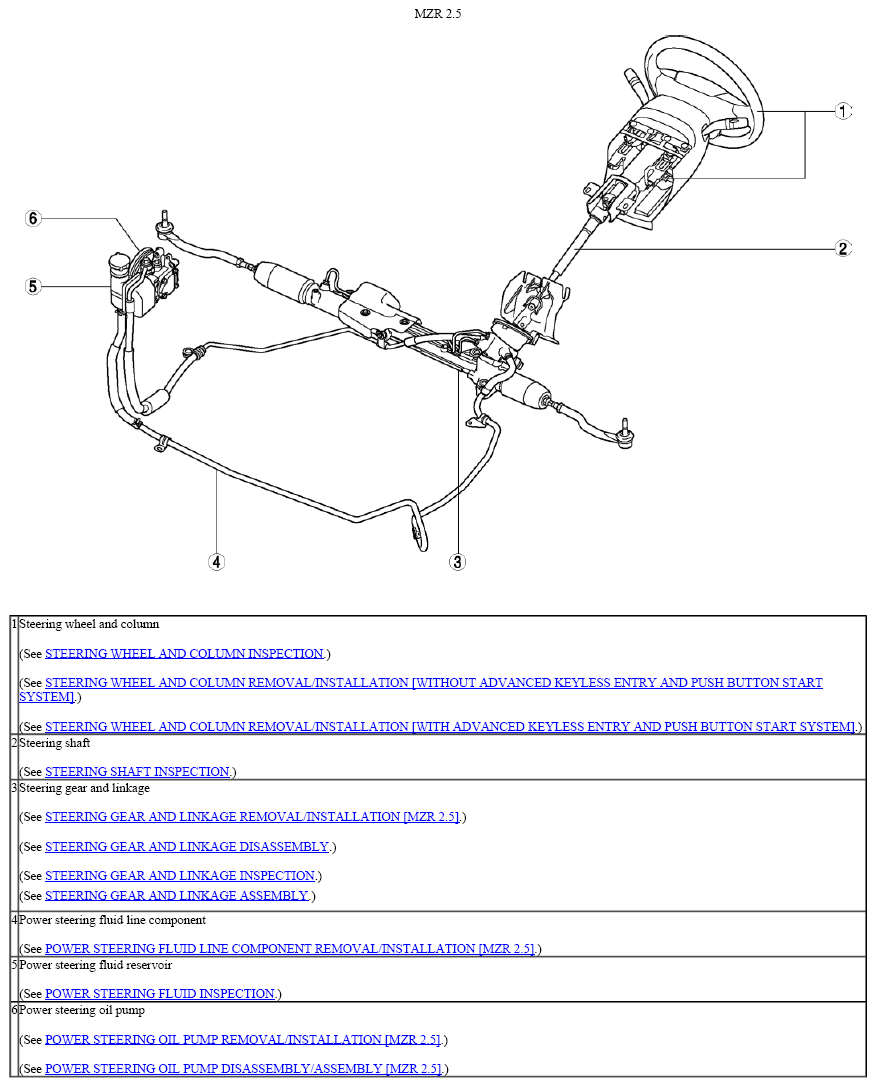

Fig 1: Identifying Steering Components Location (MZR 2.5)
G08143387

MZI 3.7 V6

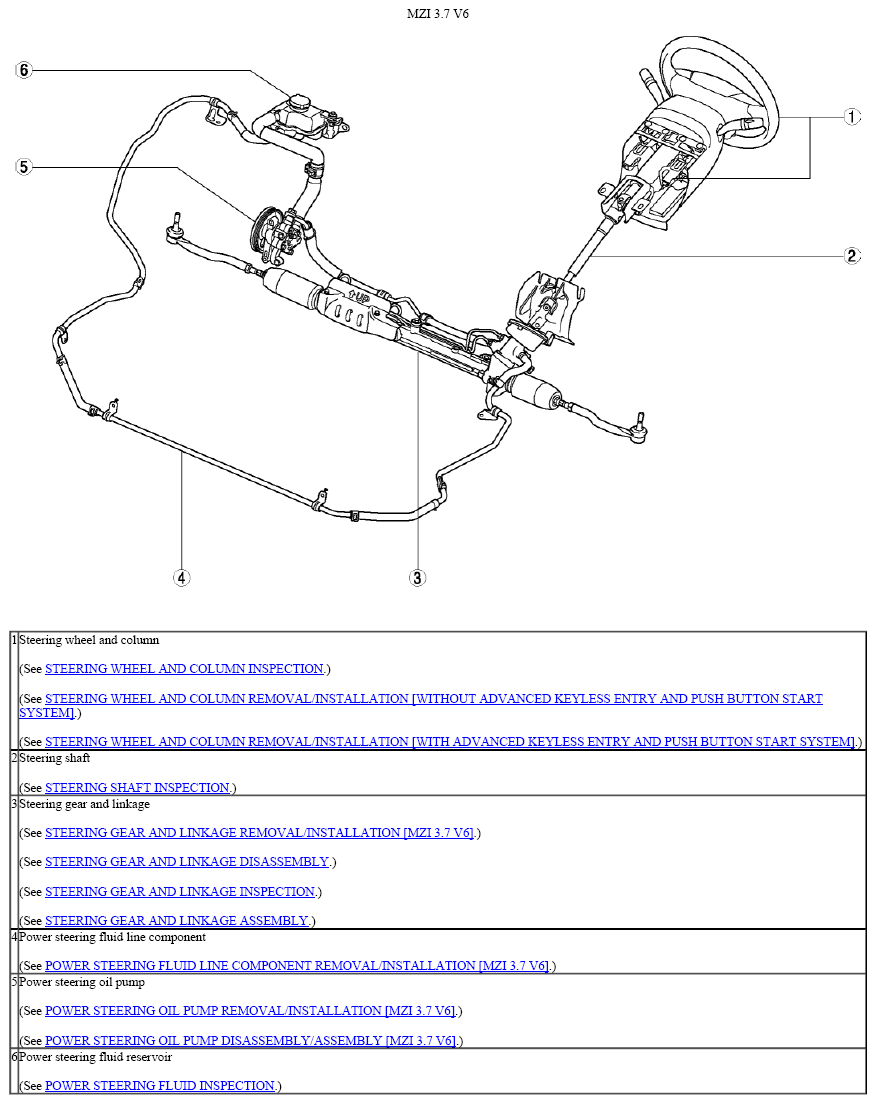

Fig 2: Identifying Steering Components Location (MZI 3.7 V6)
G08143388
