Selector Cable Removal/Installation
- Disconnect the negative battery cable.
- Remove the aerodynamic under cover NO.2. (FS5A-EL) (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION .)
- Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION .)
- Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION .)
- Remove the A/C unit. (See A/C UNIT REMOVAL/INSTALLATION .)
- Remove the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION .)

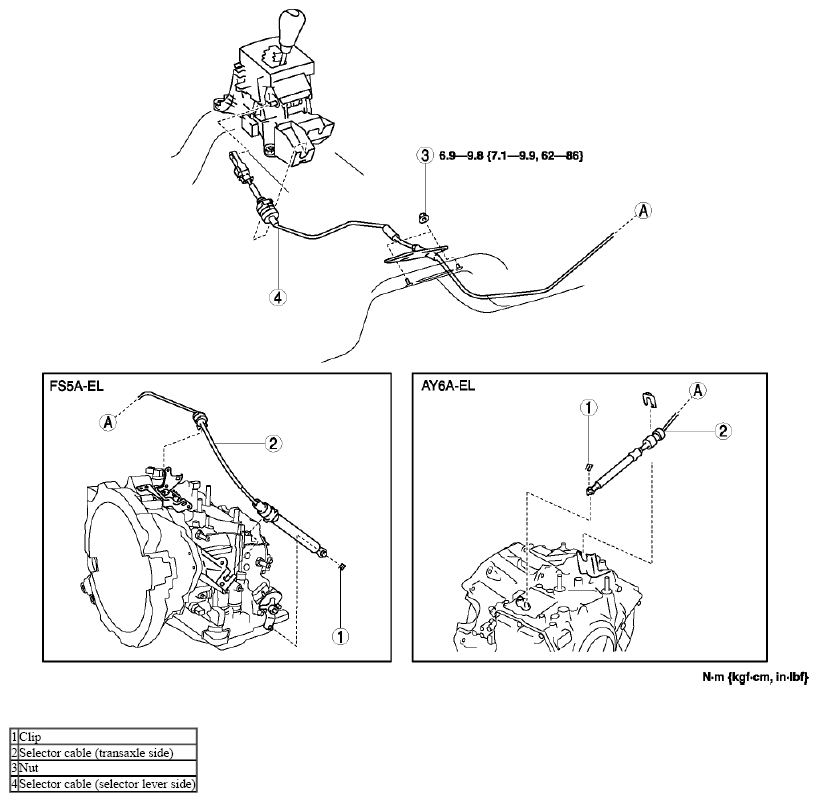

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Adjust the selector cable after having installed. (See SELECTOR CABLE ADJUSTMENT .)
