Front Fender: Service and Repair

FRONT FENDER PANEL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Windshield wiper arm and blade (See Windshield Wiper Arm And Blade Removal/Installation)

b. Cowl grill (See Cowl Grille Removal/Installation)

c. Front bumper (See Removal and Replacement)

d. Front combination lights (See Front Combination Light Removal/Installation)

e. Side step molding (See )

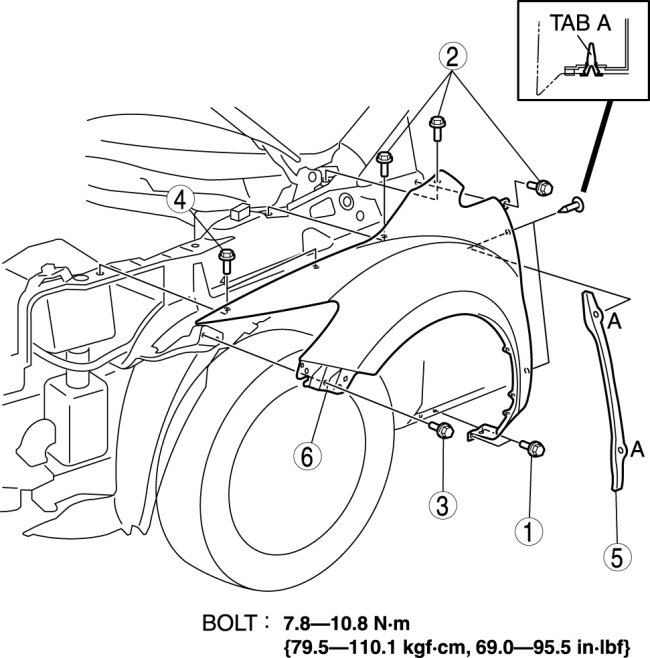

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
