Traction Control Switch: Service and Repair

TCS OFF SWITCH REMOVAL/INSTALLATION

1. Remove in the order indicated in the table.










2. Install in the reverse order of removal.

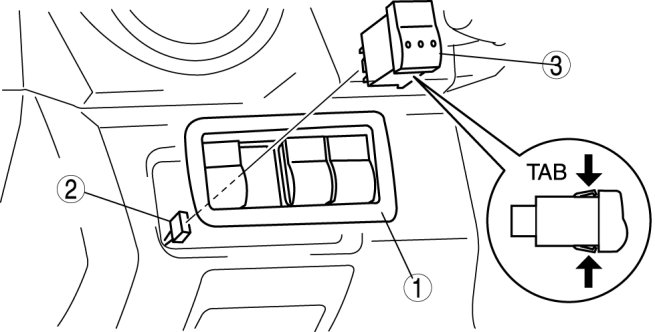

Switch Bezel Component Removal Note

1. Access the switch bezel component from behind of the dashboard, and squeeze the tabs of the switch bezel component.

2. Remove the switch bezel component from the dashboard.
