Installation

CLIMATE CONTROL UNIT INSTALLATION [MANUAL AIR CONDITIONER]

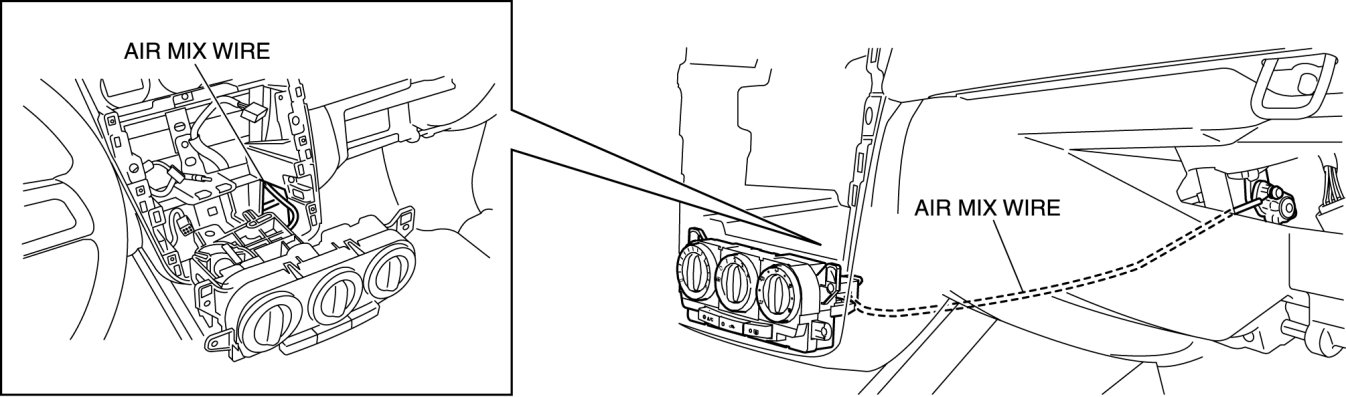

1. Pass air mix wire through the following routes then connect to A/C unit.






2. Install the climate control unit to the dashboard.

3. Install the following parts:
a. Center panel Center Panel Removal/Installation

b. Decoration panel Decoration Panel Removal/Installation

4. Adjust the air mix wire. Adjustments

5. Install the globe compartment. Service and Repair

6. Connect the negative battery cable.
