Climate Control Unit Inspection

CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER]

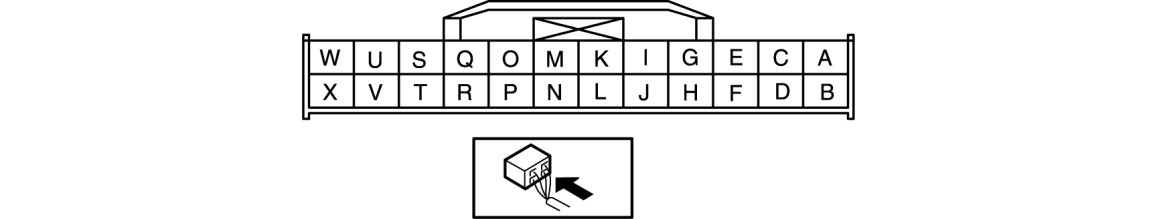

1. Remove the climate control unit. Manual Air Conditioner

2. Connect the climate control unit connector.

3. Connect the negative (-) lead of the tester to body ground.

4. Turn the ignition switch to the ON position.

5. By inserting the positive (+) lead of the tester into each climate control unit terminal, measure the voltage according to the terminal voltage table.

- If there is any malfunction, inspect the parts under "Inspection item (s)".

- If the parts under "Inspection item (s)" are found to be normal, replace the climate control unit.

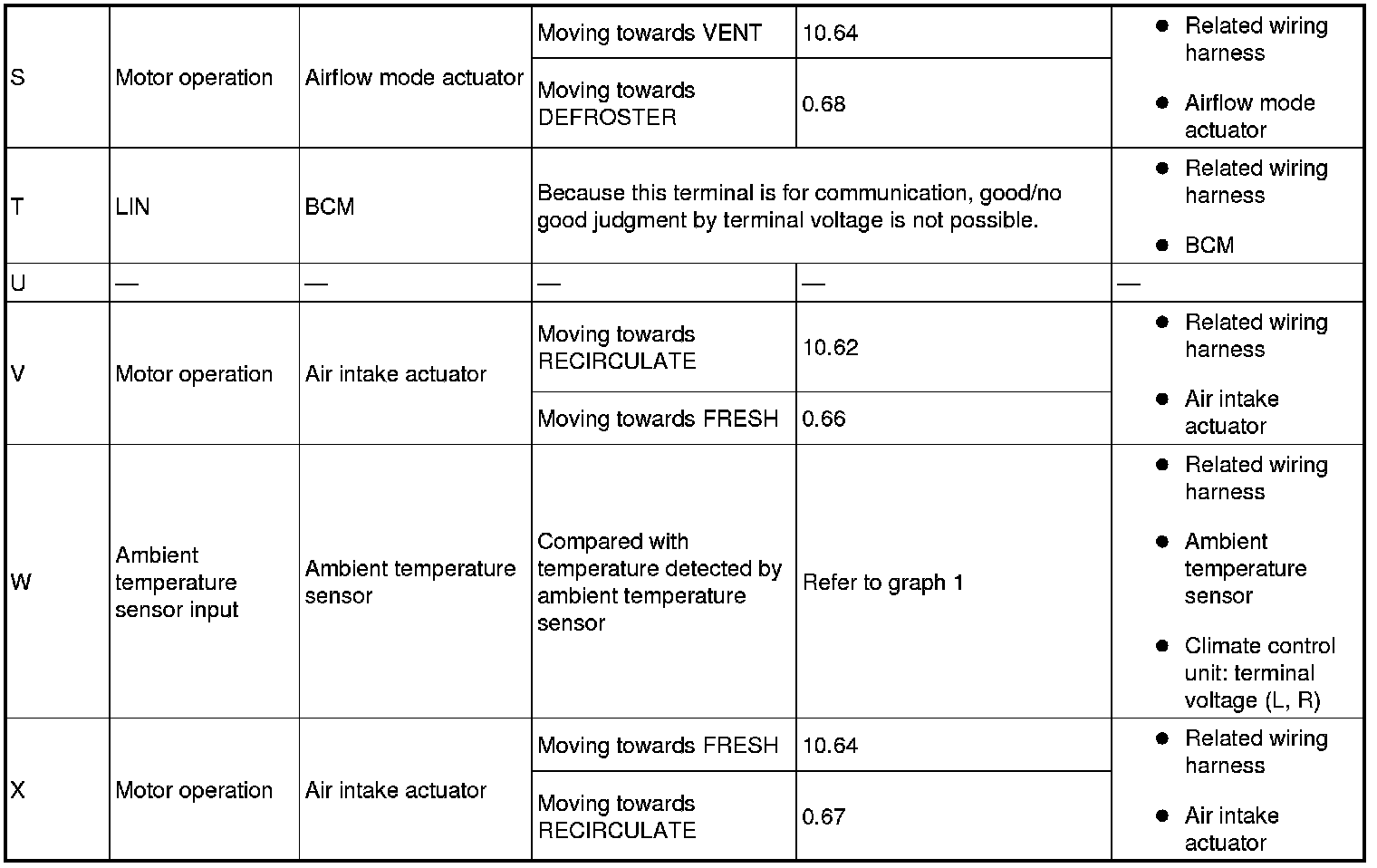

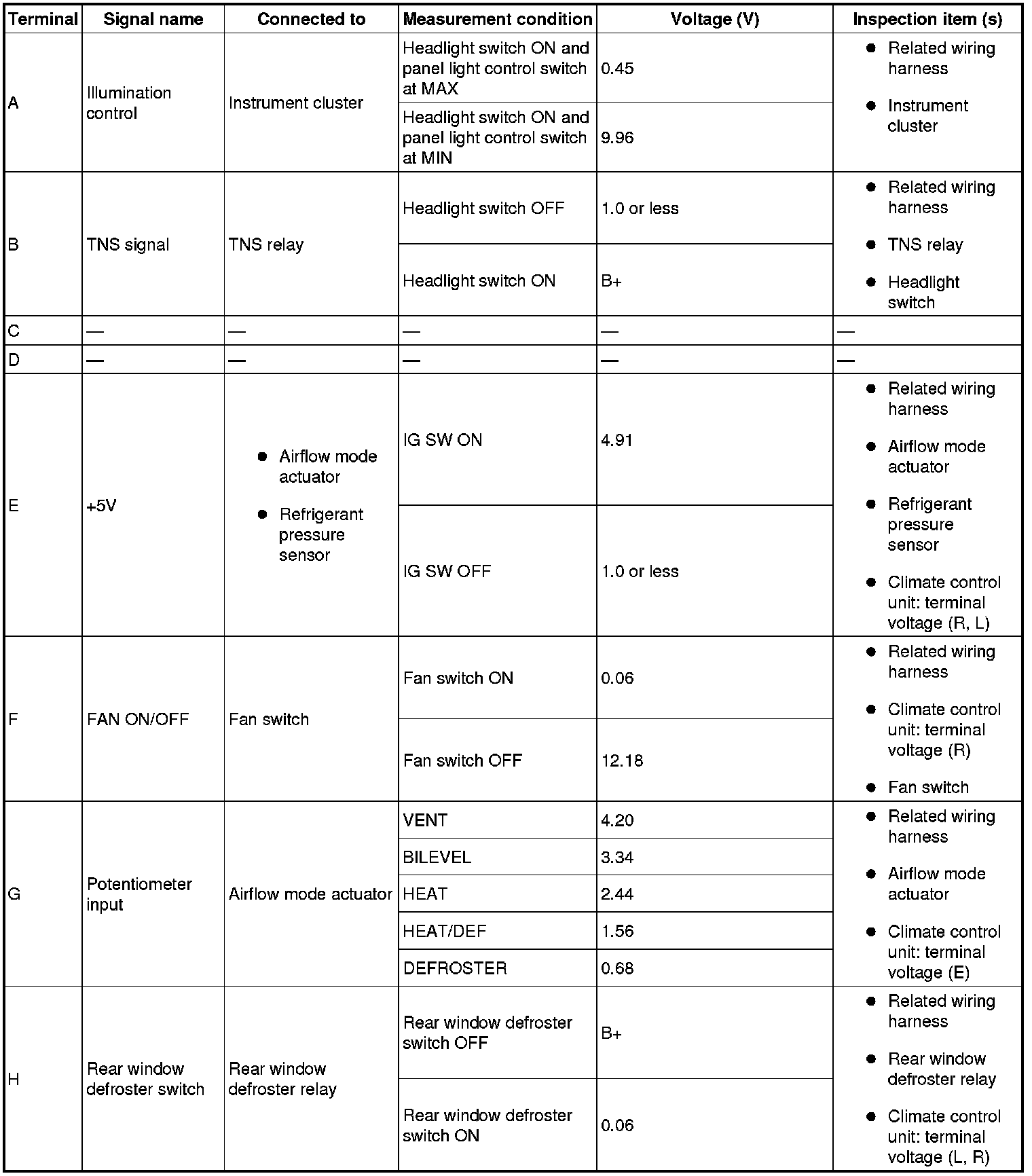

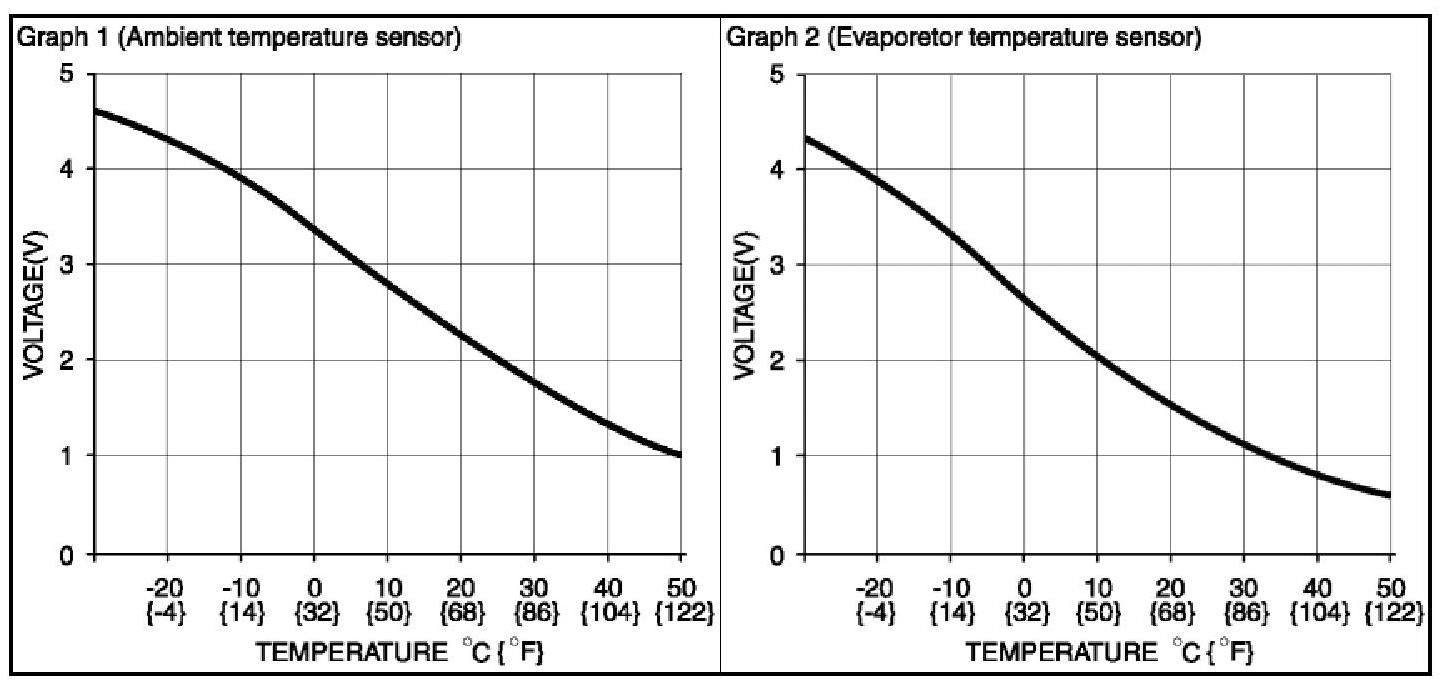

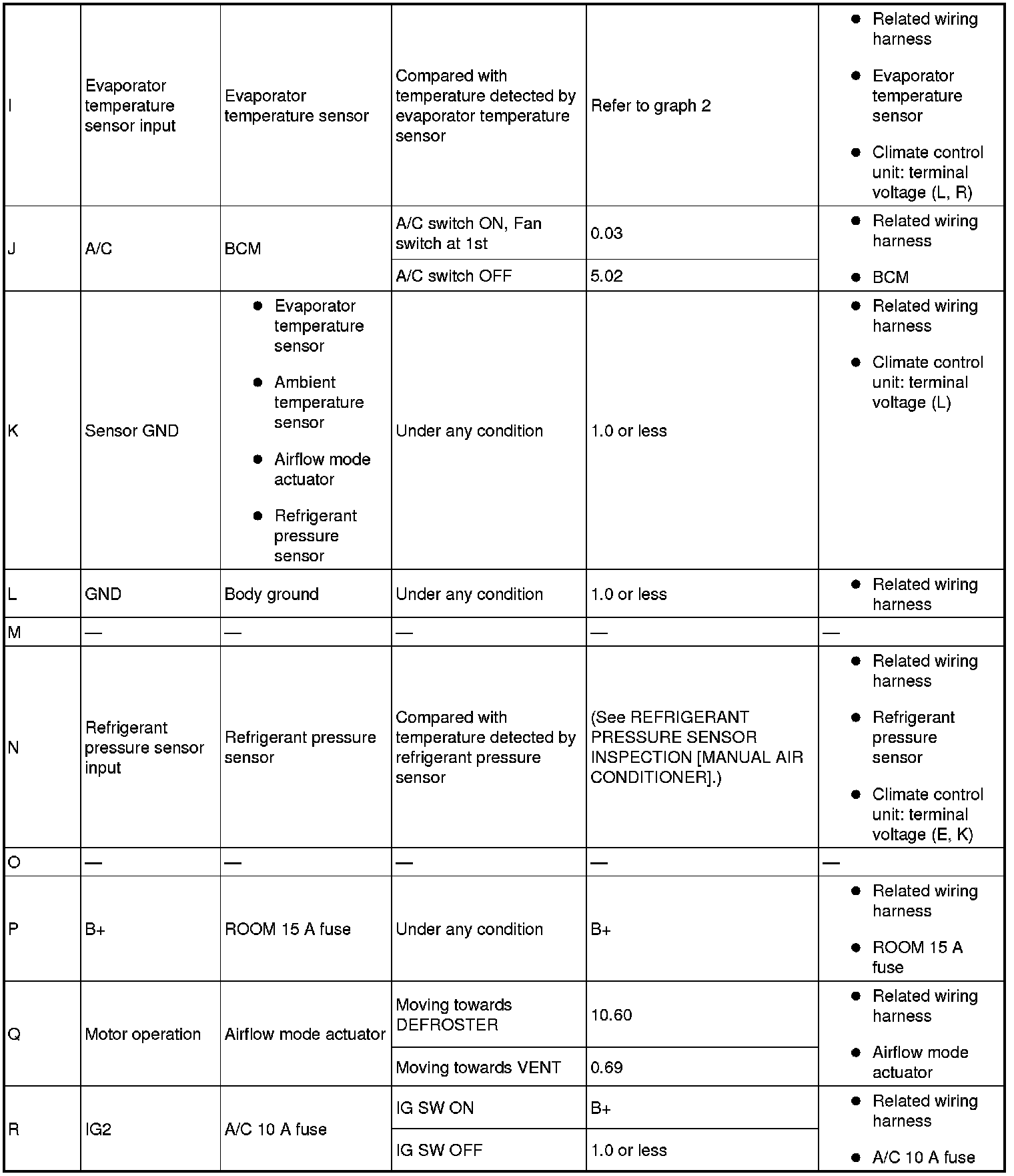

Terminal Voltage Table (Reference)
