Overhaul

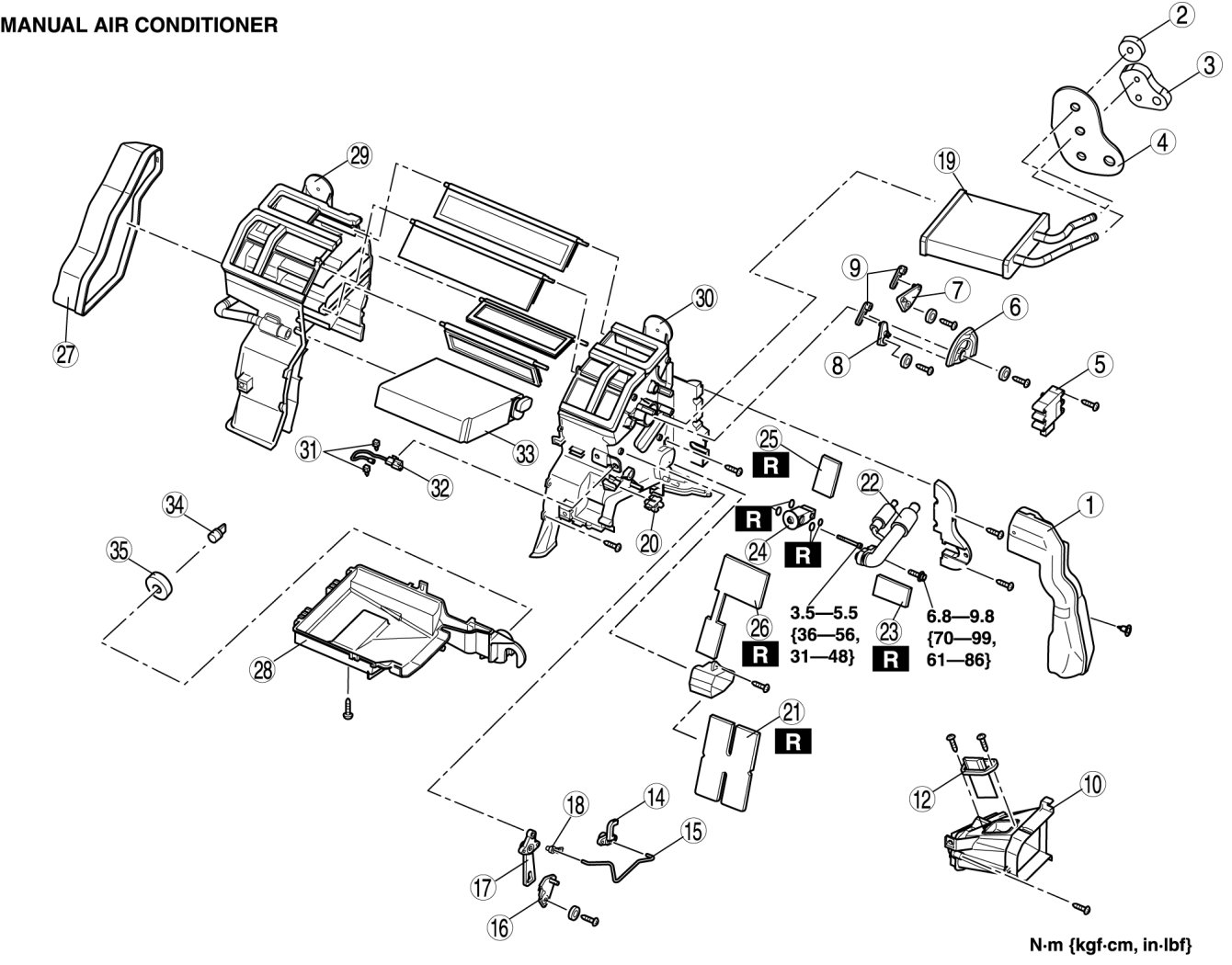

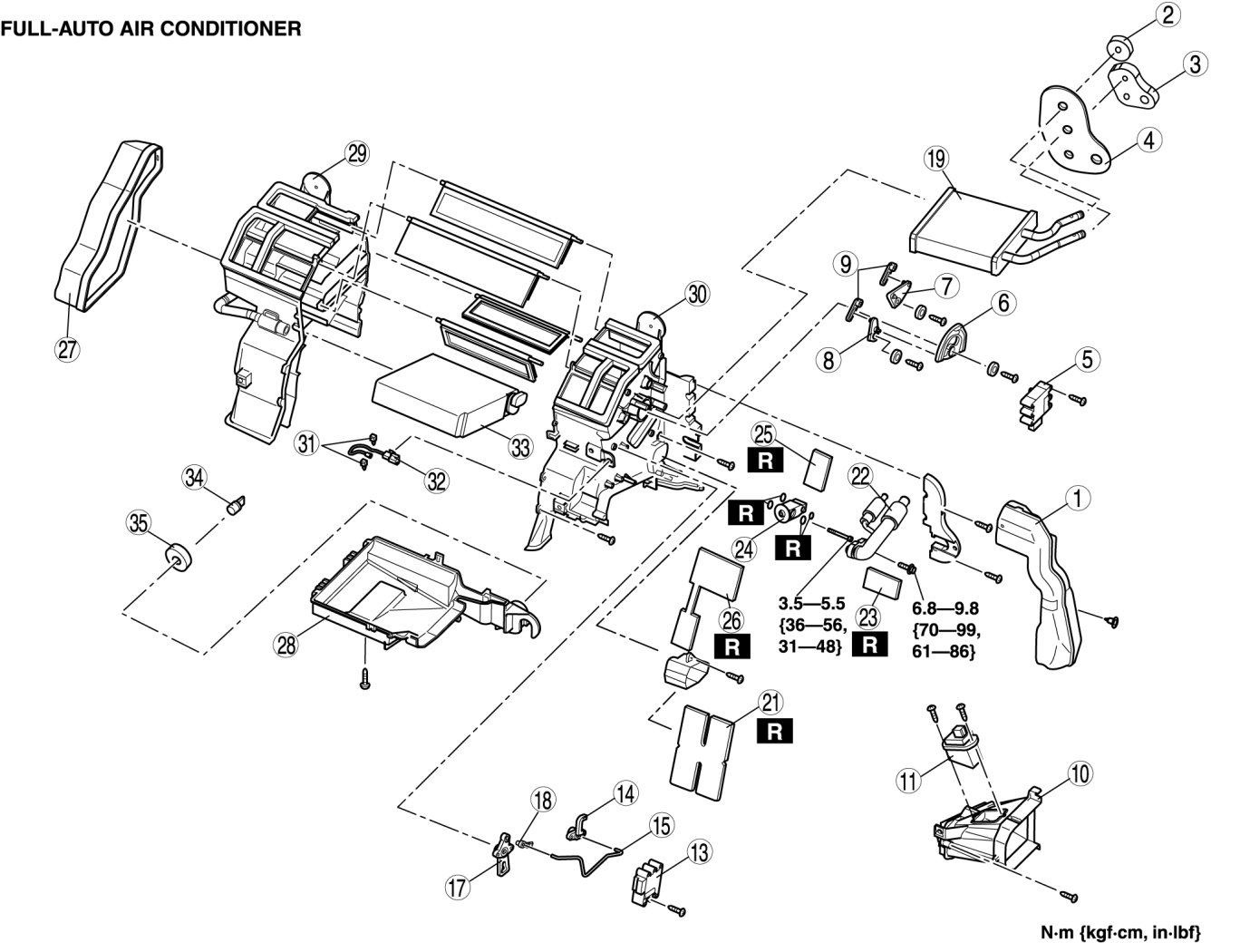

A/C UNIT DISASSEMBLY/ASSEMBLY

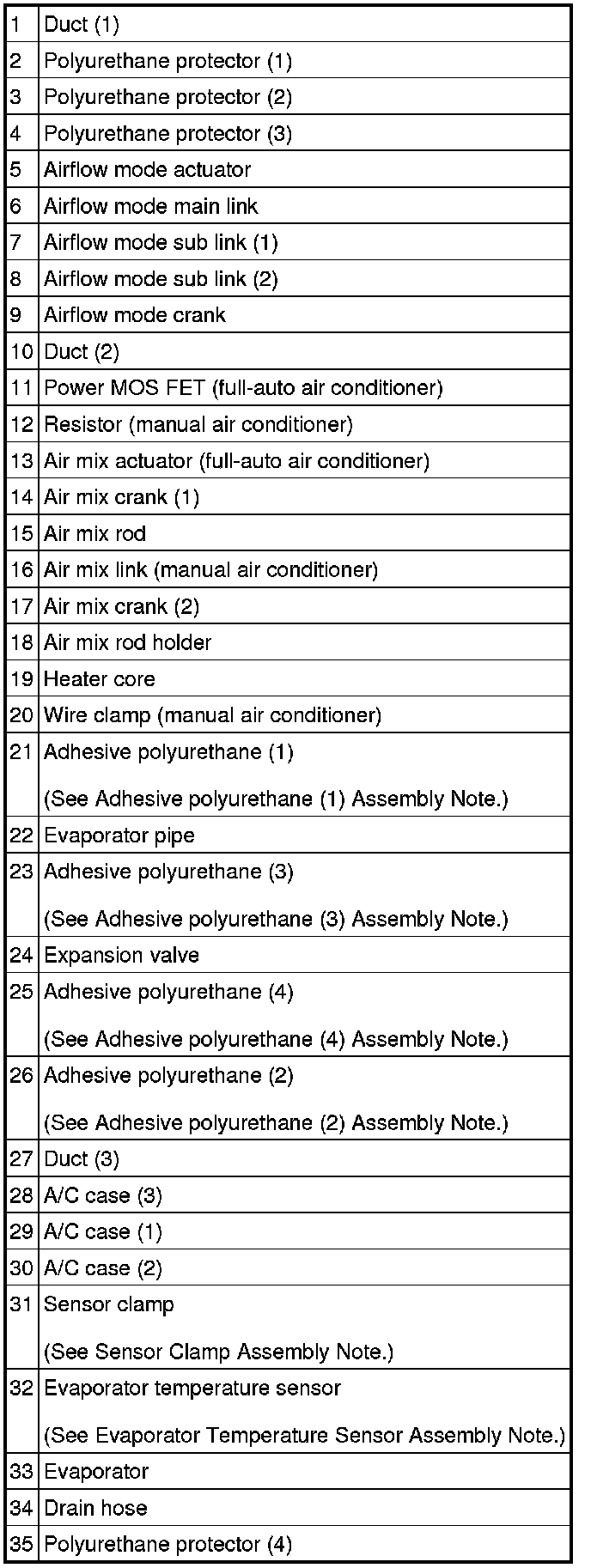

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

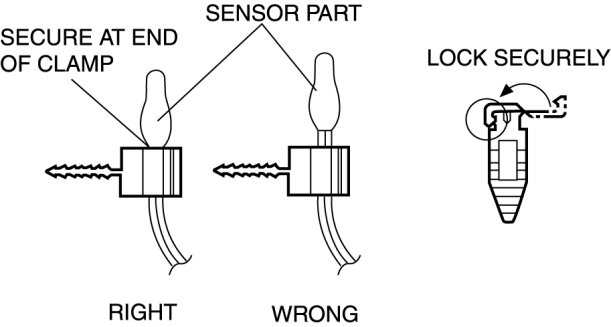

Sensor Clamp Assembly Note

1. Attach the sensor clamp as shown in the figure.

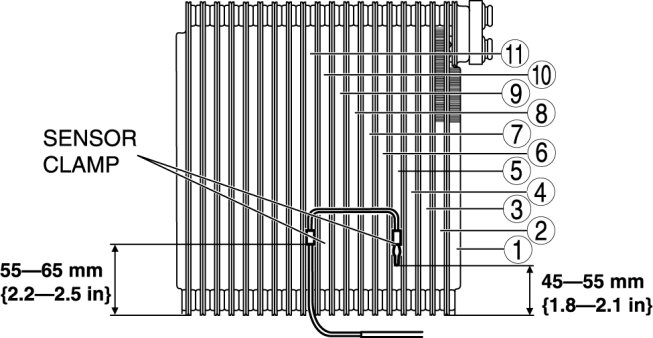

Evaporator Temperature Sensor Assembly Note

1. Assemble the evaporator temperature sensor as shown in the figure.

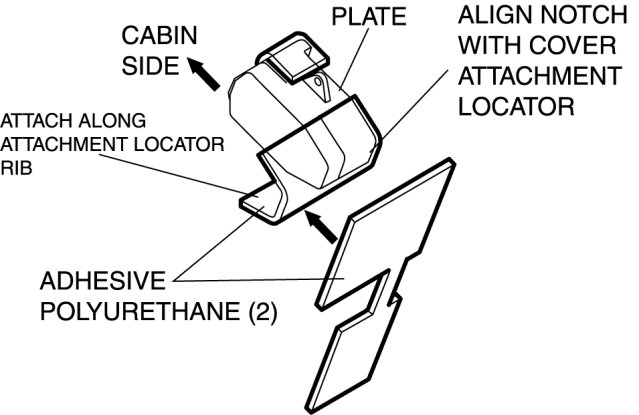

Adhesive polyurethane (2) Assembly Note

1. Attach the adhesive polyurethane (2) as shown in the figure.

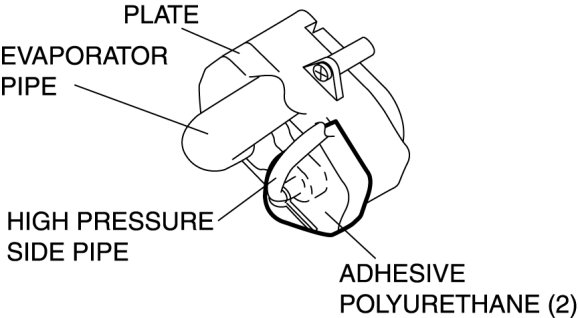

2. After assembling the evaporator pipe as shown in the figure, attach the adhesive polyurethane (2) so that it adheres around the high-pressure side of the evaporator pipe.






Adhesive polyurethane (4) Assembly Note

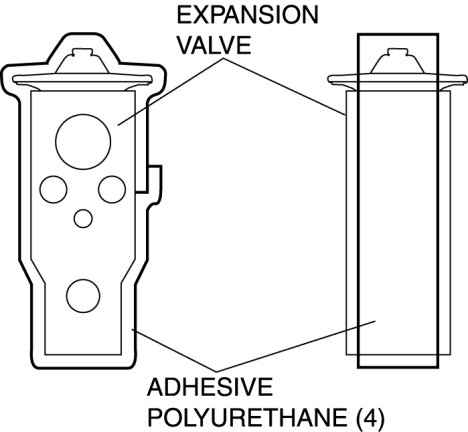

1. Attach the adhesive polyurethane (4) so that it adheres around the expansion valve.

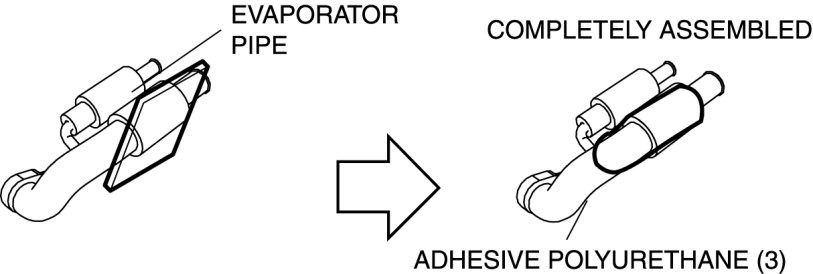

Adhesive polyurethane (3) Assembly Note

1. Attach the adhesive polyurethane (3) so that it adheres around the low-pressure side of the evaporator pipe.

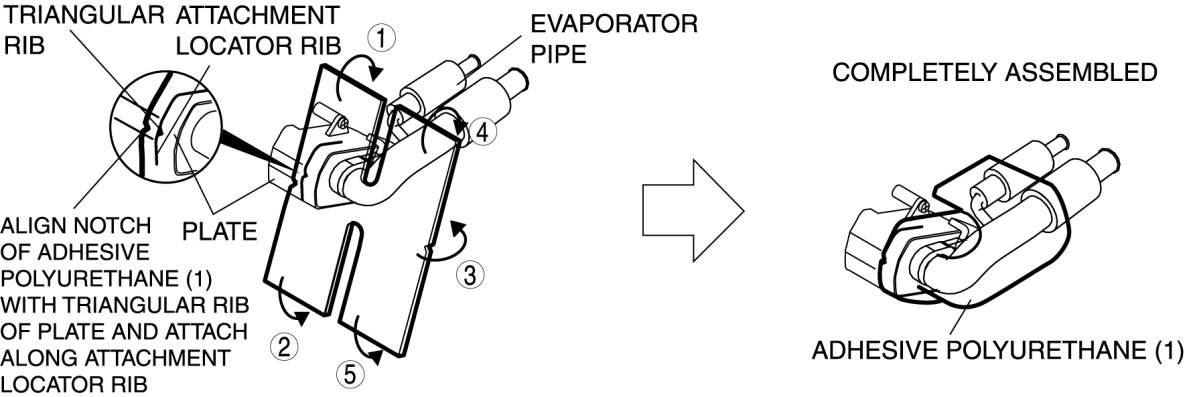

Adhesive polyurethane (1) Assembly Note

1. Attach the adhesive polyurethane (1) as shown in the figure.
