Power Window Main Switch Removal/Installation

POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the inner garnish. (See Inner Garnish Removal/Installation)

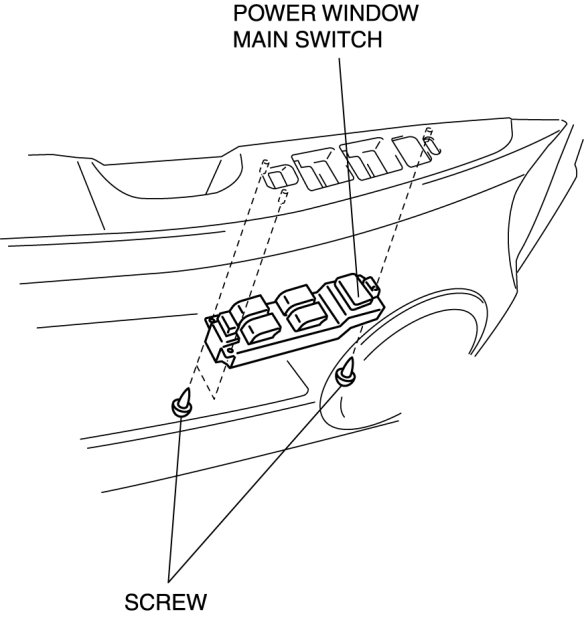

3. Remove the front door trim. (See Front Door Trim Removal/Installation)

4. Disconnect the power door mirror switch connector and the power window main switch connector.

5. Remove the screws, then the power window main switch.






6. Install in the reverse order of removal.
