Wiper Switch: Service and Repair

WIPER AND WASHER SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the column cover. Service and Repair

3. Disconnect the wiper and washer switch connector.

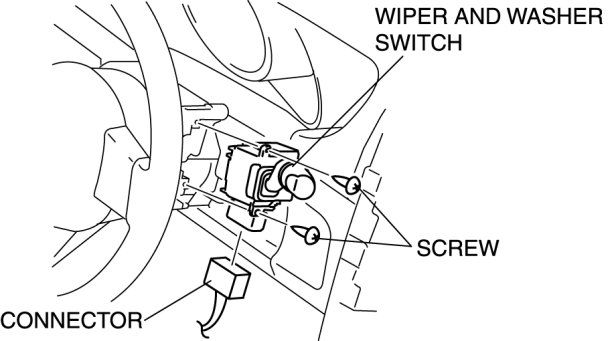

4. Remove the screws, then remove the wiper and washer switch.

5. Install in the reverse order of removal.
