Power Mirror Switch: Testing and Inspection

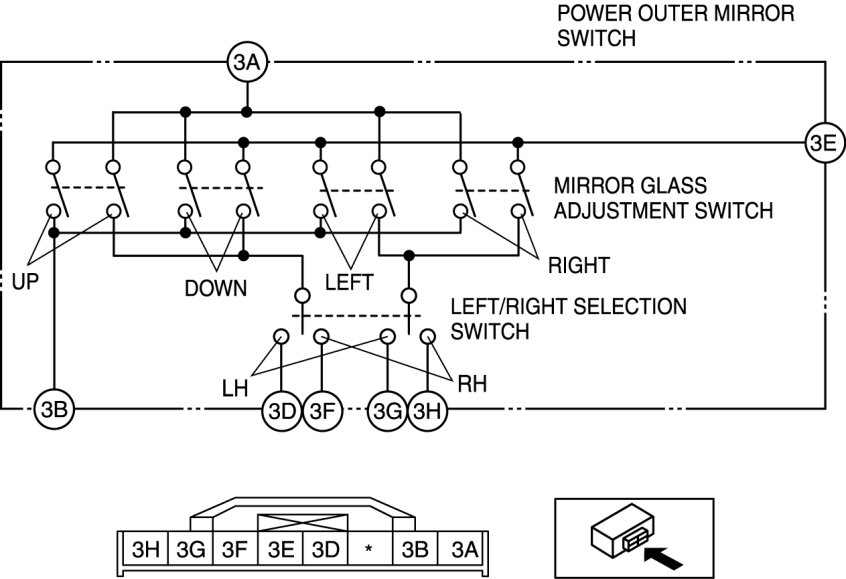

POWER OUTER MIRROR SWITCH INSPECTION

1. Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.

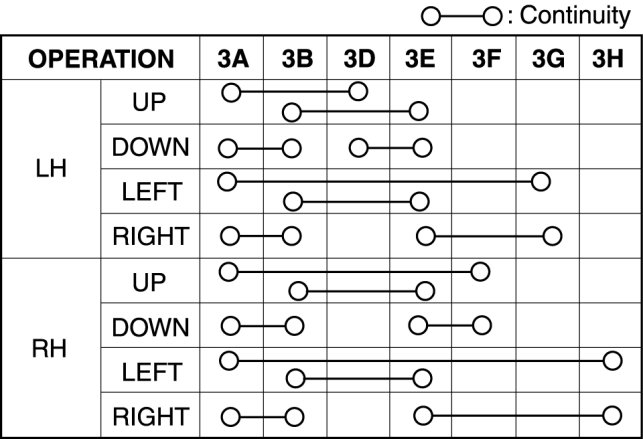

- If not as indicated in the table, replace the power outer mirror switch.
