Traction Control Switch: Testing and Inspection

TCS OFF SWITCH INSPECTION

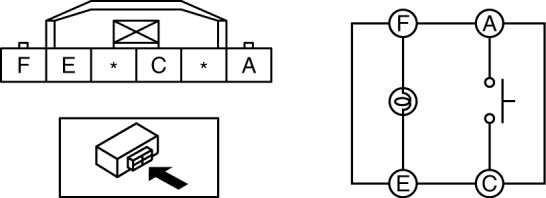

1. Remove the TCS OFF switch. Service and Repair

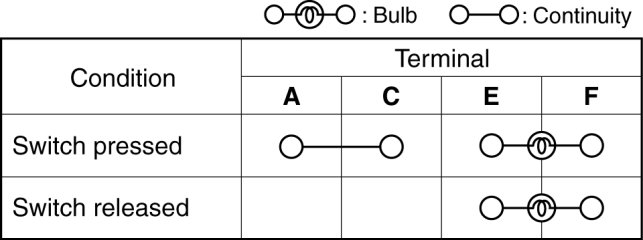

2. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the TCS OFF switch.
