Home >> Mazda >> 2012 >> CX-9 AWD V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations >> Connector Locations
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

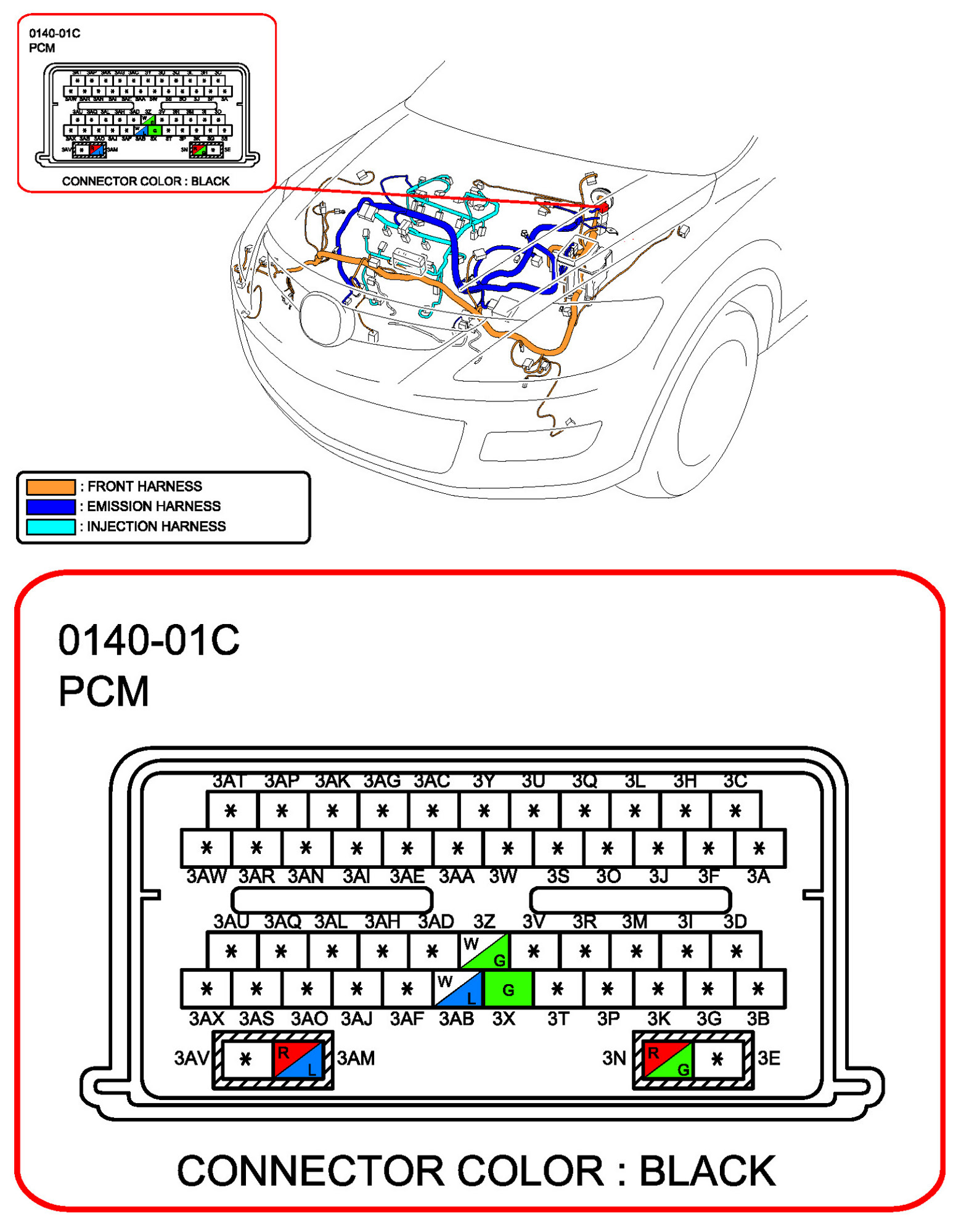

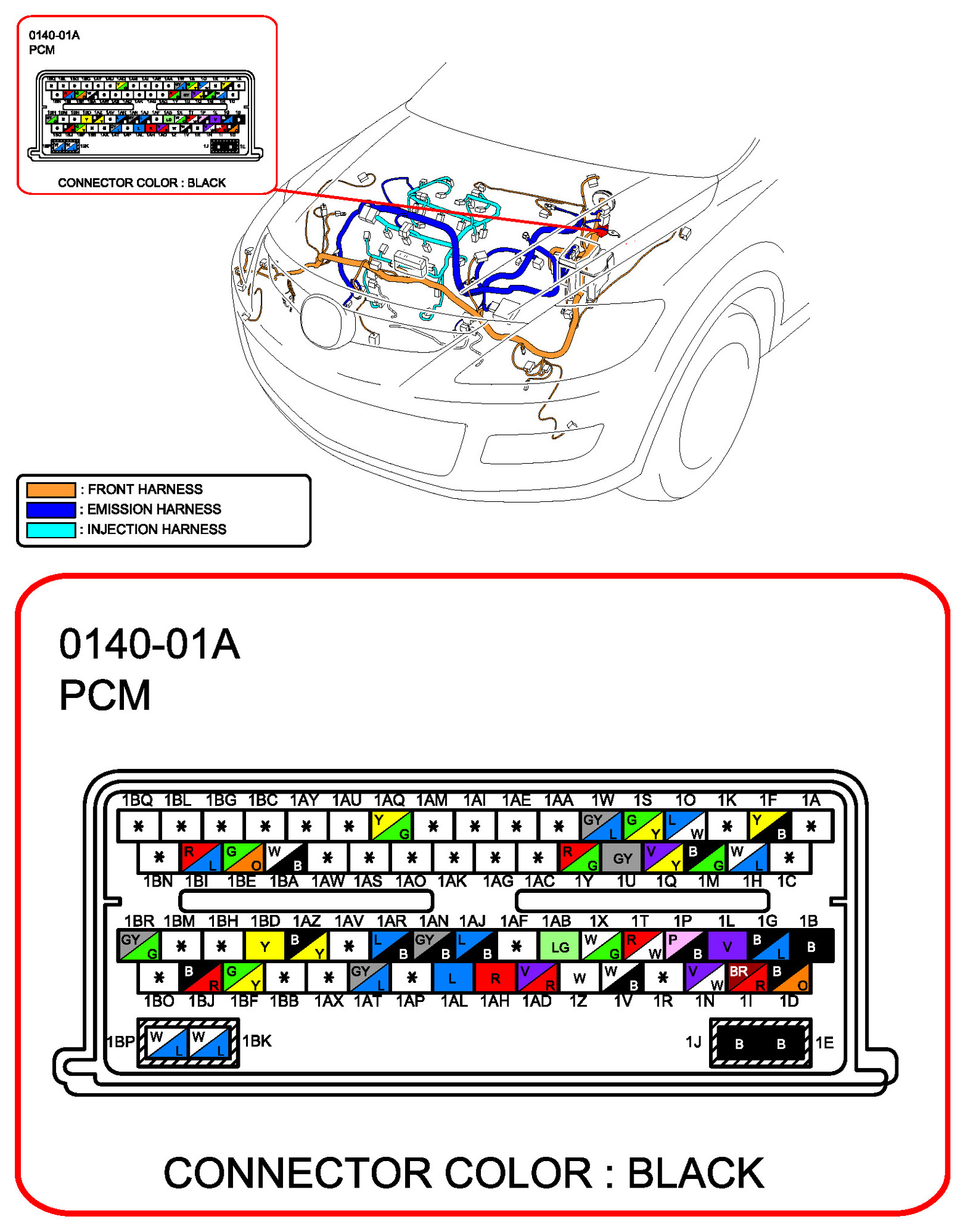

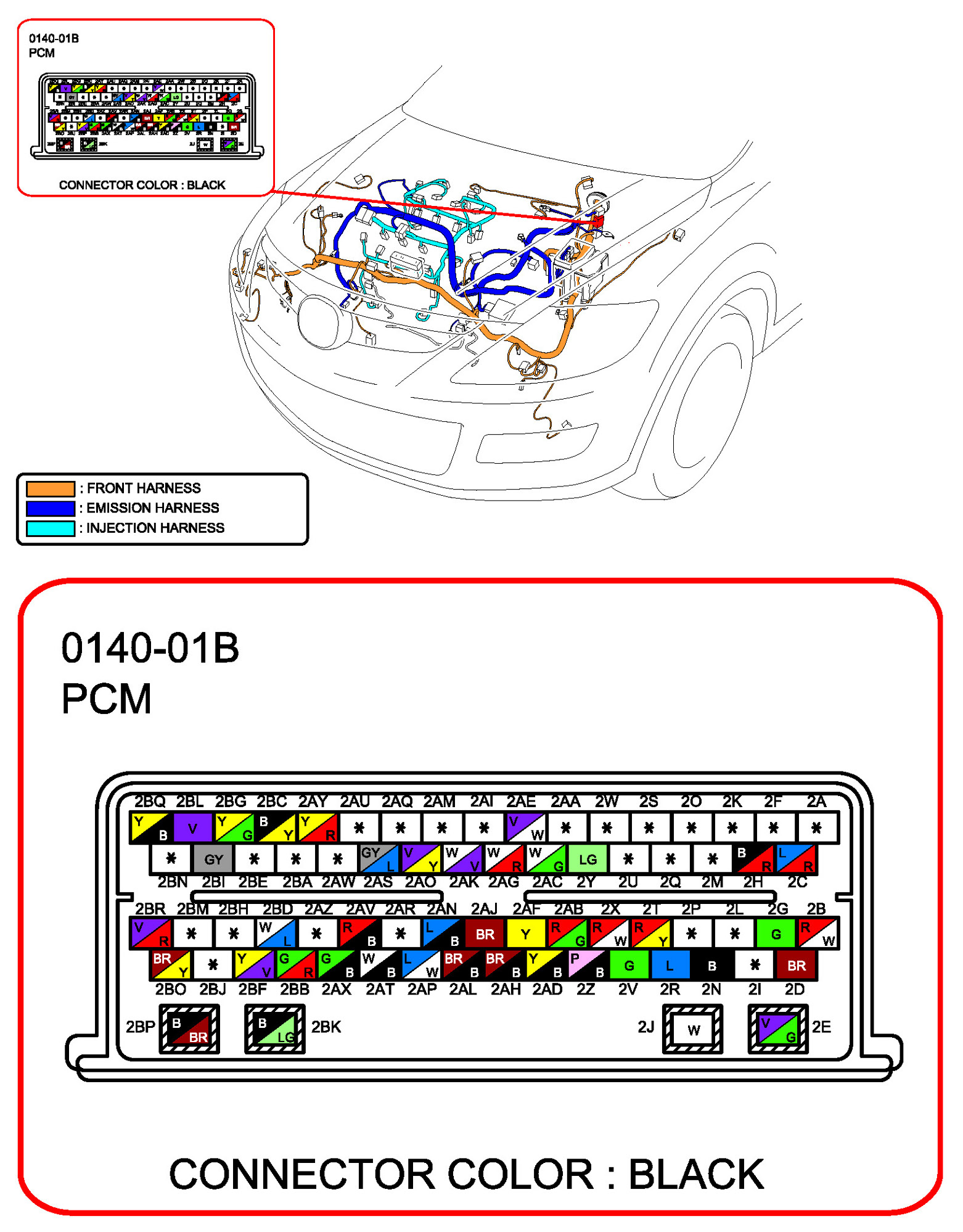

Connector Locations
