Ball Joint

Ball Joint

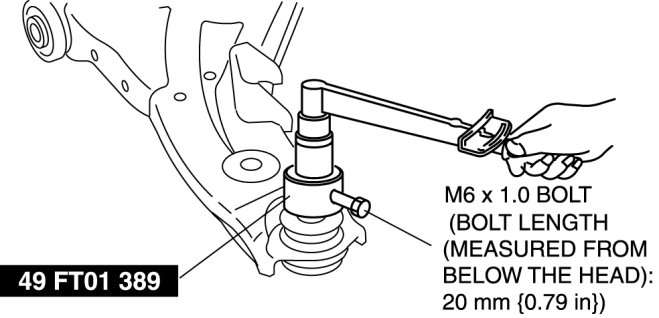

Rotate the ball joint stud 5 times. Install the SST and M6 x 1.0 bolt (bolt length (measured from below the head): 20 mm {0.79 in}) to the ball joint stud, measure the rotational torque using a torque wrench.






If not within the specification, replace the lower arm.

Front lower arm rotational torque 2.62 Nm {26.7 kgf-cm, 23.1 in-lbf} max.
