Cowl: Service and Repair

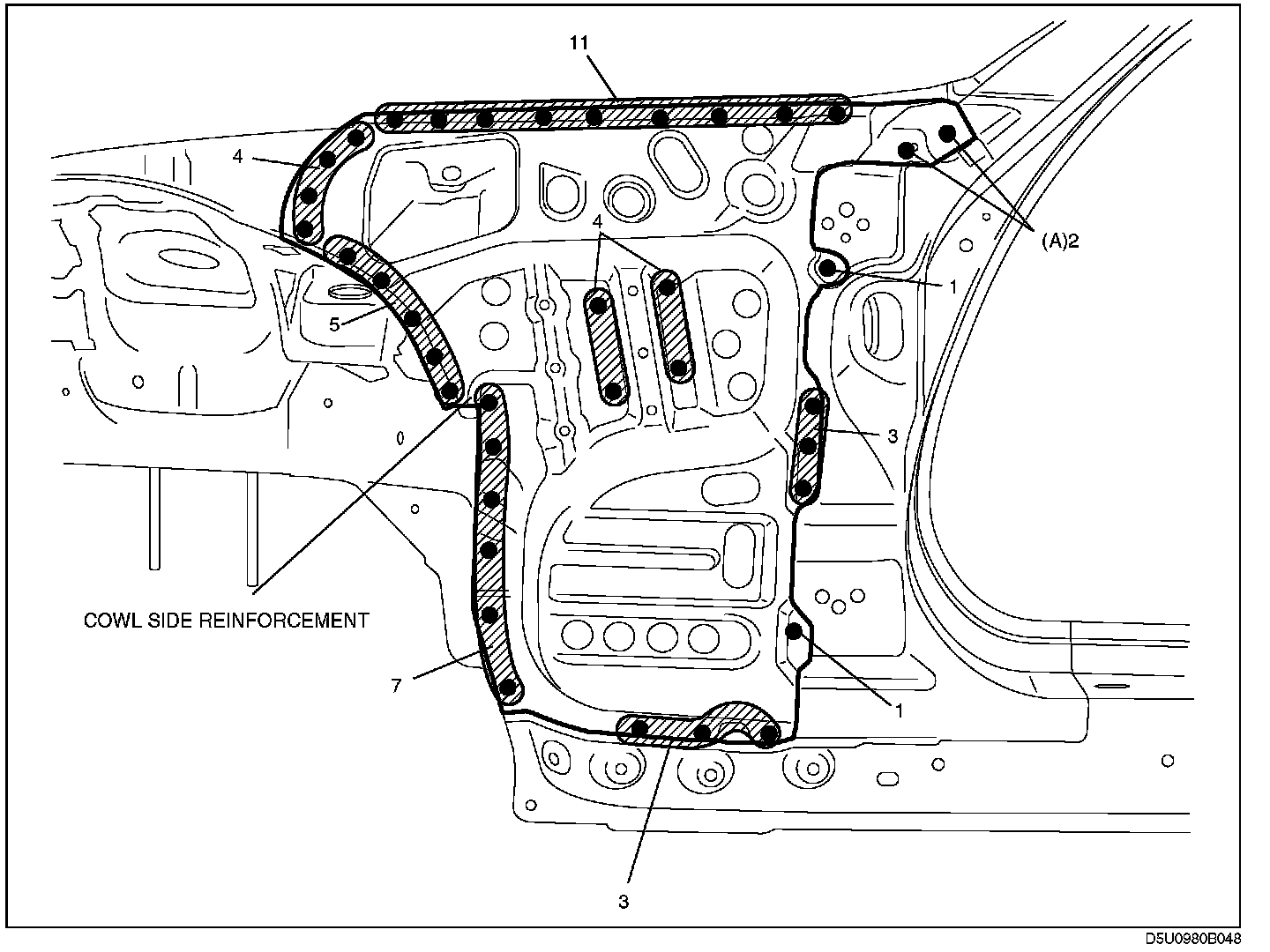

COWL SIDE REINFORCEMENT REMOVAL[PANEL REPLACEMENT]

1. Remove the cowl side reinforcement.

CAUTION: Be careful not to damage the windshield when drilling the 2 locations indicated by (A).

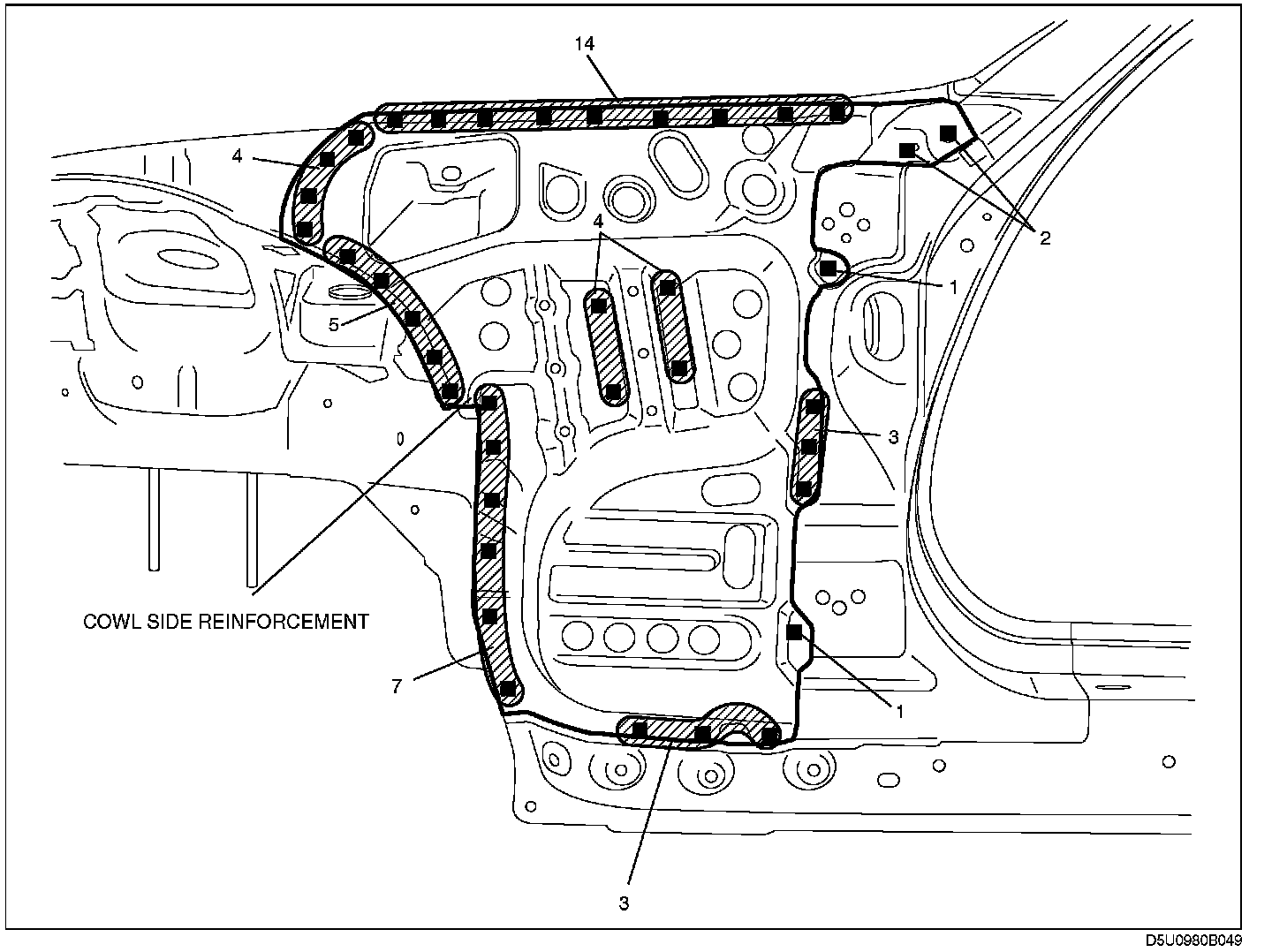

COWL SIDE REINFORCEMENT INSTALLATION[PANEL REPLACEMENT]

1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for plug welds before installing new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.
