Component Locations





SECURITY AND LOCKS LOCATION INDEX

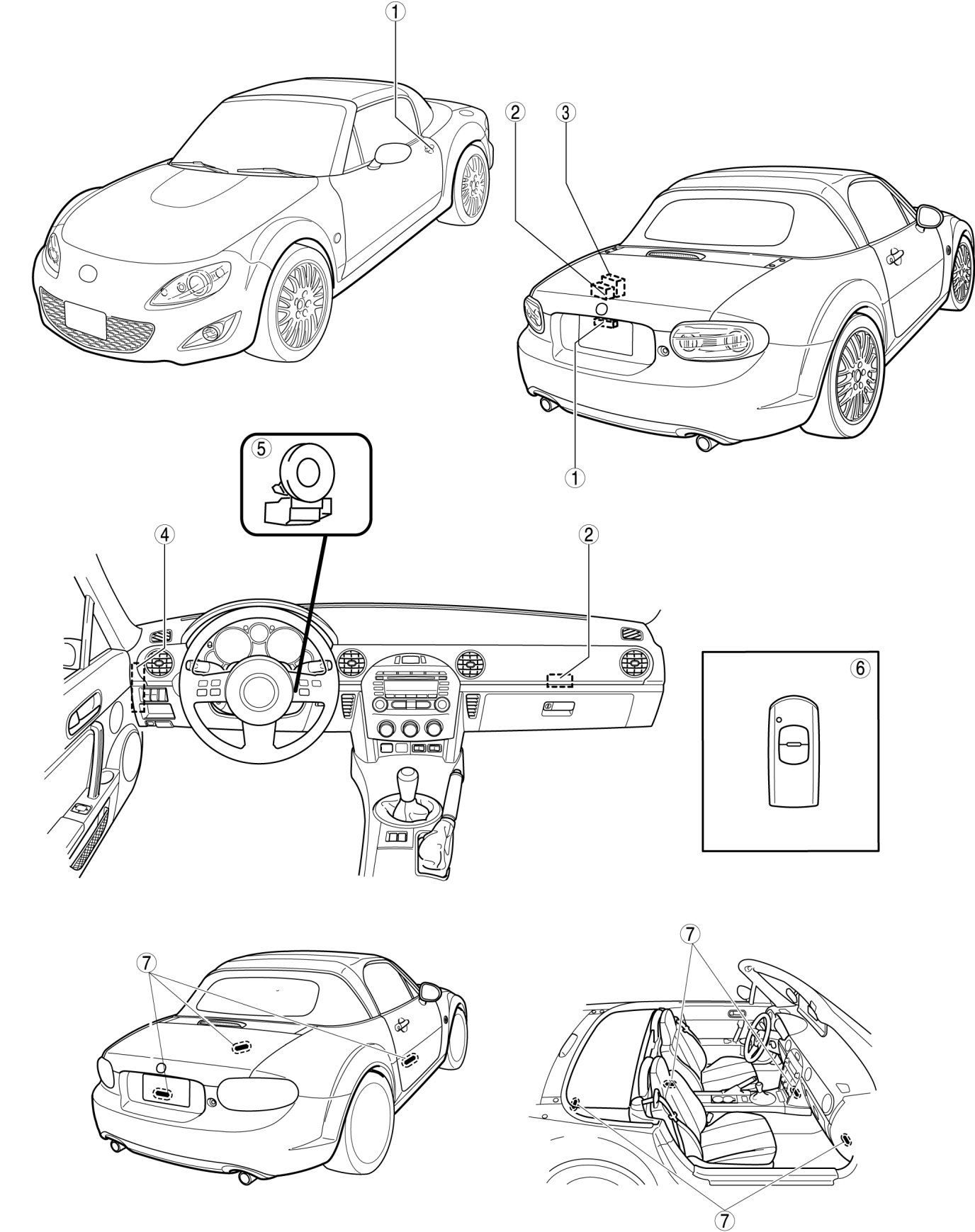

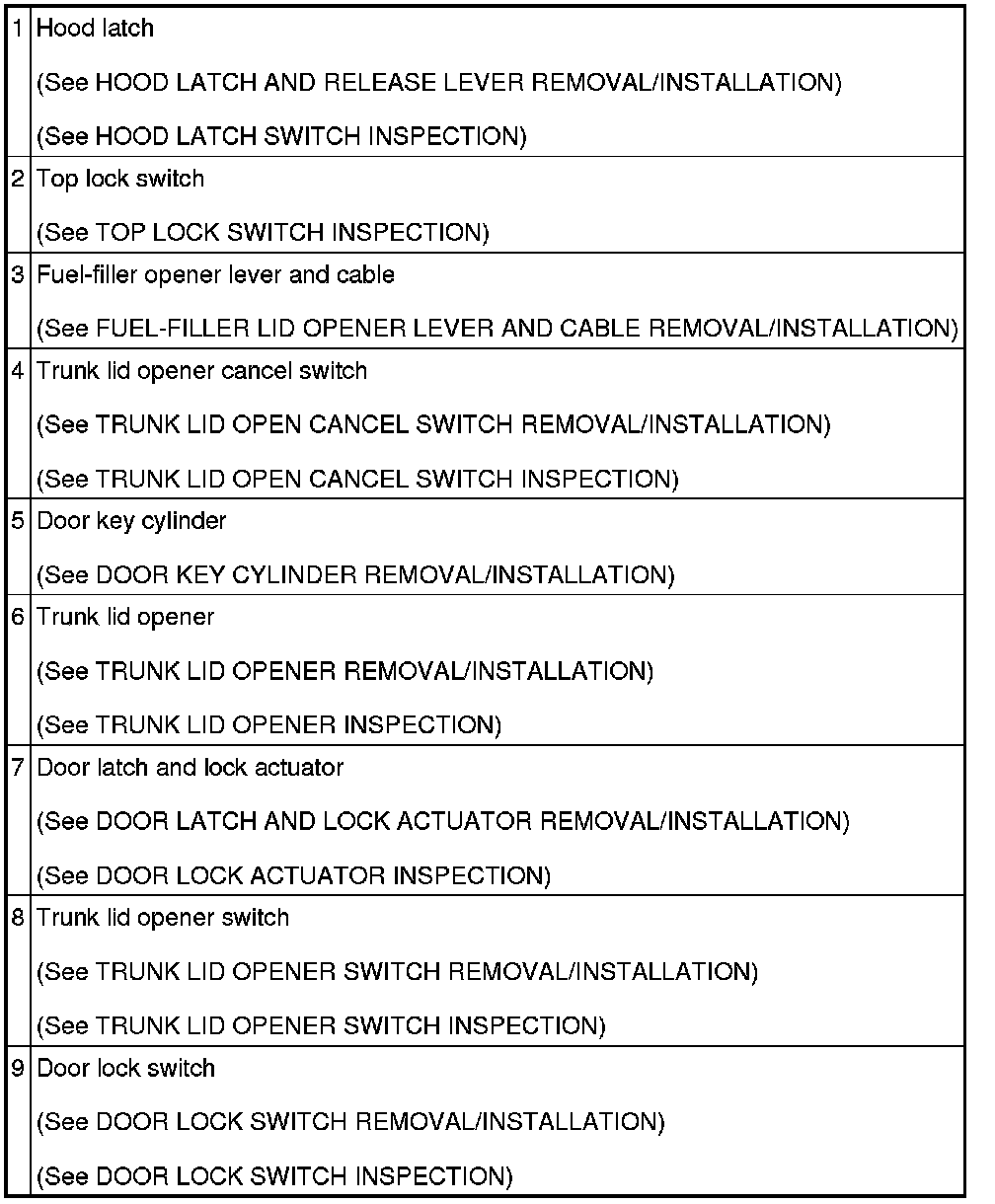

Locks and Openers

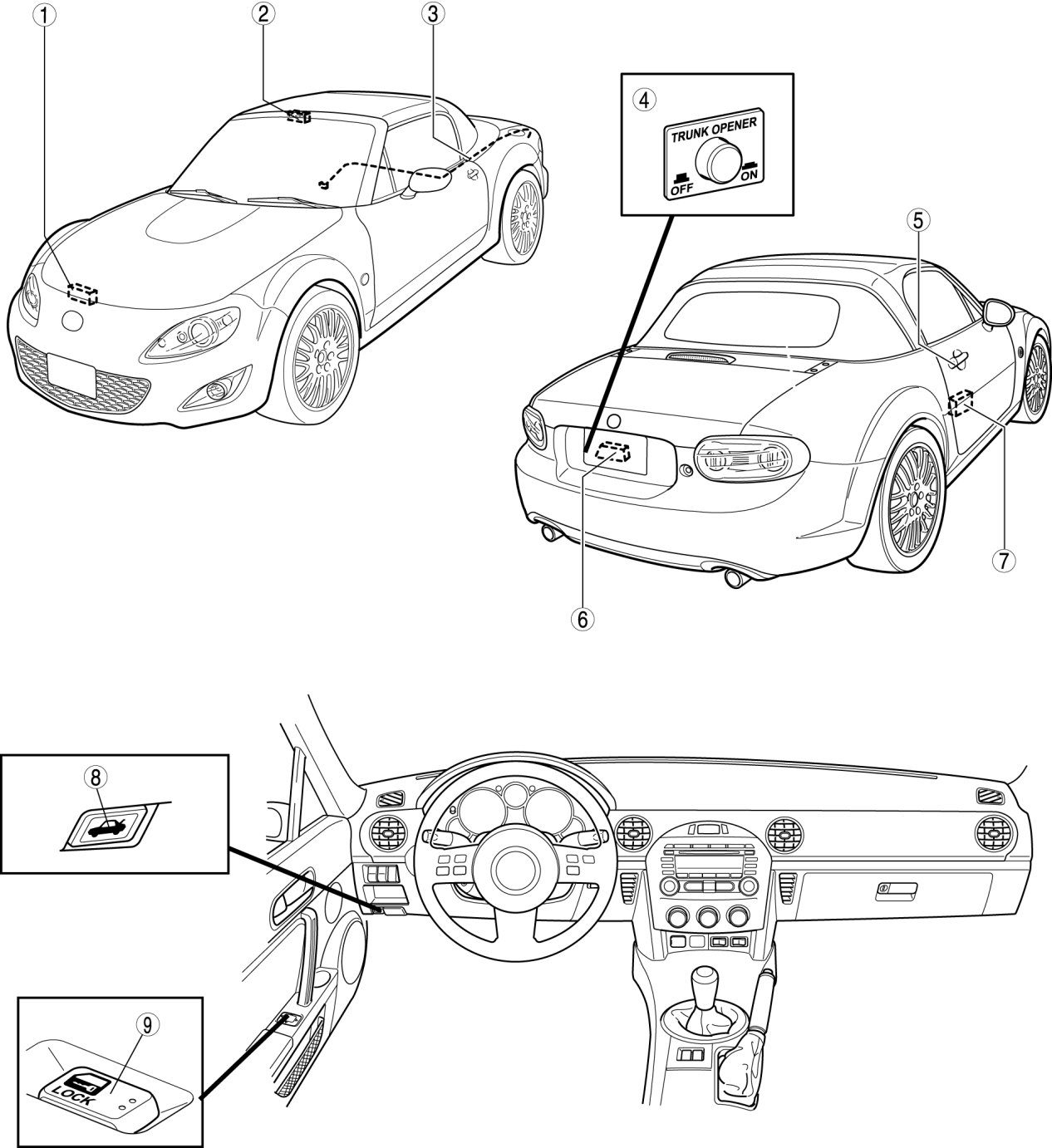

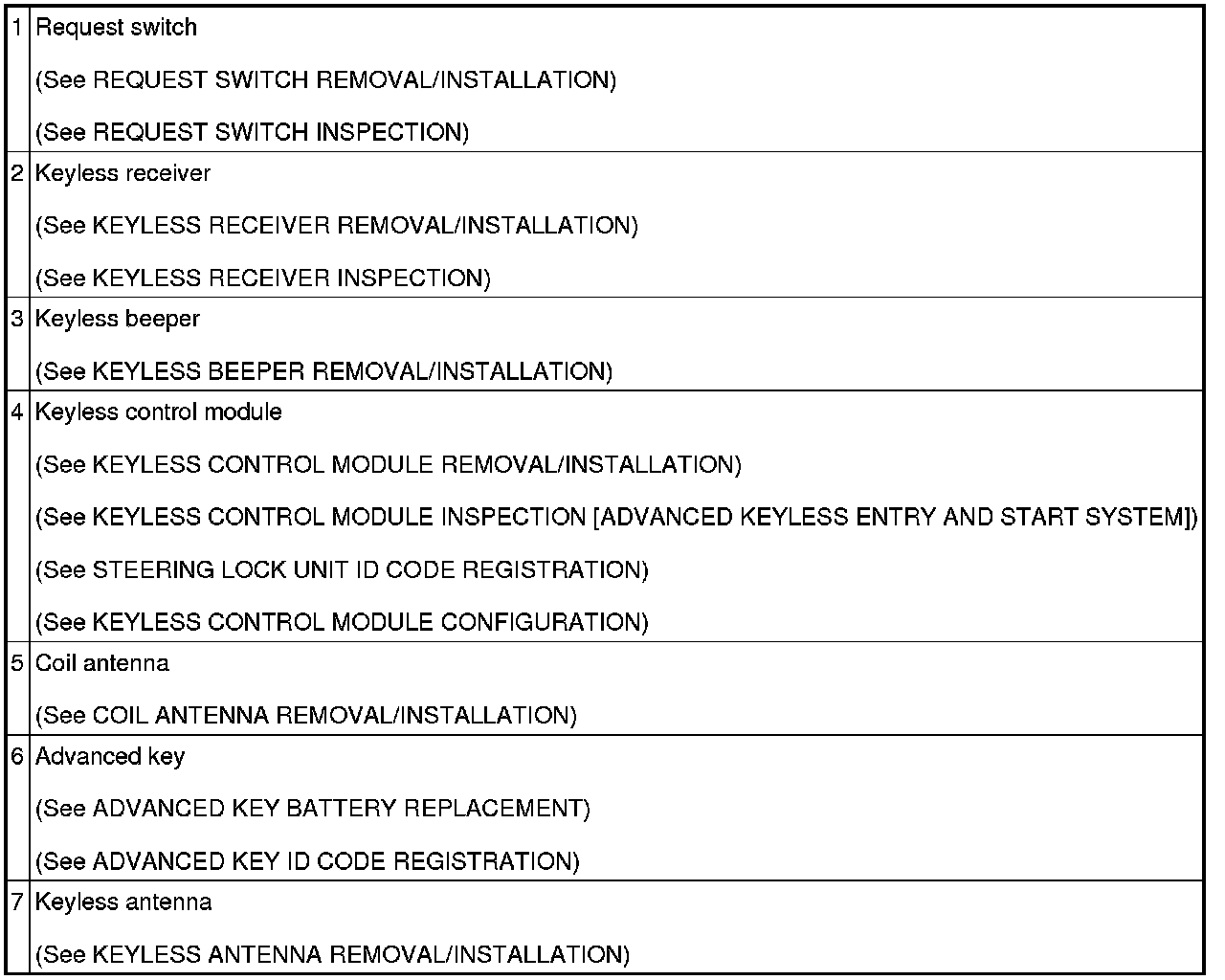

Advanced Keyless Entry And Start System and Immobilizer System

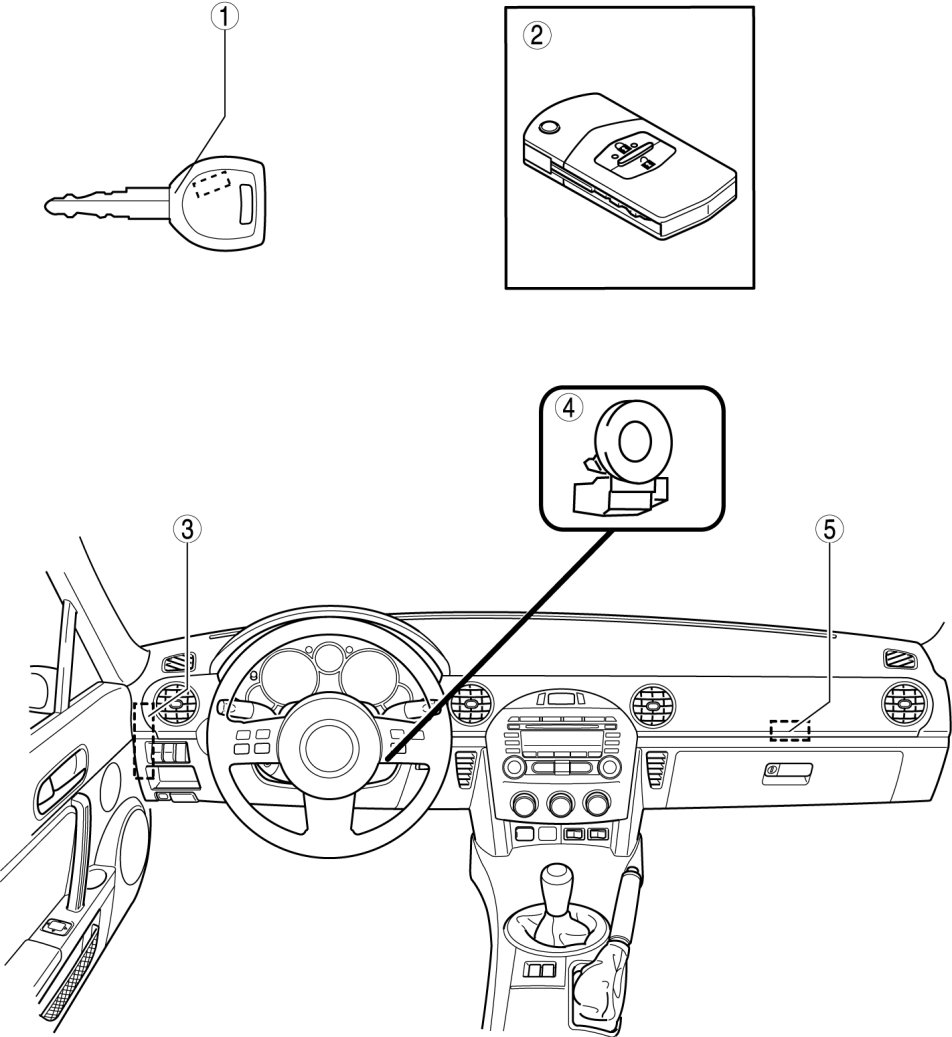

Keyless Entry System and Immobilizer System
