Full-Auto Air Conditioner

CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the side wall. Side Wall Removal/Installation

4. Remove the center panel unit. Center Panel Unit Removal/Installation

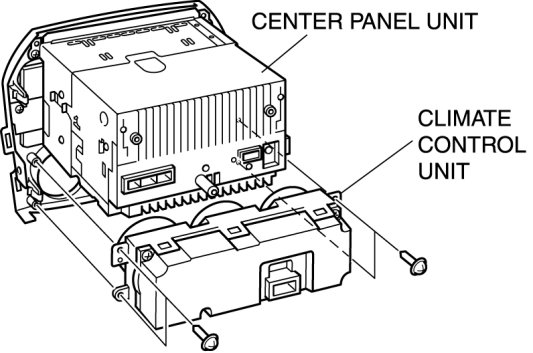

5. Remove the climate control unit from the center panel unit.






6. Install in the reverse order of removal.
