Home >> Mazda >> 2012 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Components >> Audio Unit >> Audio System (Bose(R) Type Audio)
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

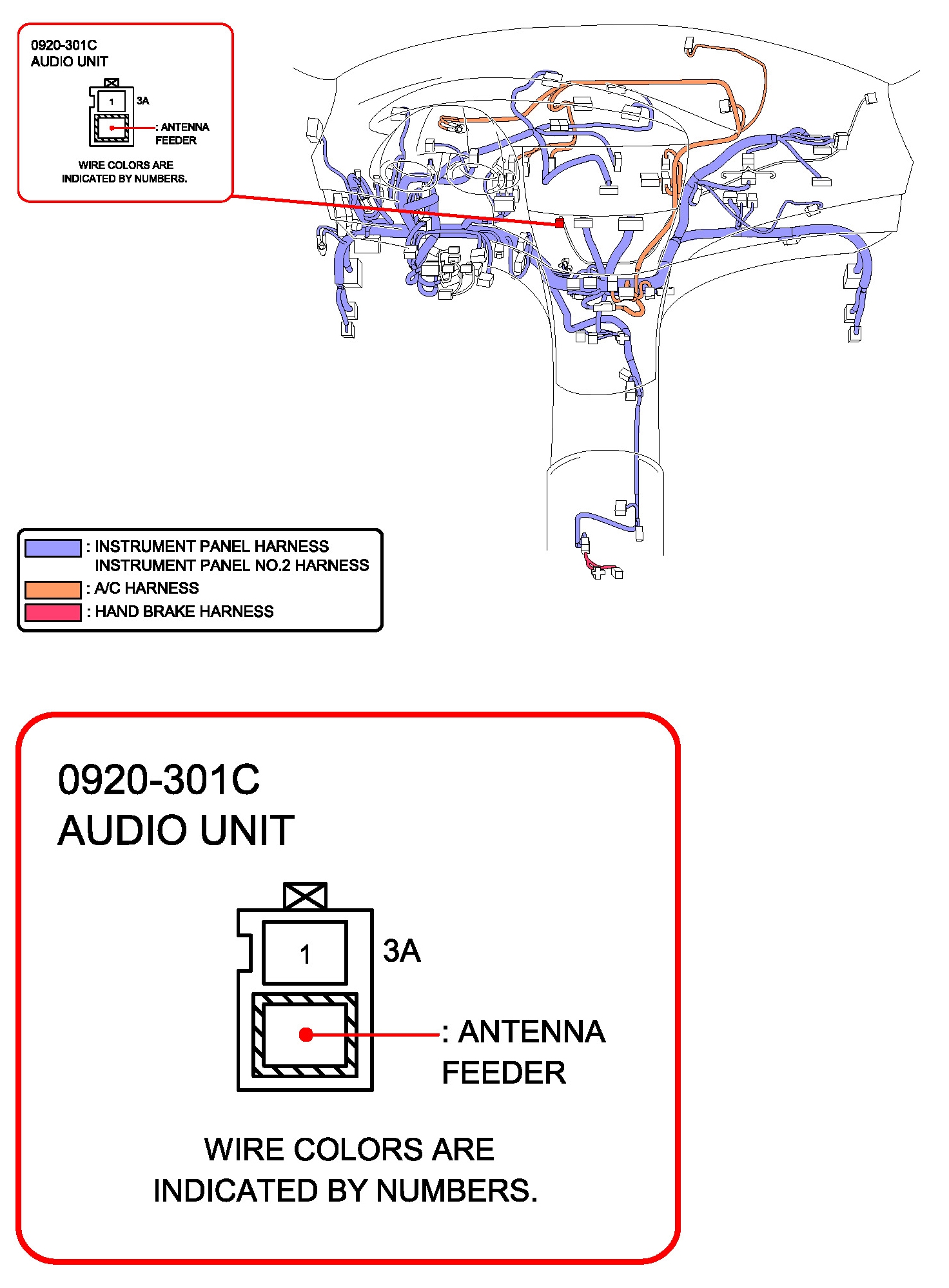

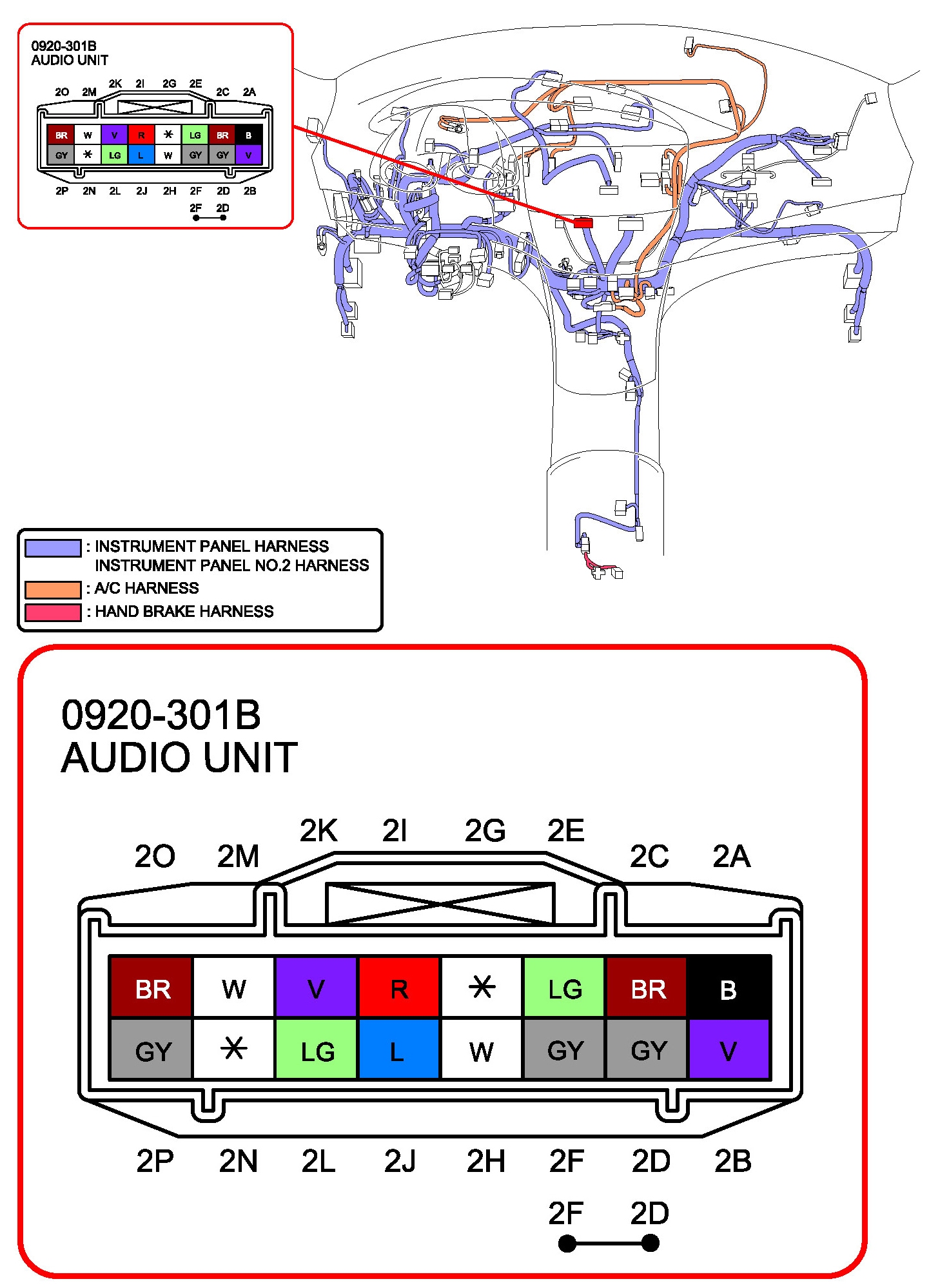

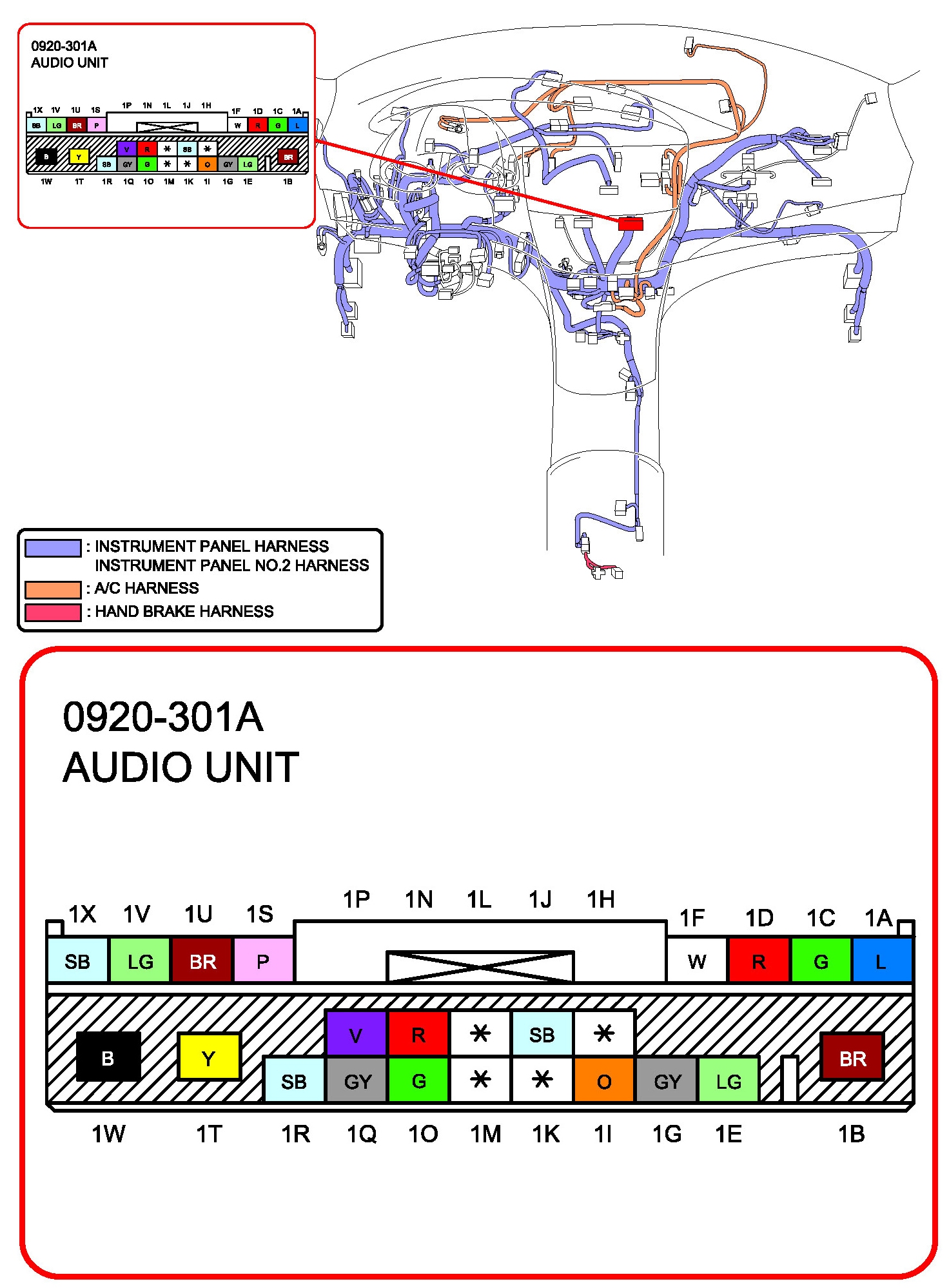

Audio System (Bose(R) Type Audio)
