Quick Diagnostic Chart

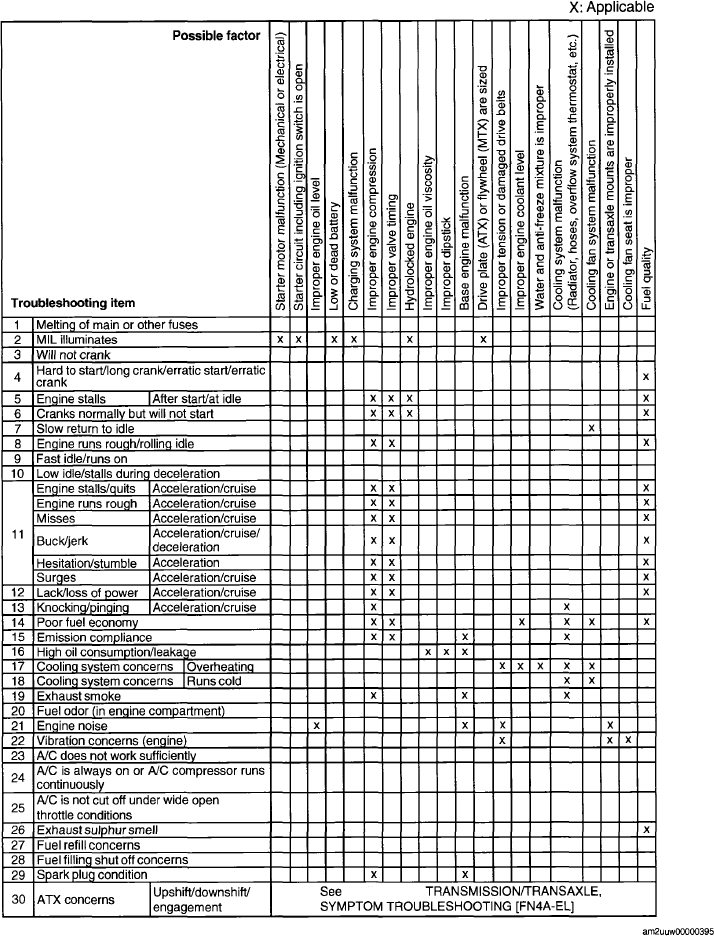

Fig 1: Quick Diagnostic Chart (1 Of 4)
G09129986

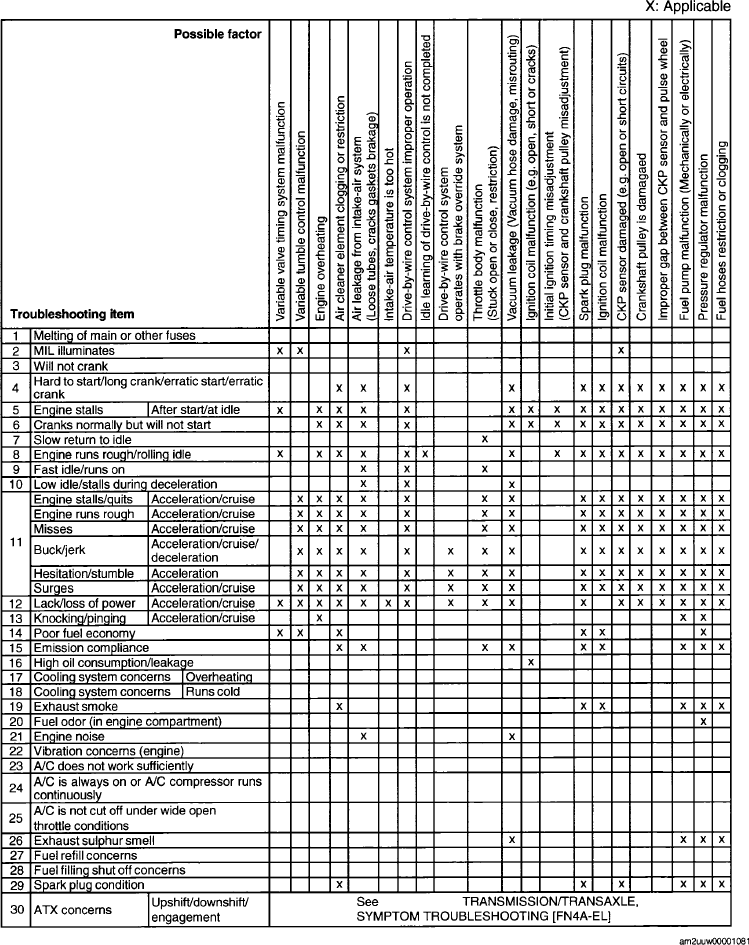

Fig 2: Quick Diagnostic Chart (2 Of 4)
G09129987

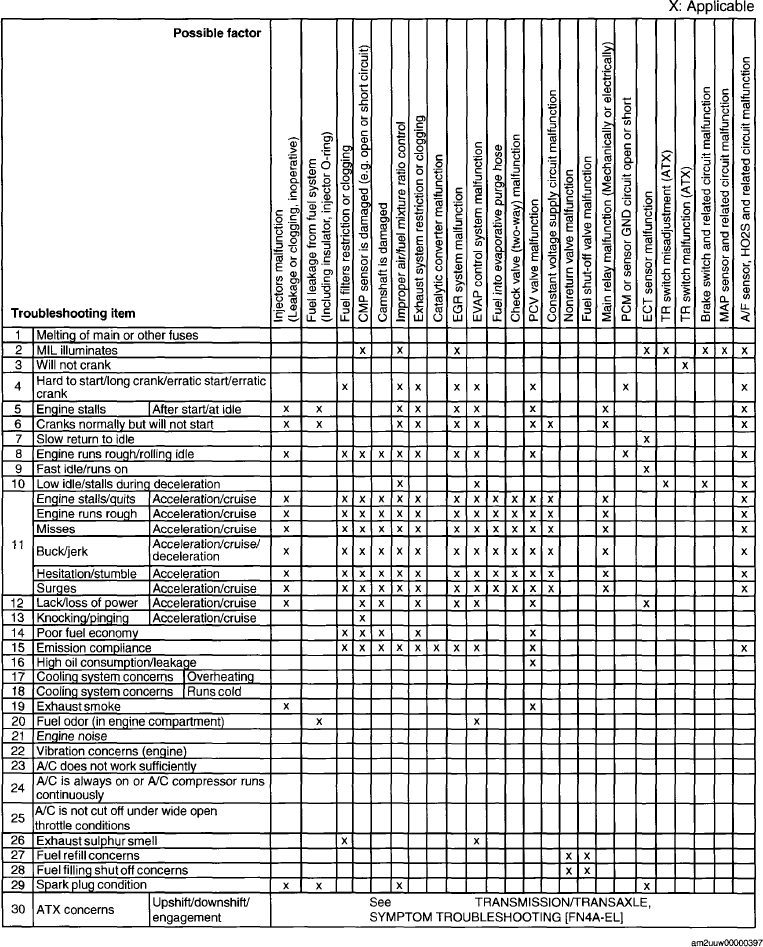

Fig 3: Quick Diagnostic Chart (3 Of 4)
G09129988

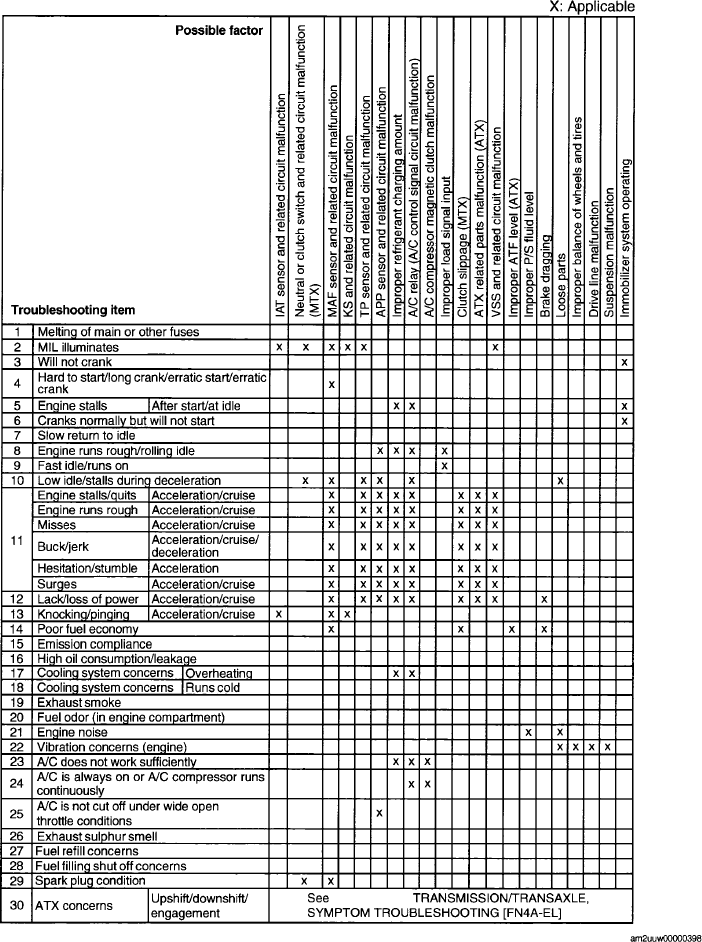

Fig 4: Quick Diagnostic Chart (4 Of 4)
G09129989
