Fuse: Locations

Fuse Location

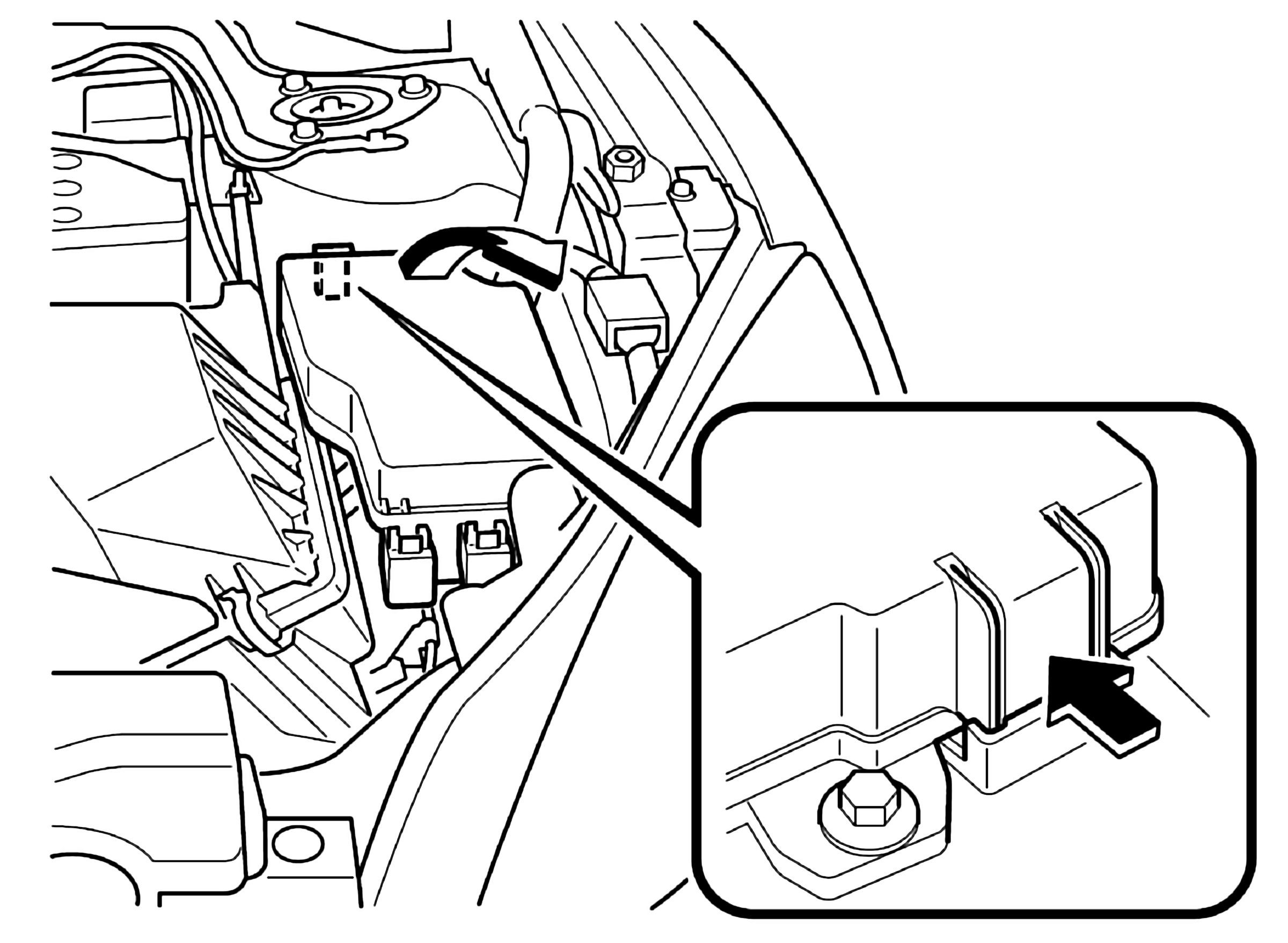

Engine Compartment Fuse Block Location:

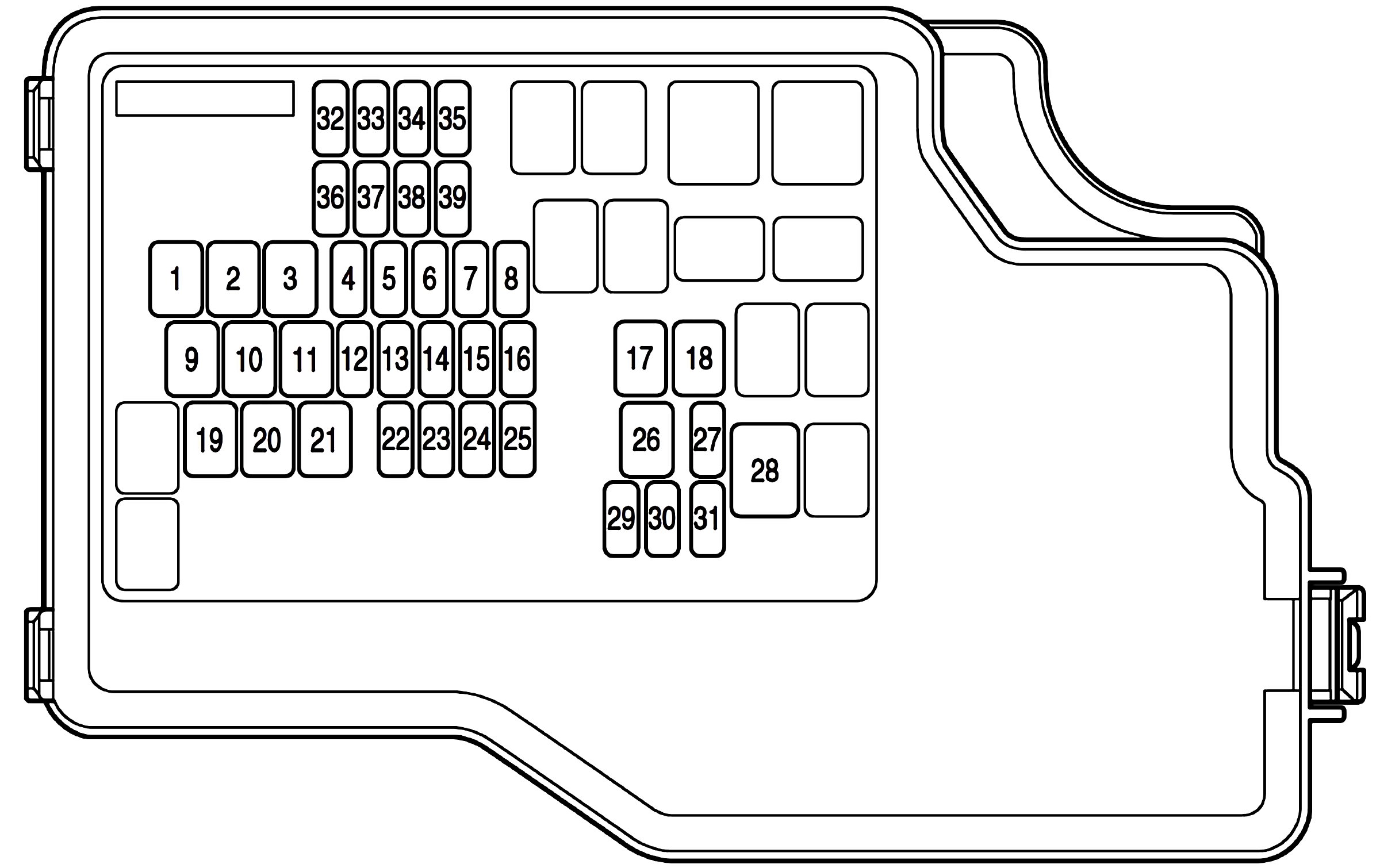

Fuse Block (Engine Compartment):

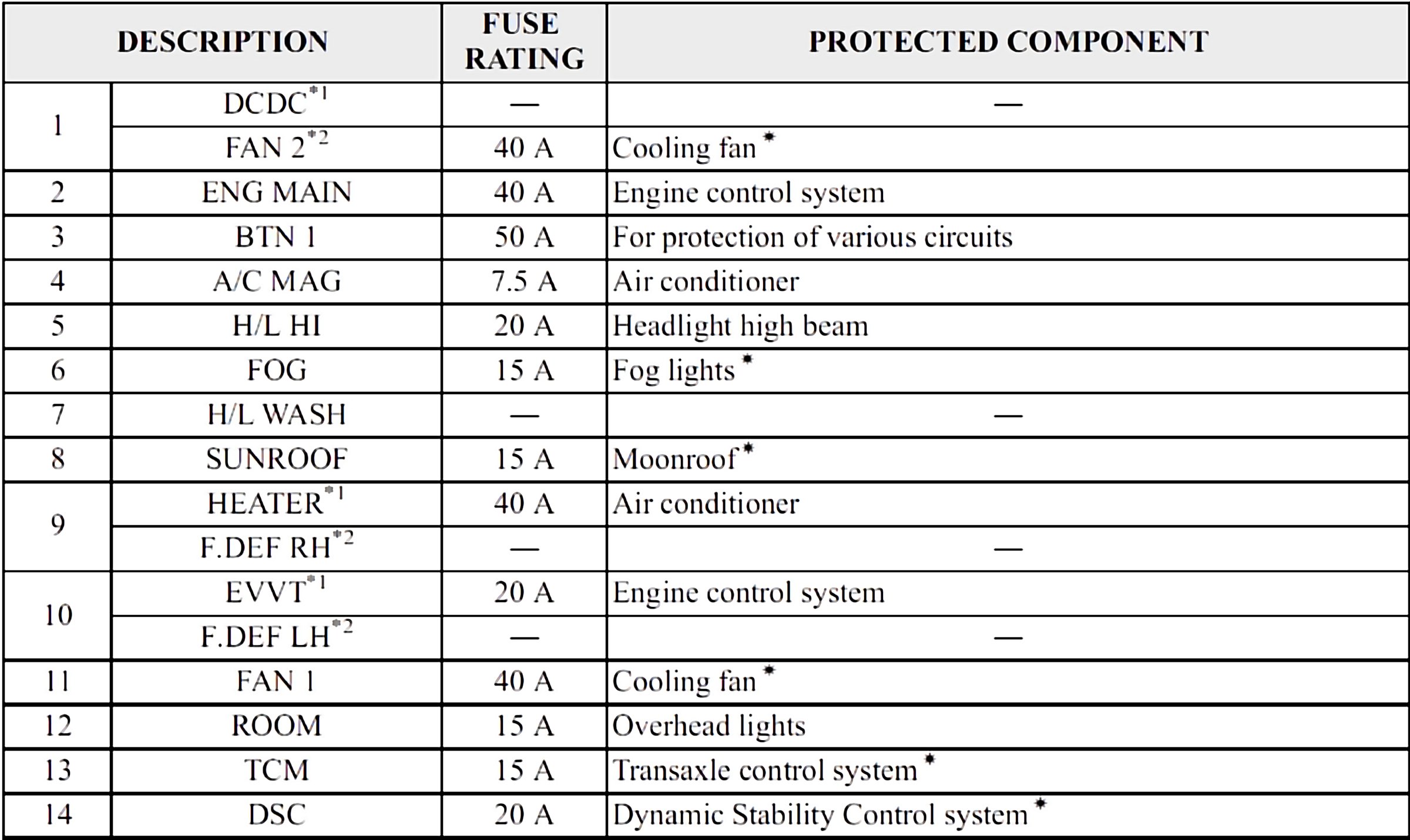

Fuses 1-14:

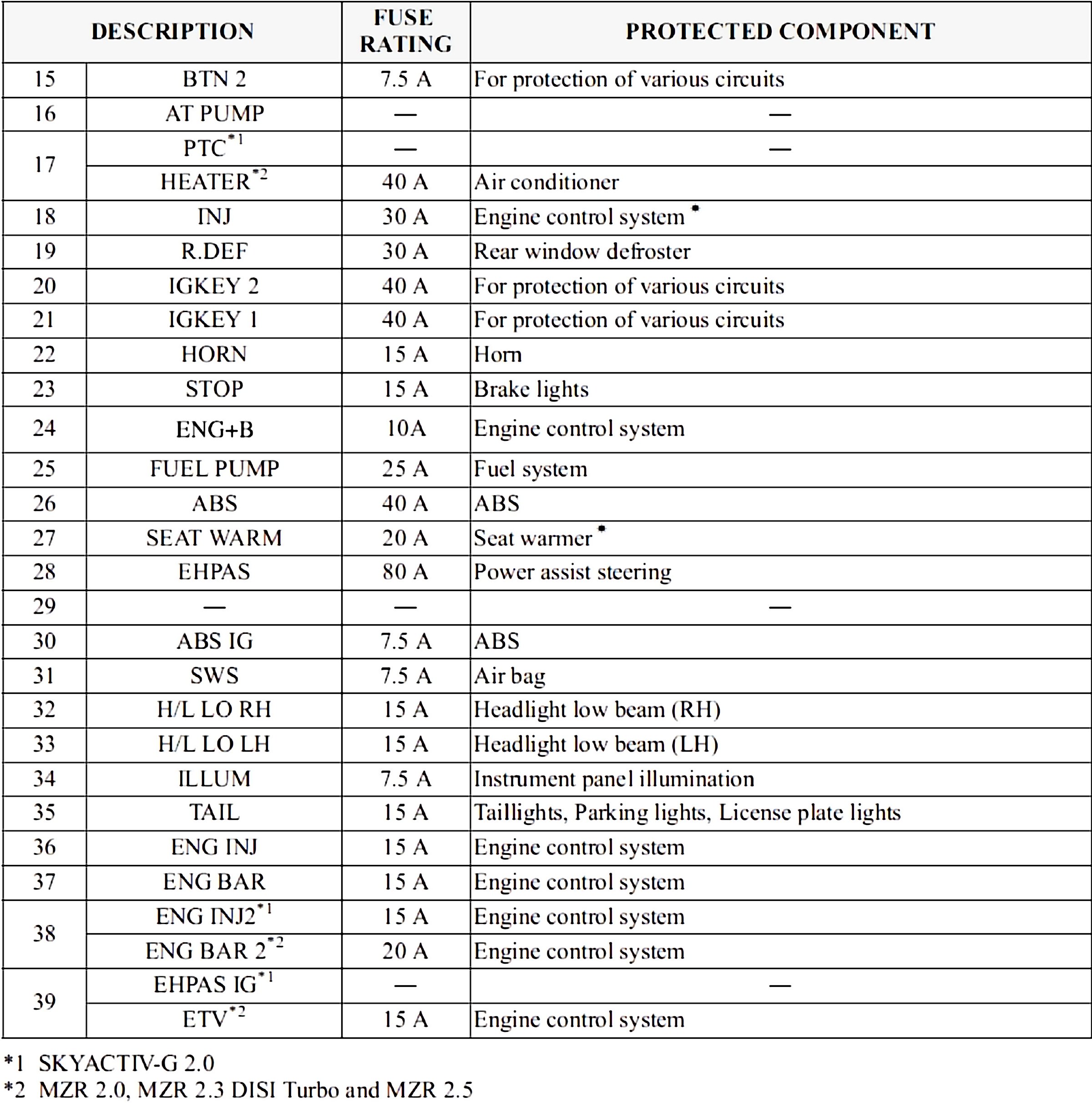

Fuses 15-39:

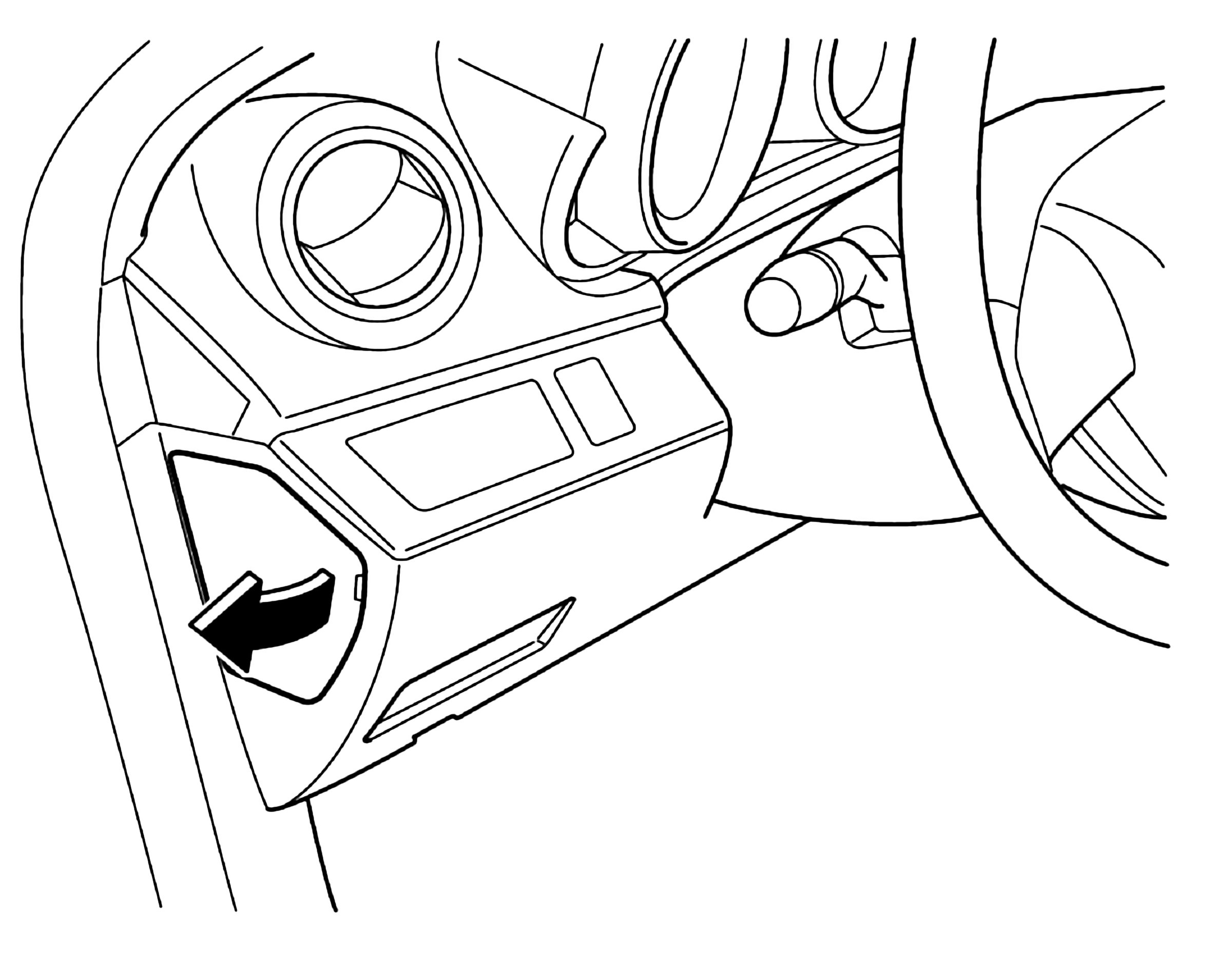

Interior Fuse Block Location - Left Side:

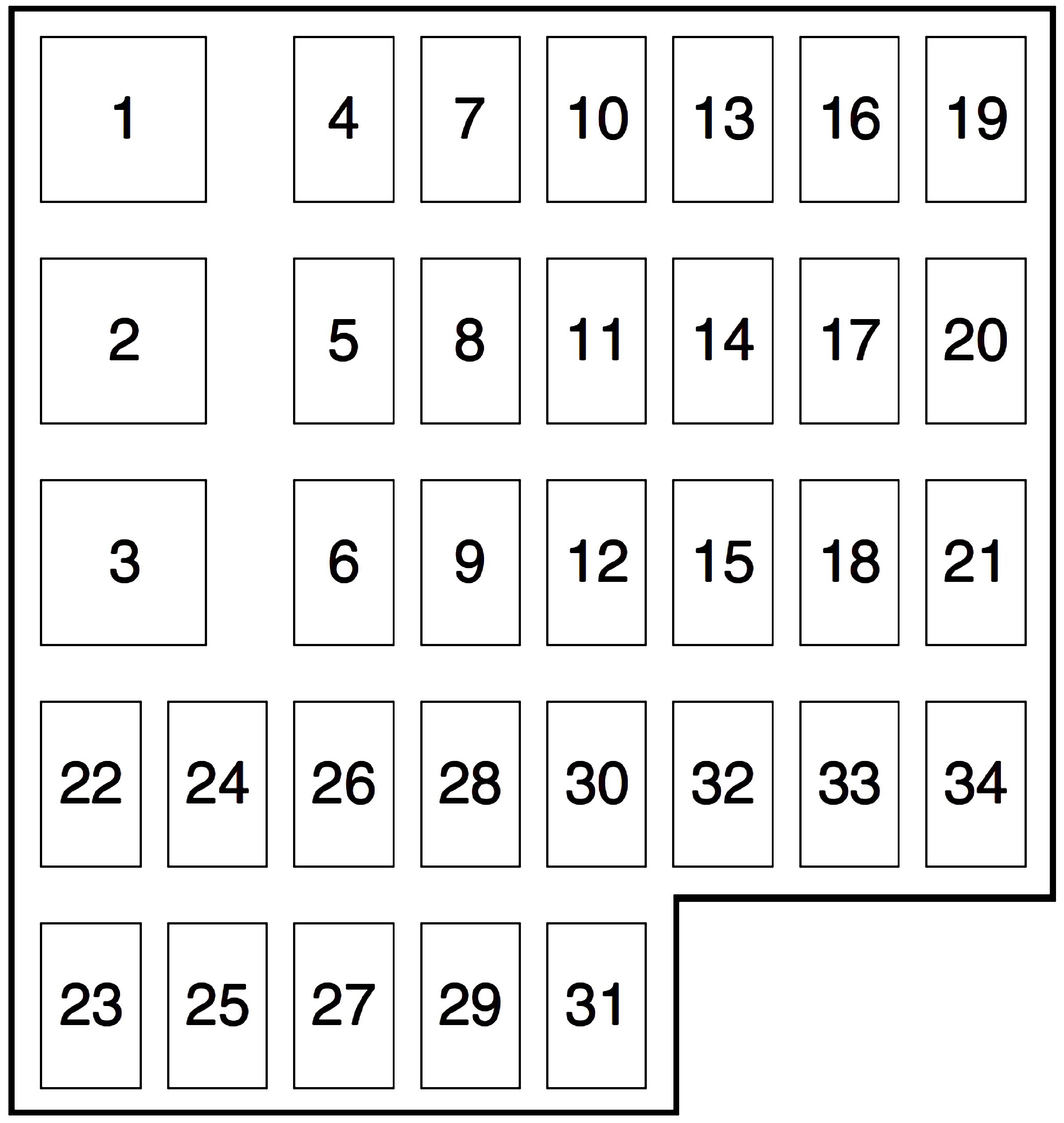

Fuse Block (Interior - Left Side):

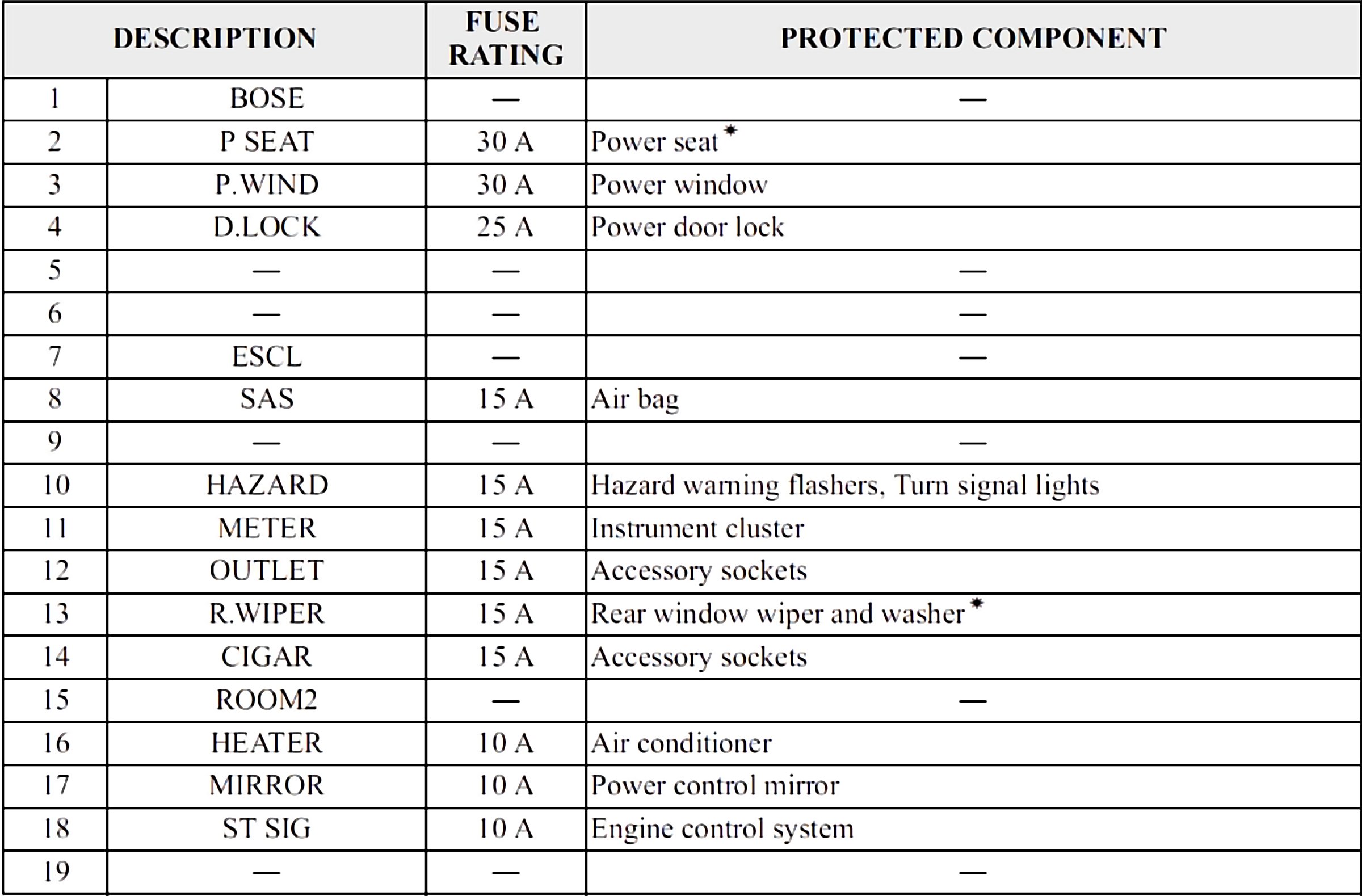

Fuses 1-19:

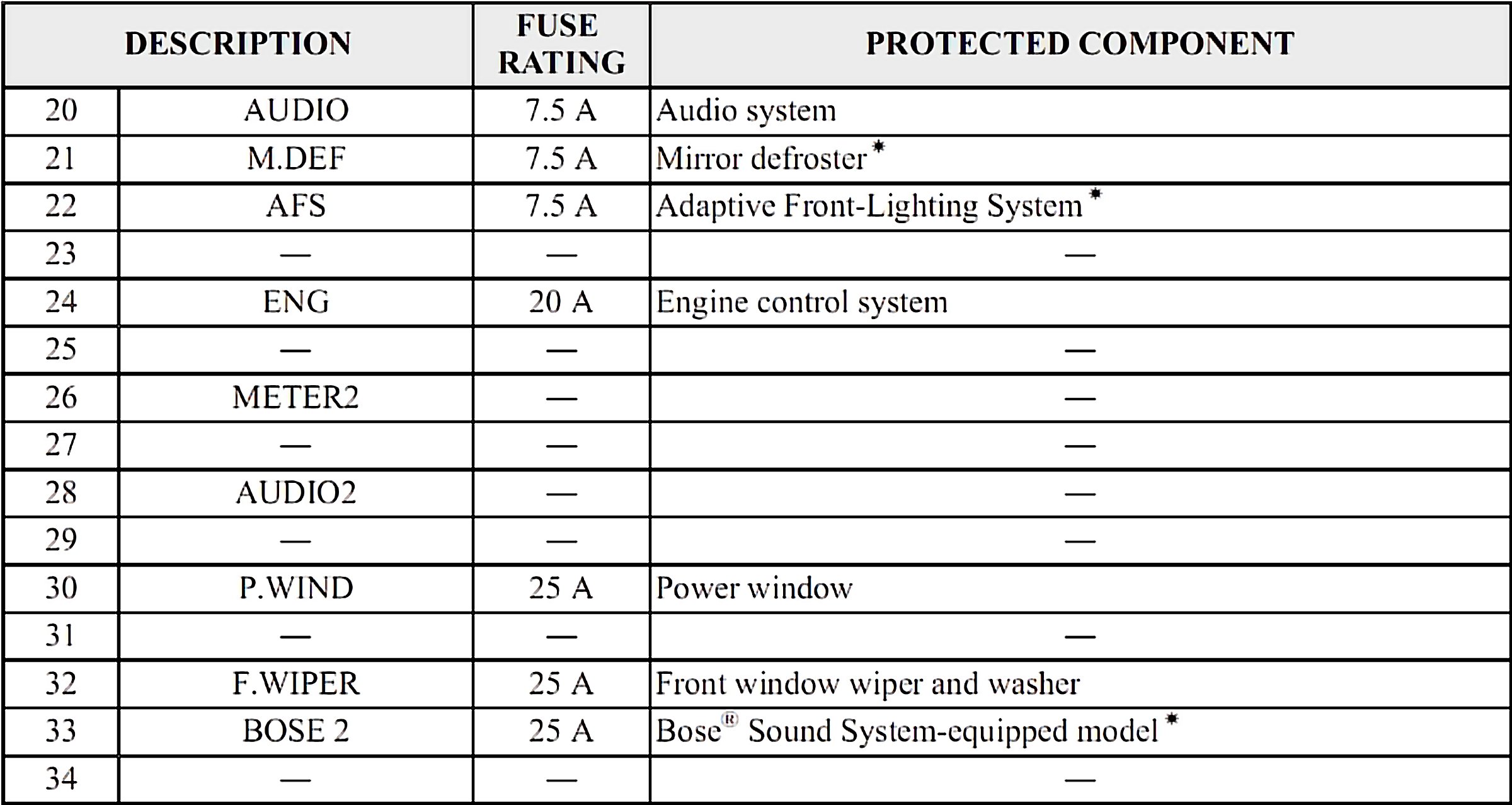

Fuses 20-34:

*: If equipped
