Locks And Openers

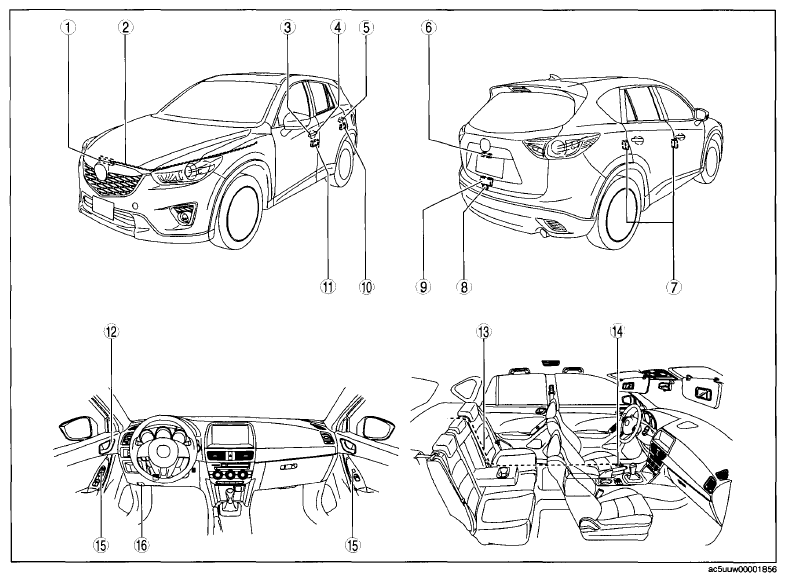

Fig 1: Security And Locks System Components Location (1 Of 2)
G09076965
Fig 2: Security And Locks System Components Location (2 Of 2)
G09076966
