Home >> Mazda >> 2013 >> CX-5 Sport, AWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery System >> Fuel Pump Unit Removal/Installation >> 2WD
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Fuel Pump Unit Removal/Installation: 2WD

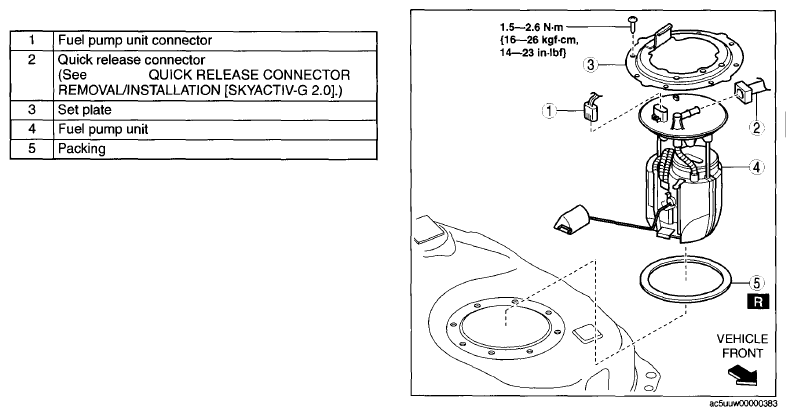

Fig 1: Fuel Pump Unit, Connector, Quick Release Connector, Set Plate And Packing With Torque Specifications (2WD)
G09074935
